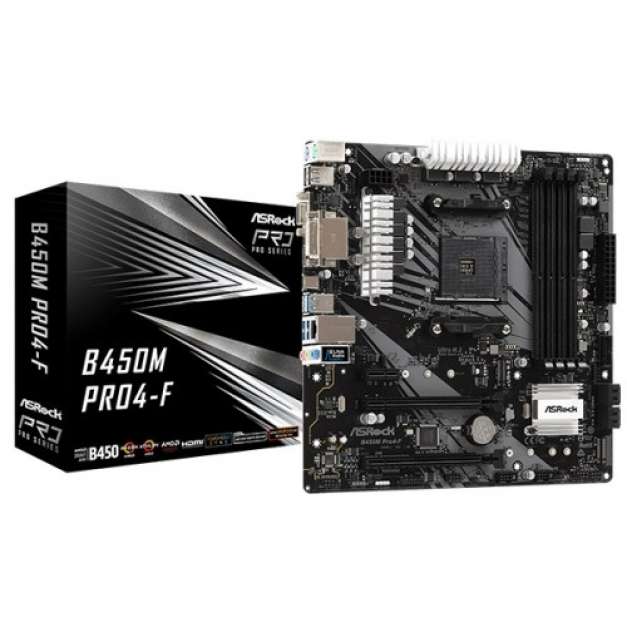

Asrock B450M Pro4-F AMD Motherboard

Coming Soon
Expansion Slots
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) - 1 x PCI Express 2.0 x1 Slot - Supports AMD Quad CrossFireX and CrossFireX
M.2 Socket - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s
Basic Information
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps
Supported CPU - AMD AM4 Socket - Digi Power design - 9 Power Phase design
Chipset AMD Promontory B450
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment
Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
Memory Specifications
Type Dual Channel DDR4 Memory Technology
Slot 4 x DDR4 DIMM Slots
Supported Memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Maximum Memory 64GB
Graphics Specifications
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
Max Shared Memory 16 GB
Warranty
Manufacturing Warranty 03 years
Connector & Ports
HDMI 1 x HDMI Port
D-Sub (s) 1 x D-Sub Port
USB (s) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps
Internal I/O Ports - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module) 1 x TPM Header
DVI-D (s) 1 x DVI-D Port
Display Port (s) 1 x DVI-D Port

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines� these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
