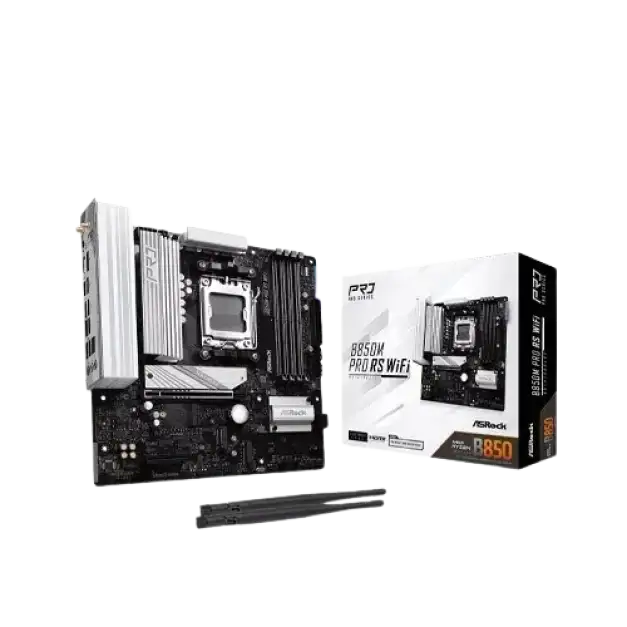

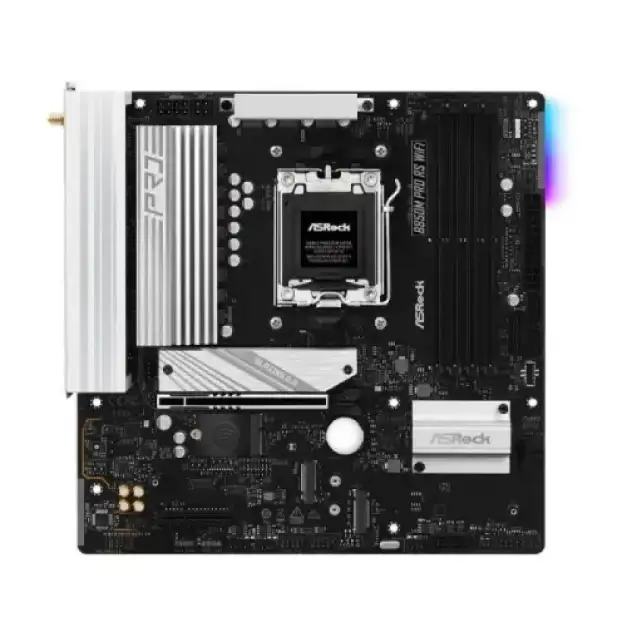

ASRock B850M Pro RS WiFi AM5 mATX Motherboard

PCI	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

M.2 Socket

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Supported CPU

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset

AMD B850

BIOS	256Mb AMI UEFI Legal BIOS with GUI support

Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Type	Dual Channel DDR5 Memory Technology

Slot	4 x DDR5 DIMM Slots

Supported Memory

- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Maximum Memory

256GB

Graphics

Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Manufacturing Warranty

3 Years

Special Features

Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter

Bundled Software

Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash

USB (s)

CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)

LAN Port (s)

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control

Supported Storage

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors

Internal I/O Ports

- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header

Wireless Communication module

- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO

RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

ASRock B850M Pro RS WiFi AM5 mATX Motherboard

The ASROCK B850M PRO RS WIFI AM5 DDR5 Micro-ATX Motherboard is engineered for gamers, creators, and power users who demand performance, stability, and connectivity. Built on the AMD B850 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors with Socket AM5, delivering future-ready computing power. Featuring dual-channel DDR5 memory technology with support for up to 256GB DDR5 ECC/non-ECC un-buffered RAM and speeds beyond 8000+ (OC), this ASRock B850M motherboard ensures lightning-fast multitasking and overclocking potential with XMP and EXPO profiles. Graphics are powered by integrated AMD RDNA architecture, offering HDMI 2.1 and DisplayPort 1.4 outputs with 4K 120Hz HDR support for immersive visuals. Expansion is seamless with a PCIe 5.0 x16 slot, PCIe 4.0 x4 slot, and Blazing Gen5 M.2 storage delivering up to 128 Gb/s bandwidth, alongside multiple Gen4 M.2 sockets and SATA3 connectors with RAID 0/1/10 support. Connectivity is ultra-fast with 2.5G Dragon LAN, Wi-Fi 6E (802.11axe), and Bluetooth 5.2, ensuring smooth online gaming, streaming, and productivity. The ASRock B850M Pro RS WiFi motherboard integrates 7.1 channel HD audio with Nahimic enhancements for crystal-clear sound, while ASRock Polychrome SYNC RGB headers allow full customisation of your build. Designed with 8+2+1 power phase Dr.MOS, pre-installed I/O shield, and smart fan speed controls, it guarantees rock-solid durability and efficient cooling. With USB 3.2 Gen2 Type-C, multiple USB 3.2 Gen1/Gen2 ports, and BIOS Flashback support, updates and troubleshooting are effortless. Bundled with ASRock A-Tuning Utility, Dragon LAN software, and EZ Mode UEFI BIOS, the ASROCK B850M PRO RS WIFI AMD motherboard delivers a perfect balance of performance, reliability, and future-proof features, making it an ideal choice for building a high-performance gaming rig or productivity workstation.

Buy ASRock B850M Pro RS WiFi AM5 mATX Motherboard from Basictech BD

In Bangladesh, you can get original ASRock B850M Pro RS WiFi AM5 mATX Motherboard From Basictech BD.We have a large collection of latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Basictech BD. Shop to get yours at lowest price. The ASRock B850M Pro RS WiFi AM5 mATX Motherboard comes with 3 Years warranty.
