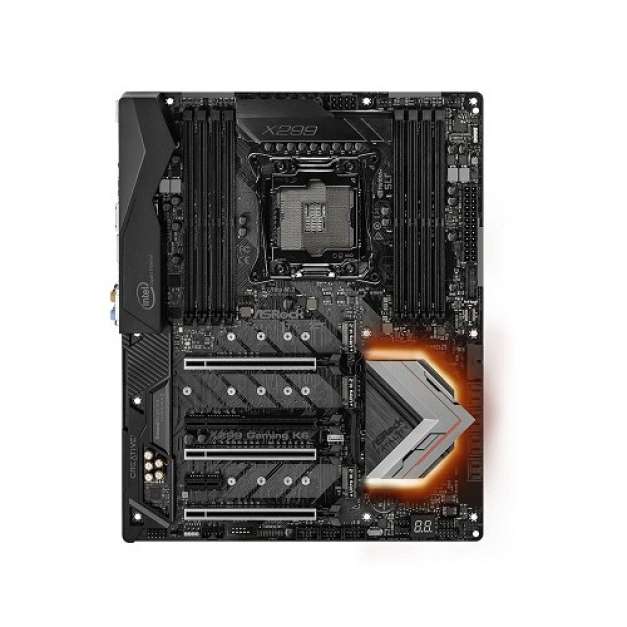

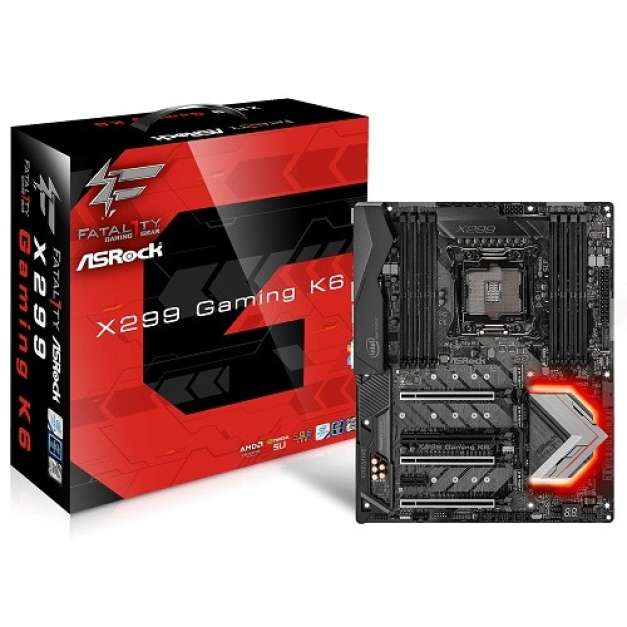

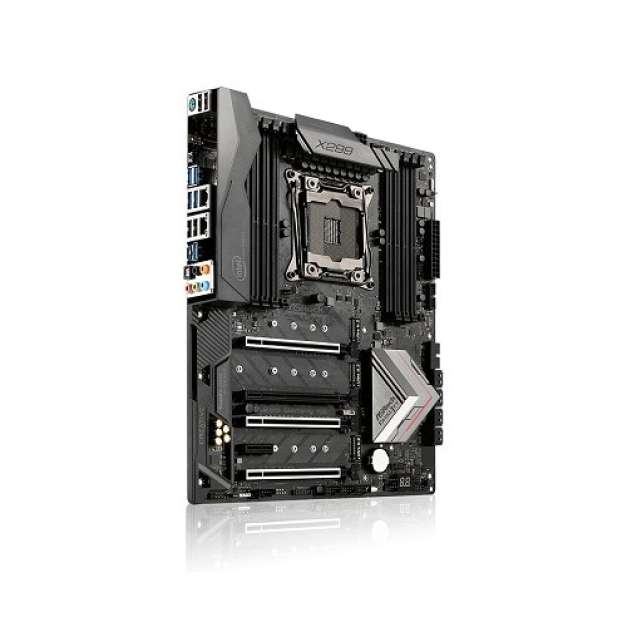

ASRock Motherboard Fatal1ty X299 Gaming K6 Intel ATX

Qty
+ -
Expansion Slots
PCI 4 x PCI Express 3.0 x16 Slots* - 1 x PCI Express 3.0 x1 Slot** - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™*** - Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™*** - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) **If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0. If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x0/x0 or x8/x4/x8/x0. Supports NVMe SSD as boot disks **If PCIE4 slot is occupied, M2_2 slot will support M.2 PCI Express module up to Gen3 x2 (16 Gb/s). ***3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 44 lanes.
Basic Information
Processor Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket - Digi Power design - 11 Power Phase design - Supports Intel® Turbo Boost Max Technology 3.0* - Supports ASRock Hyper BCLK Engine III *Please note that the 4-Core processors only support Intel® Turbo Boost Technology 2.0.
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Front Out port - Individual PCB Layers for R/L Audio Channel - 15μ Gold Audio Connector - Supports Creative Sound Blaster™ Cinema 3
Chipset Intel® X299
BIOS 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD, PEGRCOMP Voltage Multi-adjustment
Memory Specifications
Maximum Memory Quad Channel DDR4 Memory Technology - 8 x DDR4 DIMM Slots - Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports non-ECC RDIMM (Registered DIMM) - Max. capacity of system memory: 128GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots
Warranty
Manufacturing Warranty 03 Years

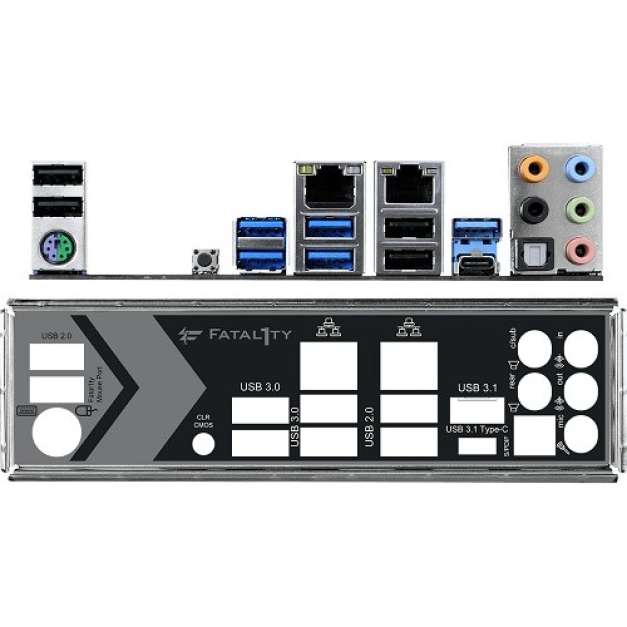

Connector & Ports
LAN Port (s) Gigabit LAN 10/100/1000 Mb/s - 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Dual LAN with Teaming* - Supports Energy Efficient Ethernet 802.3az - Supports PXE *Teaming is supported on Windows® 10 RS2 and above.

ASRock Fatal1ty X299 Gaming K6 Intel ATX Motherboard

  • SRock Super Alloy
  • Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio
  • Supports Intel® Coreâ„¢ X-Series Processor Family for the LGA 2066 Socket
  • 11 Power Phase design, Digi Power
  • Supports DDR4 4400+(OC)
  • 4 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • NVIDIA® 3-Way SLIâ„¢, AMD 3-Way CrossFireXâ„¢
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blasterâ„¢ Cinema 3
  • 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C), 8 USB 3.1 Gen1 (4 Front, 4 Rear)
  • Dual Intel® Gigabit LAN
  • ASRock RGB LED
  • Hyper BCLK Engine III
03 years warranty
