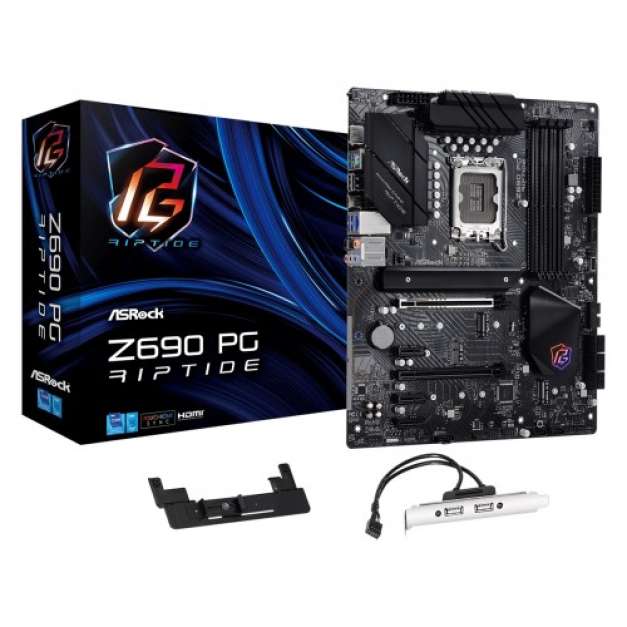

ASRock Z690 PG Riptide 12th Gen ATX Motherborad

Qty
+ -
Expansion Slots
PCI - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire
M.2 Socket - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Basic Information
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - Nahimic Audio
Supported CPU - Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel Z690
BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB
Memory Specifications
Type DDR4
Slot 4 x DDR4 DIMM Slots
Supported Memory - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory 128GB
Graphics Specifications
Graphics - Intel Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Warranty
Manufacturing Warranty 3 years
Connector & Ports
HDMI 1 x HDMI Port
USB (s) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
LAN Port (s) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Supported Storage - 8 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - Nahimic Audio
Internal I/O Ports - 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
TPM (Trusted Platform Module) 1 x SPI TPM Header
Wireless Communication module Supports ECC UDIMM memory modules (operate in non-ECC mode)

ASRock Z690 PG Riptide 12th Gen ATX Motherborad

ASRock Z690 PG Riptide motherboard supports 12th Gen Intel Core Processors (LGA1700), 13 Phase Dr.MOS Power Design, DDR4 4800MHz (OC). This Motherboard featured with 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi, Graphics Output Options: HDMI, Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio, 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4). This ASRock motherboard also has 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 USB 3.2 Gen2x2 Rear Type-C, 2 USB 3.2 Gen2 (Rear), 1 USB 3.2 Gen1 Front Type-C, 6 USB 3.2 Gen1 (2 Rear, 4 Front), Killer E3100 2.5G LAN, Lightning Gaming Ports. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards.

Killer Ethernet E3100

In this motherboard, the Killer E3100 2.5 Gbps Ethernet controller is designed specifically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provide the ultimate networking experience for gaming and multimedia applications.

Nahimic Audio

This motherboard featured comes with via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio, that offers you the most engaging listening experience, vibrant and rich with details.

Lightning Gaming Ports

The ASRock Z690 PG Riptide has Lightning Gaming Ports. These Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high-speed mice/ keyboard with the lower jitter and latency.

POLYCHROME RGB

In this ASRock 12th Gen motherboard, the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects also

This ASRock Z690 PG Riptide motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD. This 12th Gen ASRock motherboard is also capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. The latest ASRock Z690 PG Riptide Motherboard comes with 03 years warranty.
