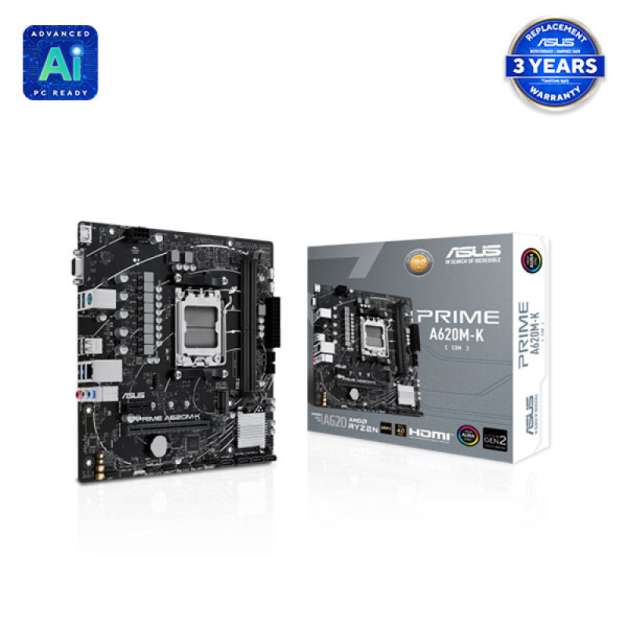

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

PCI	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 1 x PCIe 3.0 x1 slot

M.2 Socket

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Supported CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD A620 Chipset

BIOS	256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)

Type

DDR5

Slot	2 x DIMM slots

Supported Memory

DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

Maximum Memory

Max 96GB

Graphics

1 x VGA port 1 x HDMI port * Graphics specifications may vary between CPU types

Manufacturing Warranty

3 Years Warranty

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers

Bundled Software

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

HDMI	1x HDMI 2.1

USB (s)

Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

LAN Port (s)

1 x Realtek 1Gb Ethernet

Supported Storage

1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports

Audio

3 x Audio jacks

Internal I/O Ports

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

TPM (Trusted Platform Module)

1 x SPI TPM header (14-1pin)

VGA (s)

1 x VGA port

RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

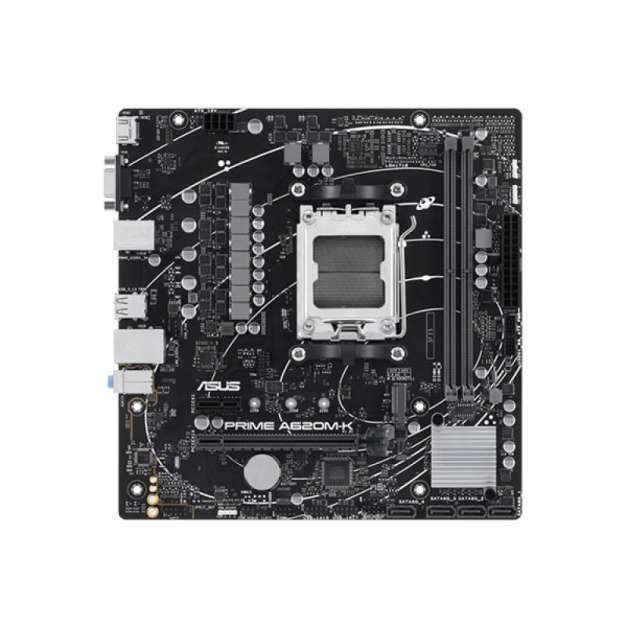

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

The Asus PRIME A620M-K-CSM AM5 mATX Motherboard is a robust and versatile foundation for your next PC build, designed to unleash the full potential of AMD Ryzen 7000-series processors. This Asus motherboard supports the latest DDR5 memory and PCIe 4.0 for both graphics cards and M.2 storage, ensuring ultrafast performance and connectivity. It features a 64Gbps M.2 slot, Realtek 1Gb Ethernet, and multiple USB 3.2 Gen 1 Type-A ports for comprehensive connectivity options. With a durable 2-ounce copper PCB design, ASUS 5X PROTECTION III, SafeSlot Core, and Armoury Crate, it offers enhanced stability, compatibility, and security. The integrated Two-Way AI Noise Cancelation technology ensures crystal-clear communication, while Aura Sync RGB lighting with onboard Addressable Gen 2 headers allows for customizable lighting effects. The Asus PRIME A620M-K-CSM also includes a comprehensive cooling solution with a PCH heatsink and Fan Xpert, making it an ideal choice for smaller builds without compromising on performance or features.

Buy Asus PRIME A620M-K-CSM AM5 mATX Motherboard from Basictech BD

In Bangladesh, you can get original Asus PRIME A620M-K-CSM AM5 mATX Motherboard From Basictech BD. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit Now Basictech BD Shop to get yours at the lowest price. The Asus PRIME A620M-K-CSM AM5 mATX Motherboard Comes with 3 years of warranty.
