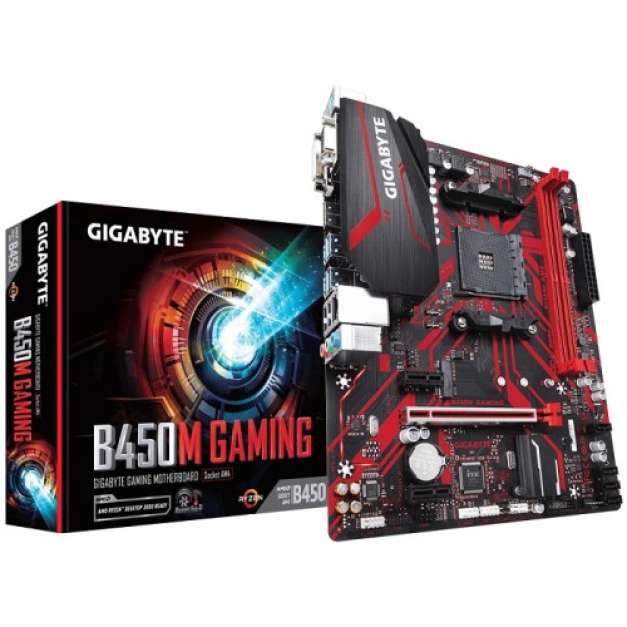

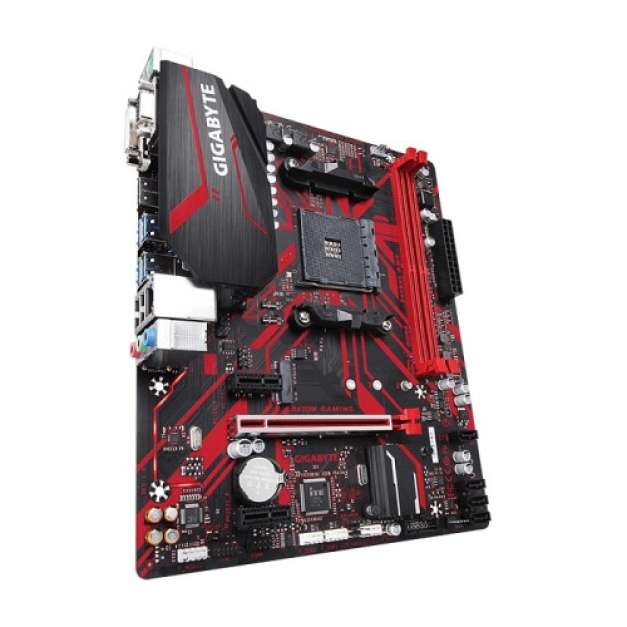

Gigabyte AMD B450M Gaming Motherboard

Qty
+ -
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 Socket 3 connector
Basic Information
Supported CPU AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset AMD B450
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm
Memory Specifications
Type Dual Channel DDR4 Memory Technology
Slot 2 x DDR4 DIMM sockets
Supported Memory Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 32 GB
Graphics Specifications
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory 2 GB
Warranty
Manufacturing Warranty 03 years

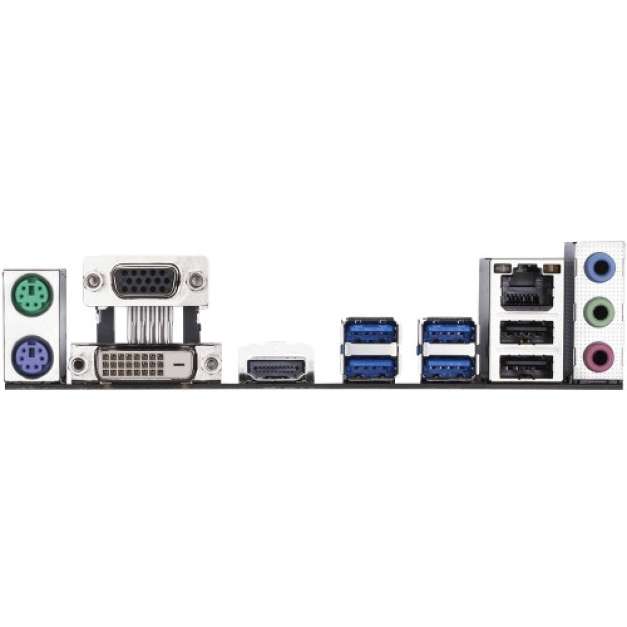

Connector & Ports
HDMI 1 x HDMI port
D-Sub (s) 1 x D-Sub port
USB (s) 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports
LAN Port (s) 1 x RJ-45 port
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
TPM (Trusted Platform Module) 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
DVI-D (s) 1 x DVI-D port

Gigabyte AMD B450M Gaming Motherboard Supports AMD 2nd Generation Ryzenâ„¢/ Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ 1st Generation Ryzenâ„¢ Processors.Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. HDMI, DVI-D, D-sub Ports for Multiple Display.Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support,GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.RGB Fusion supports RGB LED Strips in 7-Colors.High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers. APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
