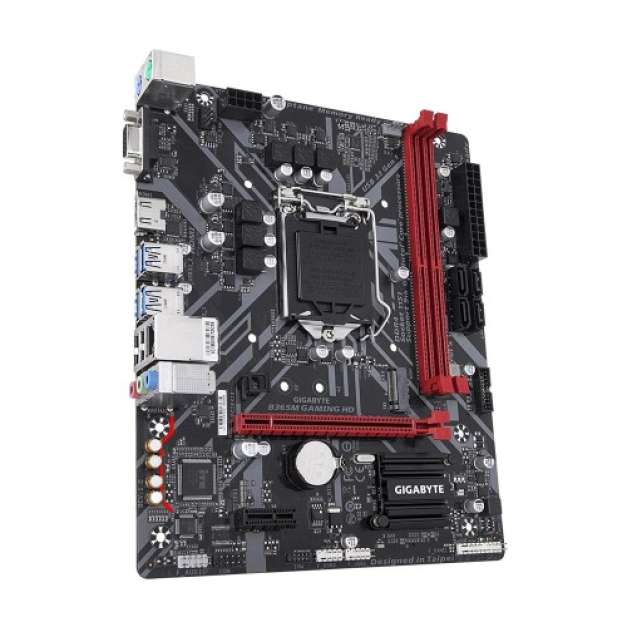

Gigabyte B365M Gaming HD 9th Gen Motherboard

Qty
+ -
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Basic Information
Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
Chipset Intel® B365 Express Chipset
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Memory Specifications
Type Dual channel memory architecture
Slot 2 x DDR4 DIMM
Supported Memory Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
Maximum Memory 32 GB
Graphics Specifications
Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory Maximum shared memory of 1 GB
Warranty
Manufacturing Warranty 03 years
Others
Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
Bundled Software Realtek 8118 Gaming LAN Bandwidth Control Utility
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

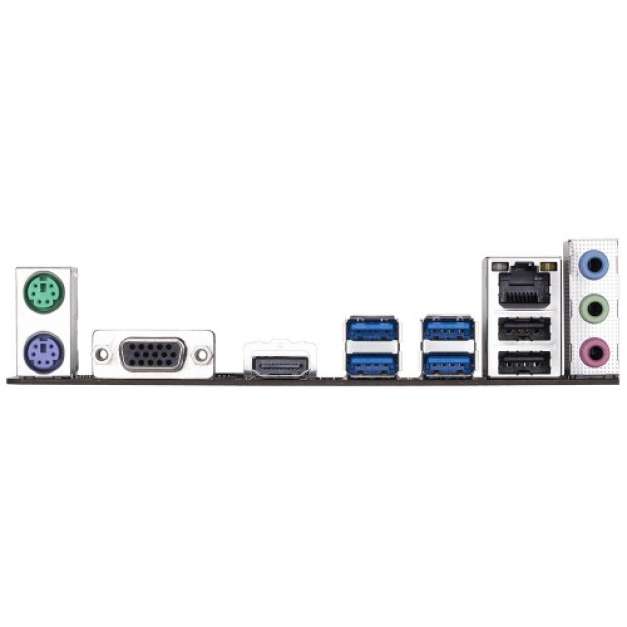

USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory
Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Gigabyte B365M Gaming HD 9th Gen Motherboard

The Gigabyte B365M Gaming Micro ATX is a ultra durable motherboard compatible with Intel 9th and 8th gen core i3, i5 i7 and i9 processor with supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Considering the graphics, it will support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096x2160@30 Hz of HDMI ports. This latest motherboard has the facility of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports and Intel Optane Memory Ready. For extreme level of gaming it has GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2 and Smart Fan 5.

Buy latest Gigabyte 8th gen motherboards at best price in Rangpur, Chattagram, Dhaka & Sylhet. Oder your favorite mainboard for your gaming rig from Star Tech online shop and have the delivery at any place you live in Bangladesh.

Reviews

Reviews are very important to understand a product, there is a lot of information available about the product, but online reviews of this product are not published.
