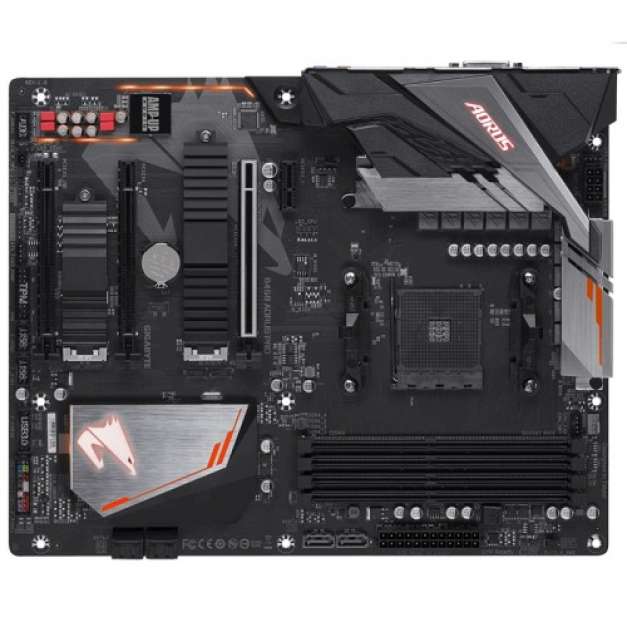

Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard

PCI

1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)

Supported CPU

AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors

Chipset

AMD B450

BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Type	Dual Channel DDR4 Memory Technology

Slot	4 x DDR4 DIMM

Supported Memory

Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

64 GB

Graphics

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Manufacturing Warranty

03 years

HDMI	1 x HDMI port

USB (s)

Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers CPU: 4 x USB 3.1 Gen 1 ports on the back panel

LAN Port (s)

Intel® GbE LAN chip (10/100/1000 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Audio

Realtek® ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Internal I/O Ports

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper

TPM (Trusted Platform Module)

1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)

Gigabyte B450 AORUS PRO ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Dual Ultra-Fast NVMe PCIe Gen3 M.2 with Dual Thermal Guards and 4 PCIe slots. Considering the graphics, it will support AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies. This exclusive motherboard has the facility of USB Type-C™, USB 3.1 Gen 2, Intel® GbE LAN with cFosSpeed Internet Accelerator Software and Realtek® ALC1220-VB codec HD Audio connectivity with . This Hybrid Digital PWM board is Intel® GbE LAN with cFosSpeed & CEC 2019 ready.

Purchase Gigabyte B450 AORUS PRO board with 3 years of warranty facility at best price from in Dhaka, Rangpur, Chattagram, Khulna & Sylhet. Order latest AMD board from Star Tech’s online store and have the delivery at any location in Bangladesh.
