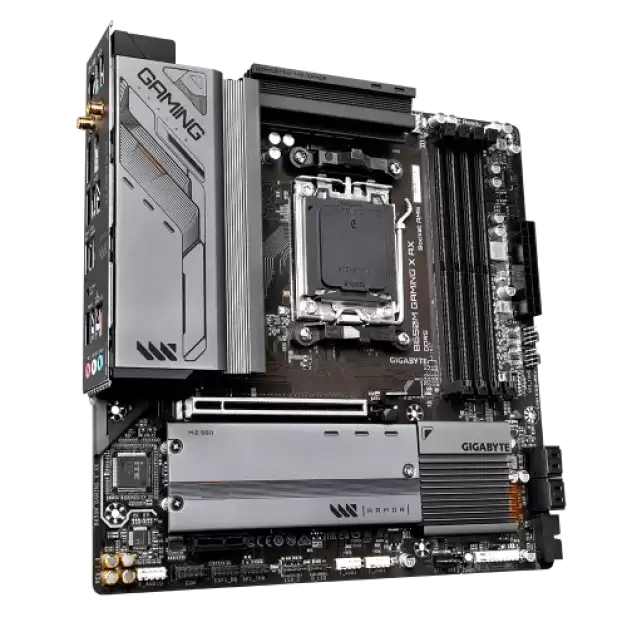

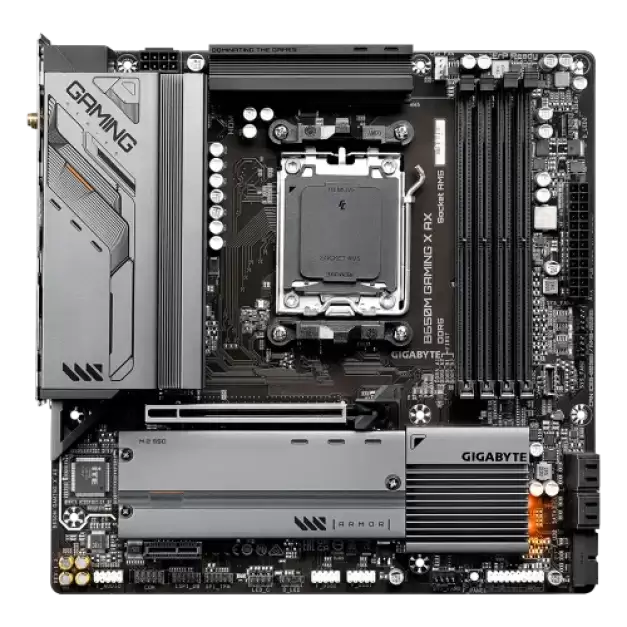

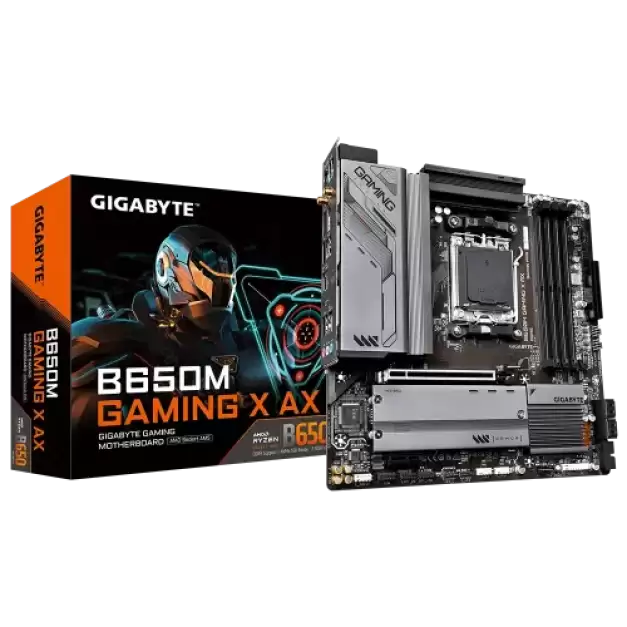

GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard

Qty
+ -
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Basic Information
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Memory Specifications
Type DDR5
Slot 4 DIMMs
Supported Memory 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
Maximum Memory 192GB
Graphics Specifications
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Warranty
Manufacturing Warranty 3 Years
Others
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Connector & Ports
HDMI 1x HDMI
USB (s) CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back pane Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header (D_LED1) 1 x addressable LED strip header (D_LED2) 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Display Port (s) 2 x DisplayPorts
Wireless Communication module Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard

The GIGABYTE B650M GAMING X AX Motherboard is a powerhouse designed to cater to the demands of gaming enthusiasts and professionals seeking top-tier performance and reliability. It seamlessly supports the latest Ryzen 8000/7000 Series Processors with its Socket AM5, making it a future-proof cornerstone for any high-performance gaming setup. The motherboard distinguishes itself with support for up to 192GB of DDR5 RAM across four slots, capable of reaching speeds up to 8000MHz when overclocked. This vast and speedy memory support is further enhanced by compatibility with AMD EXPO and Intel XMP, ensuring easy and stable overclocking for peak performance. Strong visual output is offered by two Display Ports and one HDMI connector, offering a variety of high-definition connectivity choices for immersive gaming or multiple monitor configurations. The motherboard's core technology is a Direct 6+2+1 Phases Digital VRM Solution, which has been painstakingly designed to provide reliable and effective power distribution to crucial system components under a range of load scenarios. The dual-channel DDR5 architecture perfectly complements the high-performance CPUs it supports by increasing system speed and bandwidth. including two PCIe 4.0 x4 M.2 connections for super-fast storage, which drastically cuts down on game load times and guarantees quick data access. Additionally, GIGABYTE has given thermal management a lot of thought. To maintain ideal temperatures and avoid performance throttling during demanding gaming sessions or high workload activities, the company has included an M.2 Thermal Guard coupled with an innovative thermal design. The EZ-Latch design on the PCIe x16 slot and M.2 connections, which enables rapid and tool-free component installation or upgrades, is proof that ease of use is a top priority. With both 2.5GbE LAN and Wi-Fi 6E 802.11ax available, the networking capabilities are state-of-the-art, guaranteeing dependable and fast internet connections whether connected cable or wirelessly. A variety of connectors, such as two Display connectors, two USB-C 10Gb/s, and HDMI, enable extended connectivity and can support a large number of external devices and peripherals. With its FAN STOP feature for silent operation under low loads, Smart Fan 6 technology intelligently handles cooling by utilizing numerous temperature sensors and hybrid fan headers to maximize cooling efficiency and noise levels. Moreover, BIOS upgrades are made easier by the motherboard's Q-Flash Plus function, which streamlines the upgrading and troubleshooting procedure by removing the need to install the CPU, RAM, or graphics card. For those who want nothing less than the finest, the GIGABYTE B650M GAMING X AX Motherboard delivers an amazing combination of performance, expandability, and cutting-edge features. It seems like the perfect option for creating an ultra-high-end gaming PC that defies convention.

Buy GIGABYTE B650M GAMING X AX DDR5 AM5 Motherboard from Basictech BD

In Bangladesh, you can get original GIGABYTE B650M S2H AM5 Micro-ATX Motherboard From Basictech BD. We have a large collection of the latest GIGABYTE Motherboard  to purchase for your Desktop PC. Order Online Or Visit Basictech BD Shop to get yours at the lowest price. The GIGABYTE B650M GAMING X AX Motherboard comes with 3 years of warranty.
