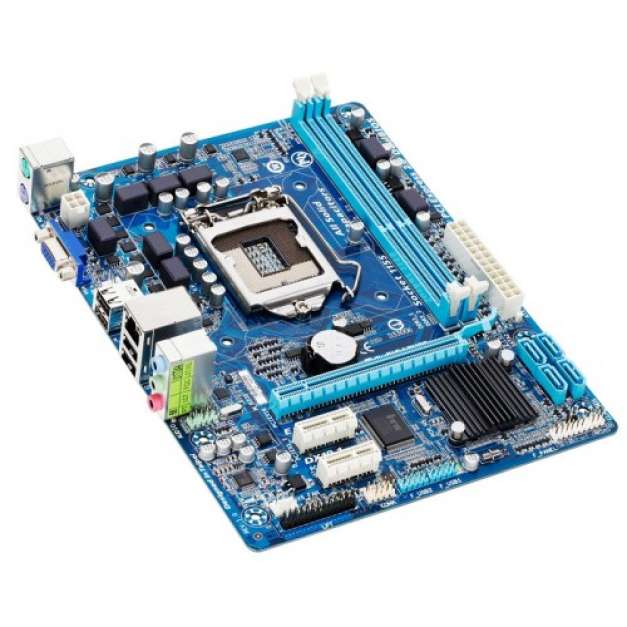

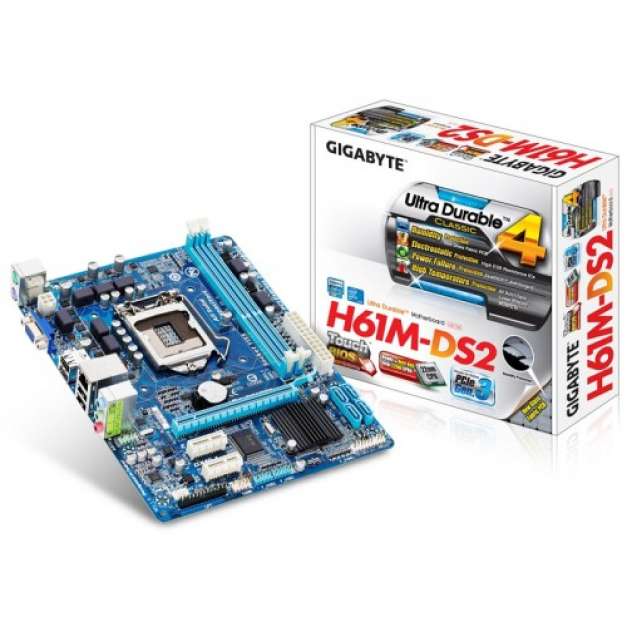

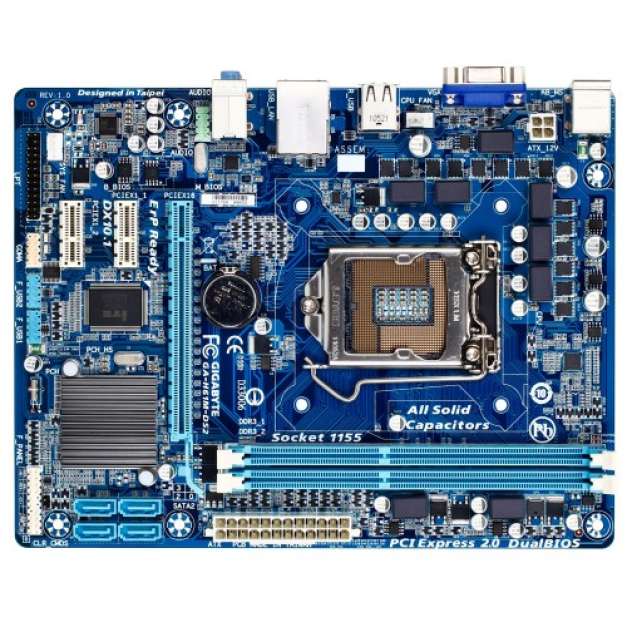

Gigabyte GA-H61M-DS2 Motherboard

Processor

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package L3 cache varies with CPU

Audio

Realtek ALC887 audio codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Chipset

Intel® H61 Express Chipset

Maximum Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Dual channel memory architecture Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules

Manufacturing Warranty

3 Years

LAN Port (s)

1 x Atheros GbE LAN chip (10/100/1000 Mbit)

Gigabyte GA-H61M-DS2 Motherboard

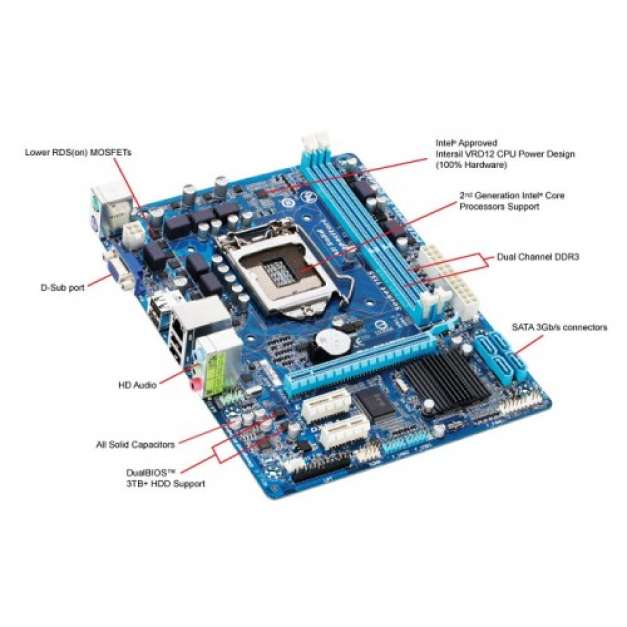

• All new design of Ultra Durable 4 classic

• Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Coreâ„¢ CPUs (LGA1155 socket)

• Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch

• Supports 3rd generation PCI-Express interface

• Industry's Leading All Solid Capacitor Design

• Touch BIOSâ„¢ delivers No Need for Reboot to more easily modify BIOS settings

• Enhanced Intel HD Graphics 2000/3000 integrated with the processor

• Innovative Smart 6 technology for smarter PC management

• DualBIOSâ„¢ protection with 3TB+ HDD boot up capability

03 years warranty
