Gigabyte GA-H61M-S DDR3 Micro ATX Motherboard

PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

M.2 Socket

No

Supported CPU

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package

Chipset

Intel H61 Express Chipset

BIOS	1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Form Factor

Micro ATX Form Factor; 19.0cm x 17.0cm

Type	Dual channel memory architecture

Slot	2 x 1.5V DDR3 DIMM sockets

Supported Memory

Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

16 GB

Max Shared Memory

1 GB

Manufacturing Warranty

03 Years

HDMI

No

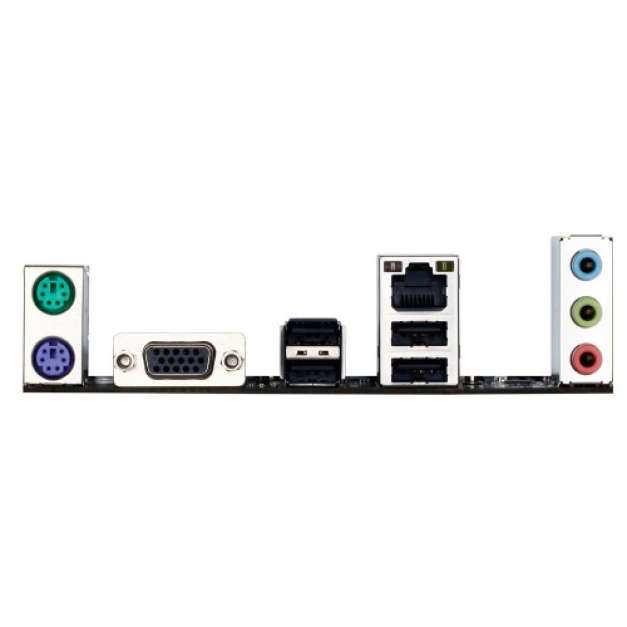

D-Sub (s)

1 x D-Sub port

USB (s)

4 x USB 2.0/1.1 headers

LAN Port (s)

1 x RJ-45 port

Supported Storage

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

Audio

3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Ports

1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper

Gigabyte GA-H61M-S DDR3 Micro ATX Motherboard has the compatibility with Supports 3rd Gen Intel 22nm CPUs and 2nd Gen, Intel Core CPUs (LGA1155 socket). This board also Humidity Protection PCB design. Electrostatic Protection and Power Failure Protection design. Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch.Supports 3rd generation PCI-Express interface. Enhanced Intel HD Graphics 2000/3000 integrated with the processor.
