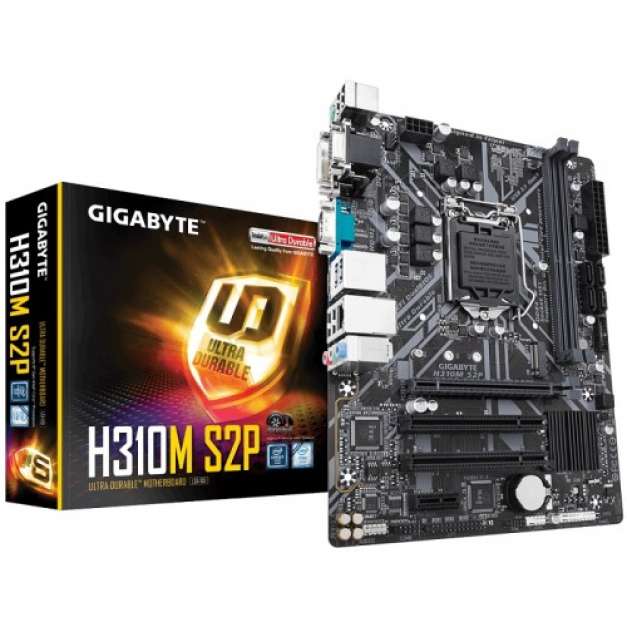

Gigabyte H310M S2P 8th Gen Micro ATX Motherboard

PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots

M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

Supported CPU

Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support L3 cache varies with CPU

Chipset

Intel® H310 Express Chipset

BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 24.4cm x 18.5cm

Type

DDR4

Slot	2 x DIMM sockets

Supported Memory

Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

Maximum Memory

32 GB

Graphics

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.

Max Shared Memory

1 GB

Manufacturing Warranty

03 Years

HDMI	1 x HDMI port

USB (s)

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Realtek® GbE LAN chip (10/100/1000 Mbit)

Supported Storage

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors

Audio

Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Internal I/O Ports

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

TPM (Trusted Platform Module)

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Gigabyte H310M S2P 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has dual channel DDR4 maximum 32GB memory and it has the capability of Ultra-Fast M.2 with PCIe Gen2 X2 & SATA and USB 3.1 Gen 1 interface. If we consider the graphics of this Anti-Sulfur Resistors Design board supports Intel HD graphics having the maximum resolution of 4096x2160@30 Hz for HDMI and 1920x1200@60 Hz for D-Sub & DVI-D port. This High Quality  board has 2 x PCIe & 2 x PCI slots, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, GIGABYTE UEFI DualBIOSâ„¢  and CEC 2019 Ready.

Gigabyte H310M S2P latest 8th gen mainboard with Intel H310 Express chipset is a great choice for your desktop setup and have the best price in Chattagram, Rangpur, Dhaka, Khulna & Sylhet. Order your PC components from Star Tech online shop and have the delivery at any place in Bangladesh.
