GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard

PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Audio

Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Supported CPU

LGA1200 package: 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU

Chipset

Intel H470 Express Chipset

BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm

Type

DDR4

Slot

2 x DIMM

Supported Memory

11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

64 GB (32 GB single DIMM capacity)

Graphics

Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * The D-Sub port is only available with the 10th Generation processors. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.

Manufacturing Warranty

03 Years

Special Features

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version) LAN bandwidth management software

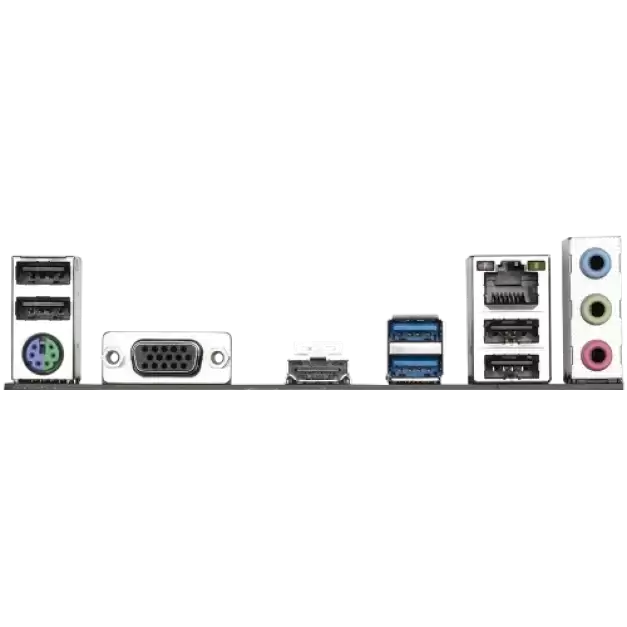

HDMI

1 x HDMI

D-Sub (s)

1 x D-Sub

USB (s)

Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Realtek GbE LAN chip (1 Gbps/100 Mbps)

Supported Storage

Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready

Audio

3 x audio jacks

Internal I/O Ports

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper

TPM (Trusted Platform Module)

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

RAID	Support for RAID 0, RAID 1, RAID 5, and RAID 10

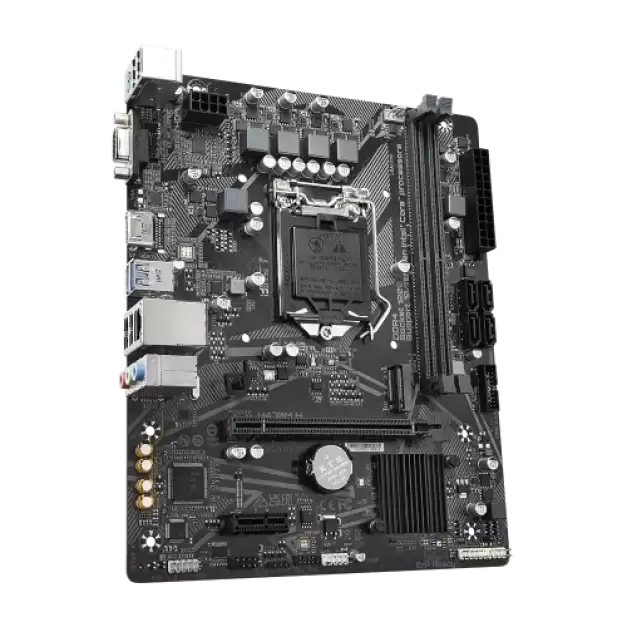

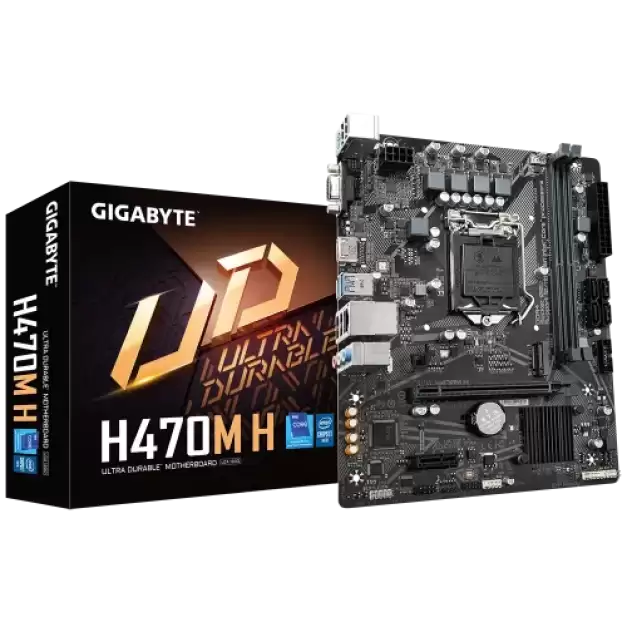

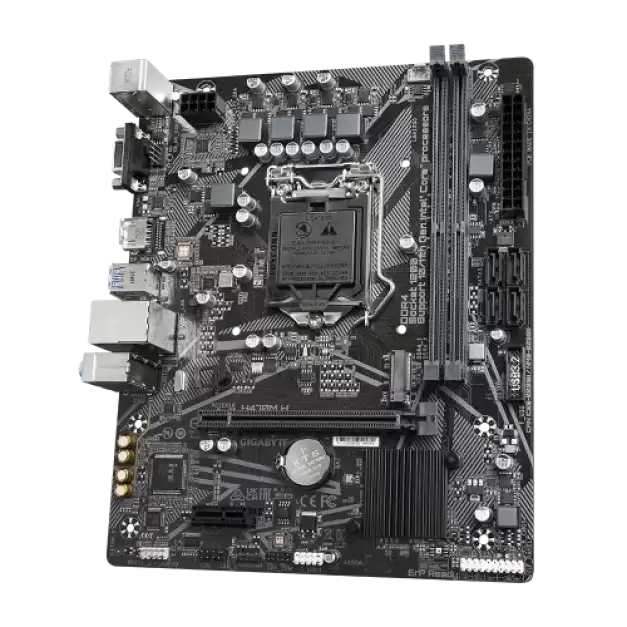

GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard

The GIGABYTE H470M H Micro ATX Motherboard has Intel Ultra Durable with GbE LAN, Anti-Sulfur Resistor, and Smart Fan 5. It supports 11th/10th Generation Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, and 2 DIMMs. 8-Channel HD Audio with High-Quality Audio Capacitors This Motherboard has NVMe PCIe Gen3 x4 2280 M.2 Connector and GbE LAN with Bandwidth Management. Smart Fan 5 has Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP. GIGABYTE APP Center, Anti-Sulfur Resistor Design, Simple and Easy to Use GbE LAN includes a network bandwidth management program that helps to lower network latency and maintain low ping times to provide improved responsiveness in busy LAN scenarios.

Buy GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard from the best Motherboard Shop in BD: Basictech Bd

In Bangladesh, you can get the original GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard From Basictech Tech BD. We have a large collection of the latest Gigabyte Motherboard to purchase for your Desktop Pc. Order Online Or Visit Now Basictech Bd Shop to get yours at the lowest price. The GIGABYTE H470M H Motherboard comes with 3 Years of warranty.
