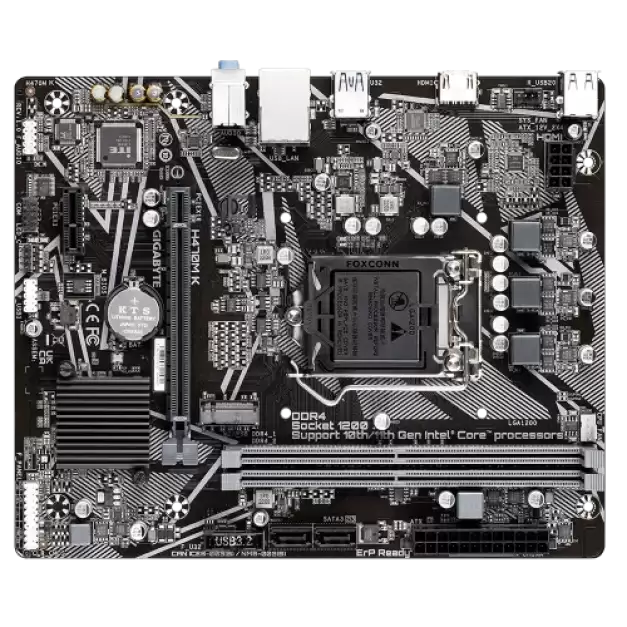

GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard

PCI	1 x PCI Express x16 slot: Supporting PCIe 3.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

M.2 Socket

1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD

Audio

Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Supported CPU

LGA1200 package: 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU

Chipset

Intel H470 Express Chipset

BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm

Type

DDR4

Slot

2 x DIMM

Supported Memory

11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Maximum Memory

64GB (32 GB single DIMM capacity)

Manufacturing Warranty

03 Years

Special Features

Support for APP Center @BIOS Ambient LED EasyTune ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install

HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

USB (s)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Realtek GbE LAN chip (1 Gbps/100 Mbps)

Supported Storage

1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors Intel Optane Memory Ready

Audio

1 x front panel audio header

Internal I/O Ports

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper

RAID	Support for RAID 0, RAID 1, and RAID 5

GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard

The GIGABYTE H470M K Micro ATX Motherboard has Intel Ultra Durable with GbE LAN, Anti-Sulfur Resistor, and Smart Fan 5. It supports 11th/10th Generation Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, and 2 DIMMs. 8-Channel HD Audio with High-Quality Audio Capacitors This Motherboard has NVMe PCIe Gen3 x4 2280 M.2 Connector and GbE LAN with Bandwidth Management. Smart Fan 5 has Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP. GIGABYTE APP Center, Anti-Sulfur Resistor Design, Simple and Easy to Use GbE LAN includes a network bandwidth management program that helps to lower network latency and maintain low ping times to provide improved responsiveness in busy LAN scenarios.

Buy GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard from the best Motherboard Shop in BD: Star Tech

In Bangladesh, you can get the original

GIGABYTE H470M K DDR4 Intel 10th and 11th Gen Micro ATX Motherboard

From Star Tech. We have a large collection of the latest Gigabyte Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest BASIC TECH Shop to get yours at the lowest price. The GIGABYTE H470M K DDR4 Micro ATX Motherboard comes with 3 Years of warranty.
