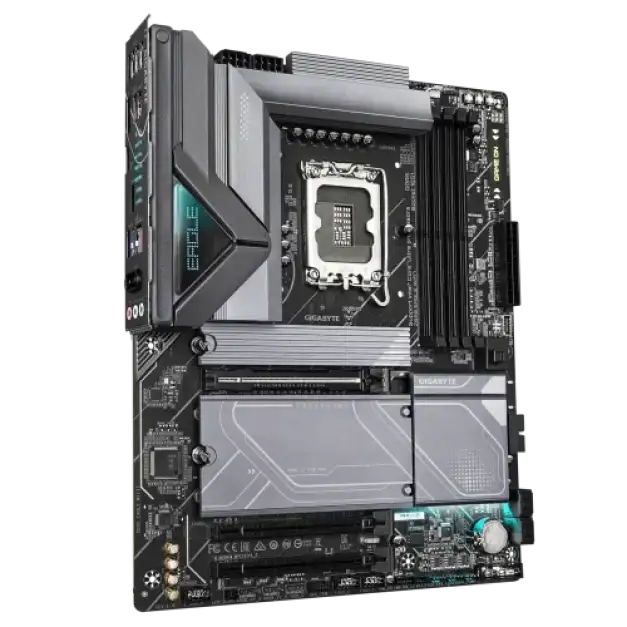

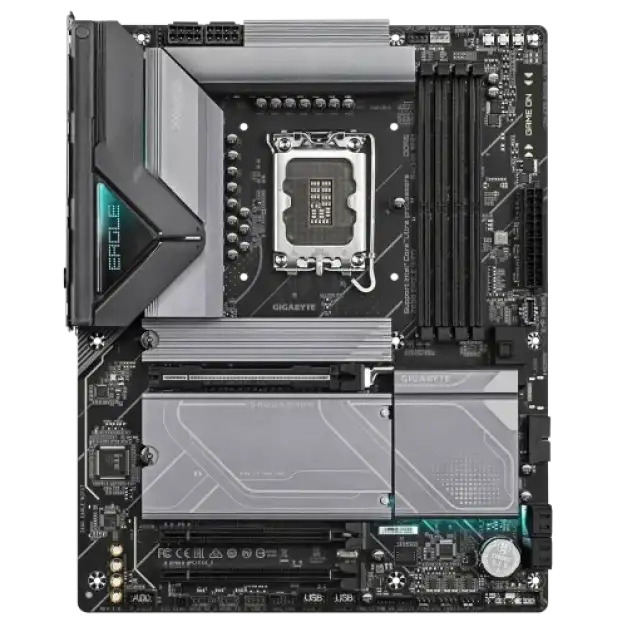

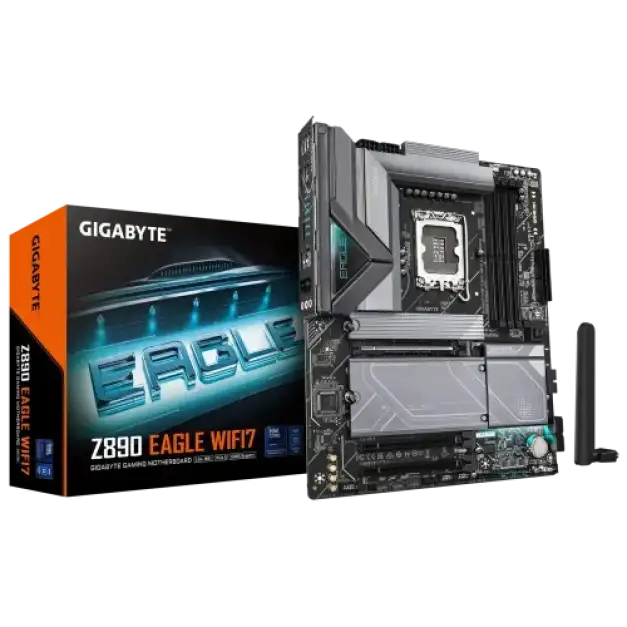

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

PCI

CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)

M.2 Socket

CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

Audio

Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Supported CPU

Intel Core Ultra Processors(Series 2)

Chipset

Intel Z890 Chipset

BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Type

DDR5

Slot

4 x DIMM

Supported Memory

Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

Maximum Memory

256GB (64 GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.)

Manufacturing Warranty

3 Year Warranty

Special Features

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version) LAN bandwidth management software

LAN Port (s)

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Supported Storage

CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors

Audio

1 x front panel audio header 3 x audio jacks

Internal I/O Ports

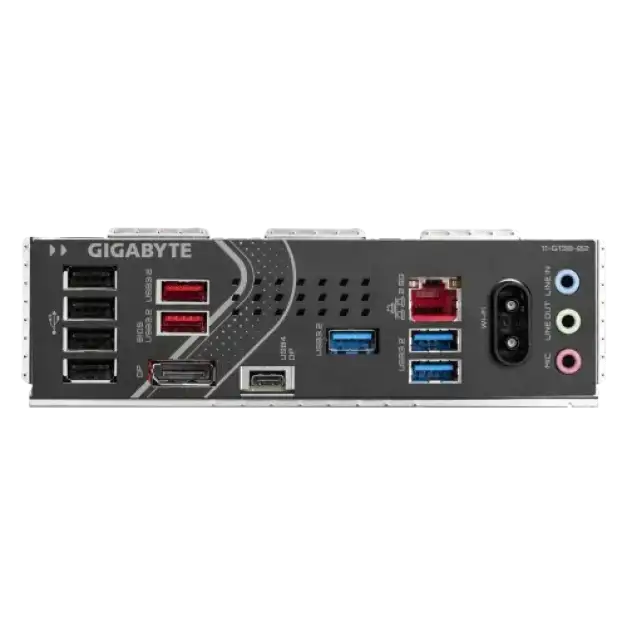

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks

TPM (Trusted Platform Module)

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Display Port (s)

- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version

Wireless Communication module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard

RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

The Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is designed to elevate your PC build with cutting-edge technology, featuring the latest LGA 1851 socket for Intel Arrow Lake-S processors. This Gigabyte motherboard supports DDR5 RAM, offering exceptional memory performance and faster data transfer rates, ensuring your system can handle the most demanding applications with ease. With four M.2 slots, including one PCIe 5.0 x4 slot, it provides ultra-fast storage solutions to keep your system running smoothly and efficiently. The Gigabyte motherboard also boasts Wi-Fi 7 and 2.5GbE LAN for seamless, high-speed networking, allowing you to enjoy lag-free online gaming and rapid file transfers. Enhanced thermal solutions like VRM Thermal Armor and M.2 Thermal Guard ensure your system stays cool under heavy loads, preventing overheating and maintaining optimal performance.Additionally, the motherboard offers USB4 Type-C with DP-Alt mode and DisplayPort for versatile connectivity options, making it easy to connect a wide range of peripherals and displays. High-resolution audio is delivered through integrated ALC1220 and WIMA audiophile-grade capacitors, providing crystal-clear sound quality for an immersive audio experience. Designed with DIY-friendly features like EZ-Latch Plus and EZ-Latch Click for quick, tool-less installation of PCIe and M.2 slots, this Gigabyte motherboard simplifies the building process, making it accessible even for those new to PC building. Whether you're a gamer, content creator, or tech enthusiast, the Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is the perfect choice for those who demand the best in performance, connectivity, and reliability.

Buy Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard from Basictech BD

In Bangladesh, you can get original Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard From Basictech BD. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop. Order Online Or Visit Basictech BD Shop to get yours at lowest price. The Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard comes with a 3-year Warranty.
