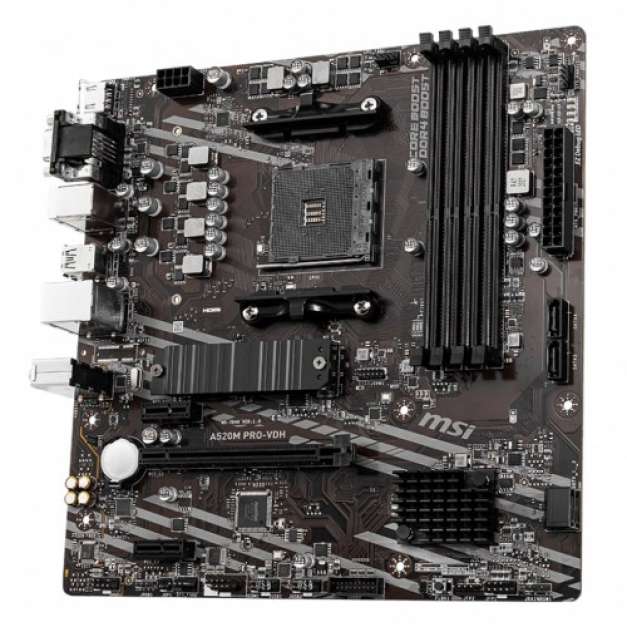

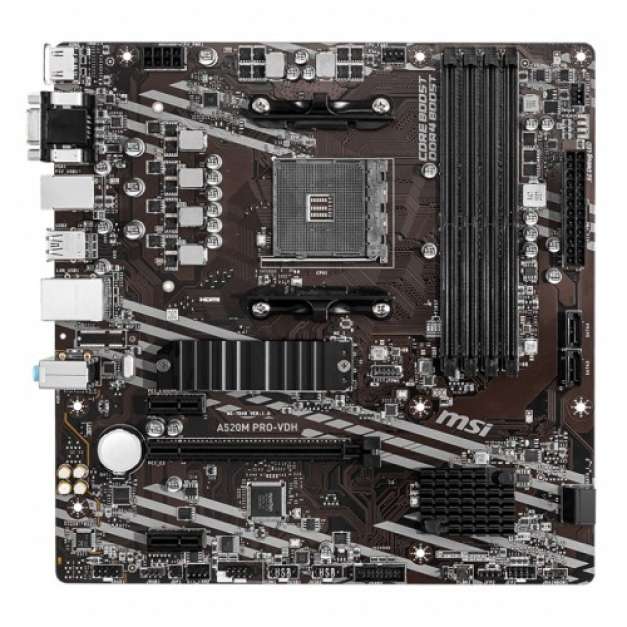

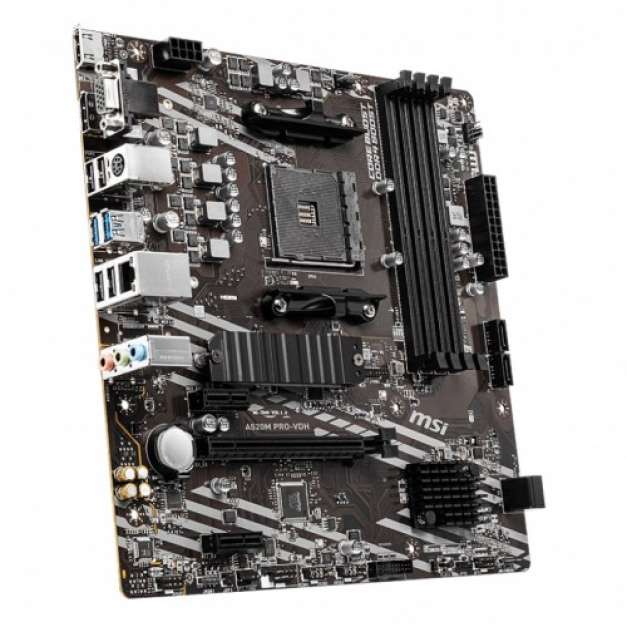

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

Qty
+ -
Expansion Slots
PCI 2x PCIe 3.0 x16 slots 1x PCIe 3.0 x1 slot
M.2 Socket 1x M.2 slot (Key M) (from AMD Processor)
Basic Information
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
Supported CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD A520 Chipset
Form Factor mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Memory Specifications
Type Dual-channel memory architecture
Slot 4x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory 128GB
Graphics Specifications
Graphics 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Max Shared Memory 16GB
Warranty
Manufacturing Warranty 03 Years Warranty

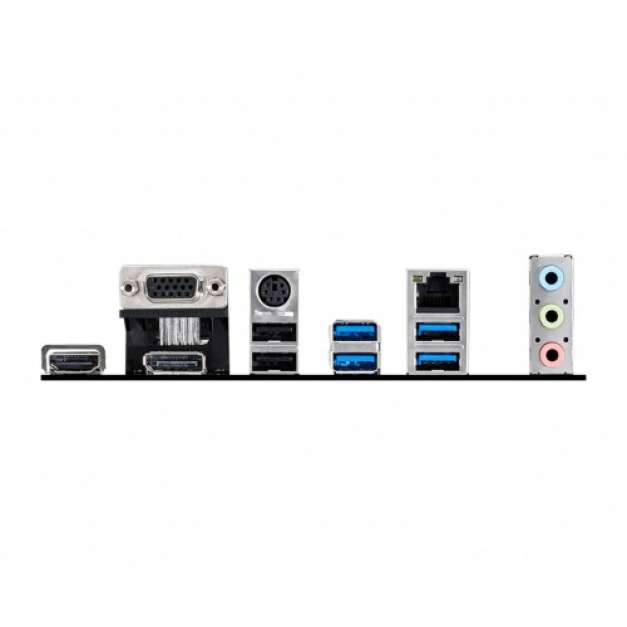

Connector & Ports
HDMI 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
USB (s) AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.01 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 1x Flash BIOS button
TPM (Trusted Platform Module) 1x TPM module connector
VGA (s) 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Display Port (s) 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. It supports DDR4 Memory, up to 4400(OC) MHz. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center - A brand new software that integrates all MSI exclusive tools with a user-friendly user interface. It has 3 years of warranty.

Reviews

Reviews are very important to understand a product, there is a lot of information available about the product, but online reviews of this product are not published.

Related Products

MSI A320M-A Pro Max AMD Motherboard

৳6,400.00 ৳6,620.00

Loading... Loading...

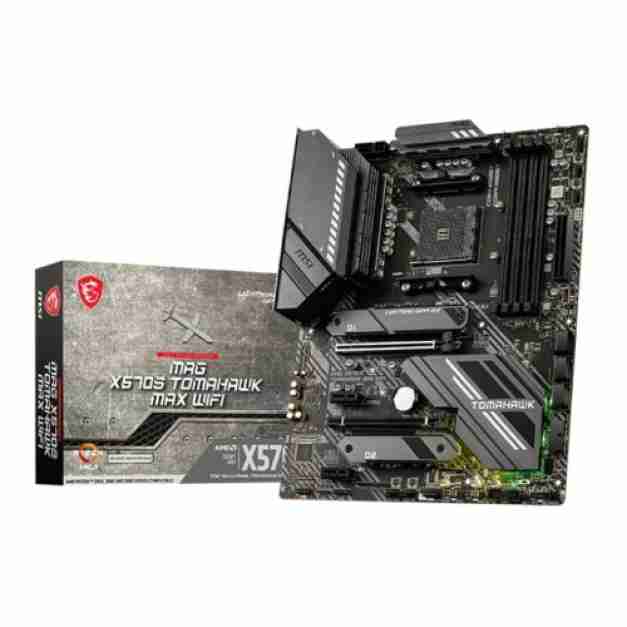

MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

৳28,800.00 ৳30,000.00

Loading... Loading...

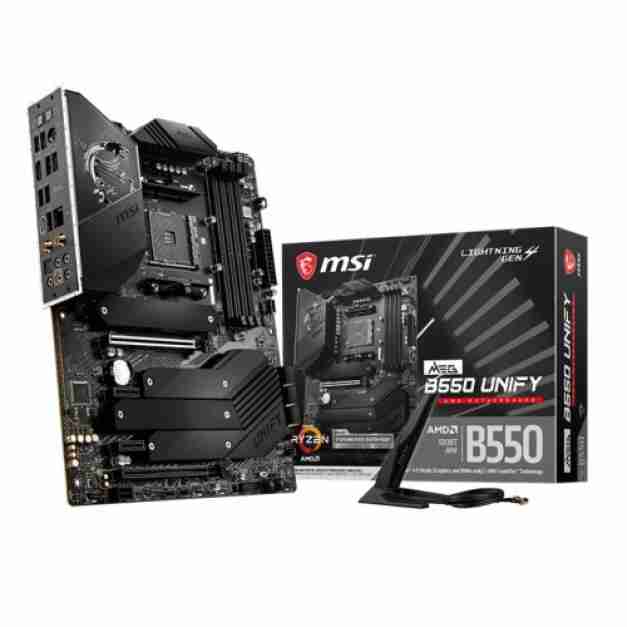

MSI MEG B550 UNIFY AM4 ATX AMD Motherboard

৳28,400.00 ৳30,710.00

Loading... Loading...

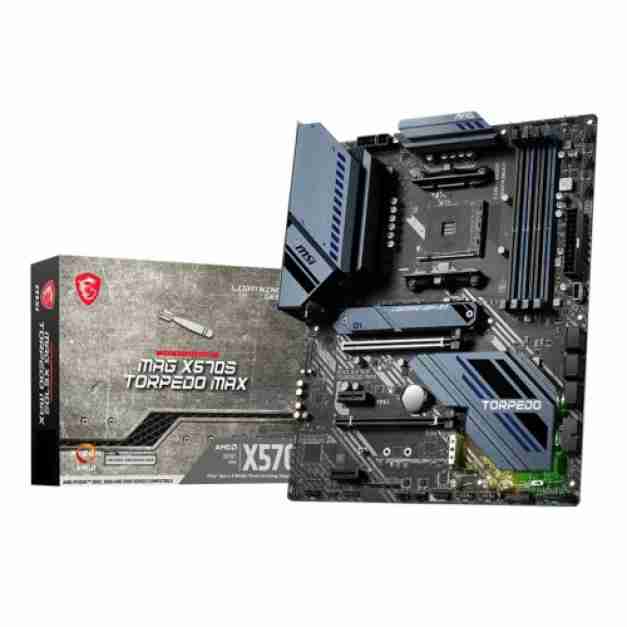

MSI MAG X570S TORPEDO MAX AMD AM4 ATX Motherboard

৳29,300.00 ৳30,500.00

Loading... Loading...

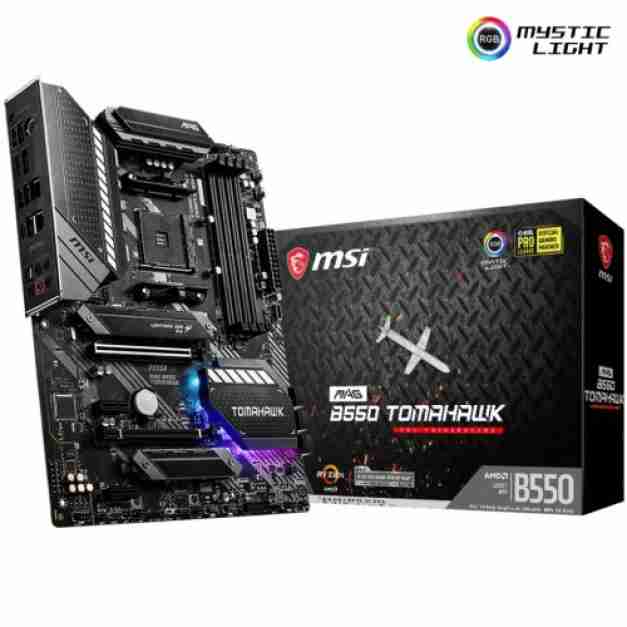

MSI MAG B550 Tomahawk AMD ATX Motherboard

৳24,300.00 ৳25,000.00

Loading... Loading...

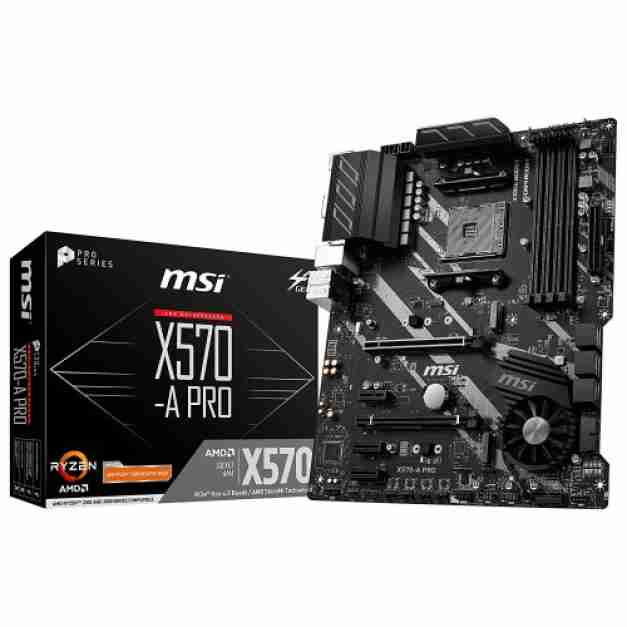

MSI X570-A Pro DDR4 AMD AM4 Socket Motherboard
