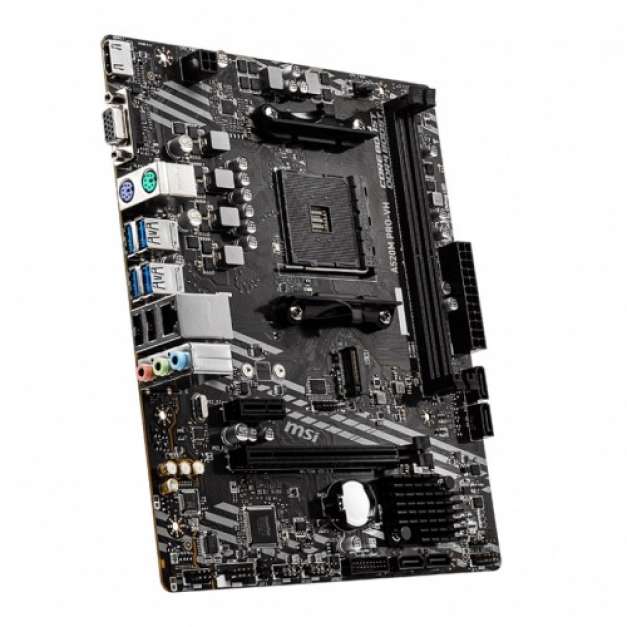

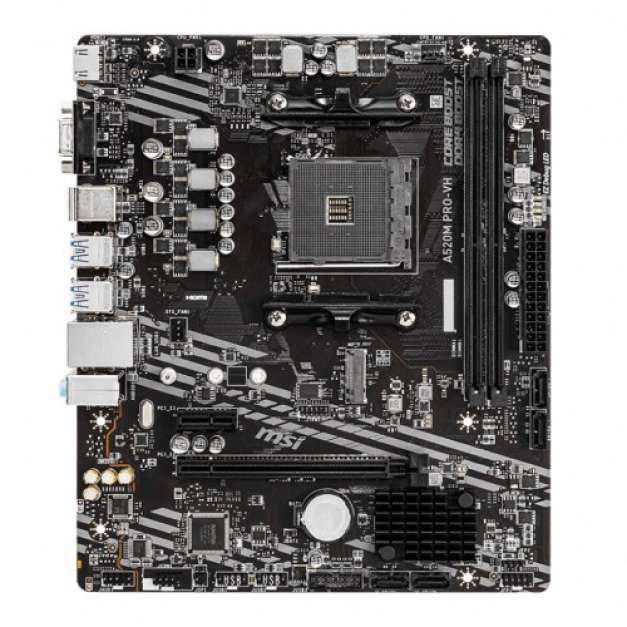

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

PCI	1x PCIe 3.0 x1 slot 1x PCIe 3.0 x16 slot

M.2 Socket

1x M.2 slot (Key M) (from AMD Processor)

Audio

Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio

Supported CPU

AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors

Chipset

AMD A520 Chipset

Form Factor

mATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Type	Dual-channel memory architecture

Slot	2x DDR4 memory slots

Supported Memory

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

Maximum Memory

64GB

Graphics

1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz

Max Shared Memory

16GB

Manufacturing Warranty

03 Years Warranty

HDMI	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz

USB (s)

AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN Port (s)

1x Realtek RTL8111H LAN controller

Supported Storage

AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices

Audio

1x Front panel audio connector

Internal I/O Ports

1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper

TPM (Trusted Platform Module)

1x TPM module connector

VGA (s)

1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard

MSI A520M PRO-VH AMD AM4 Micro-ATX Motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors. It supports DDR4 Memory, up to 4600(OC) MHz. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It features M.2 Shield Frozr. Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. It comes with a premium layout and digital power design to support more cores and provide better performance. Advanced technology to deliver pure data signals for the best performance and stability. It comes with a 2oz Thickened Copper PCB. An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost rewards your ears with studio-grade sound quality. It features Dragon Center - A brand new software that integrates all MSI exclusive tools with a user-friendly user interface. It has 3 years of warranty.
