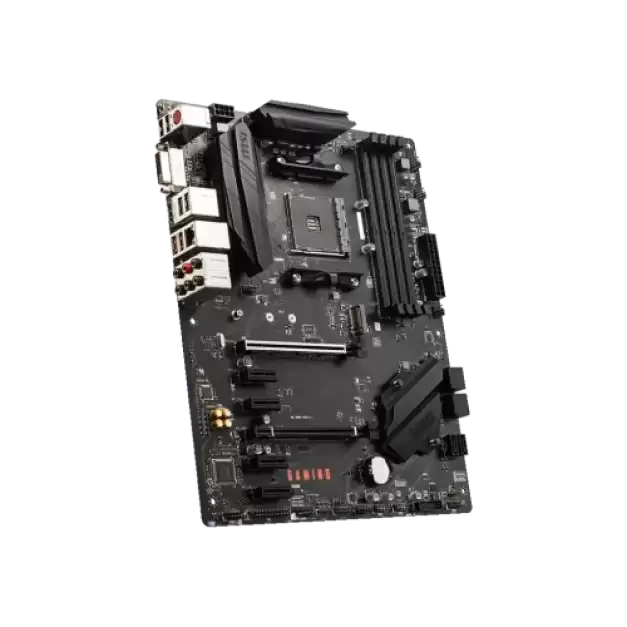

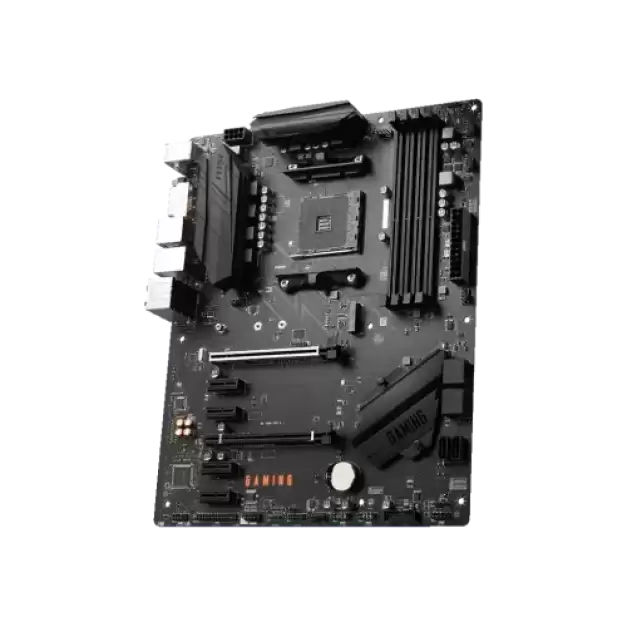

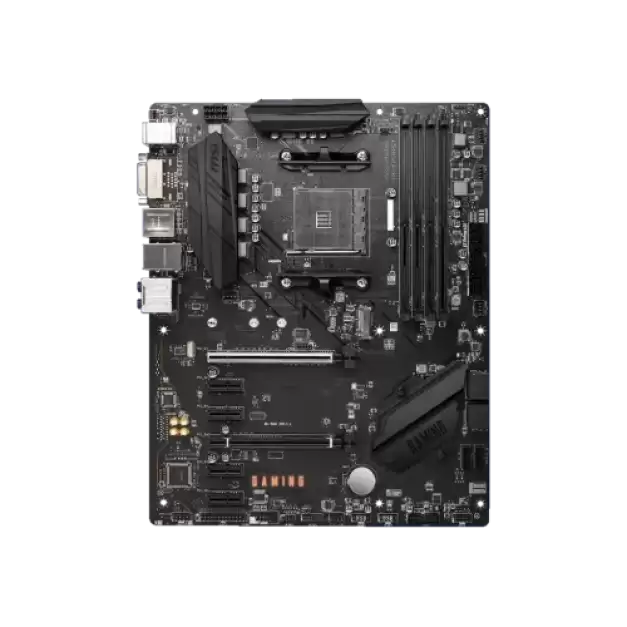

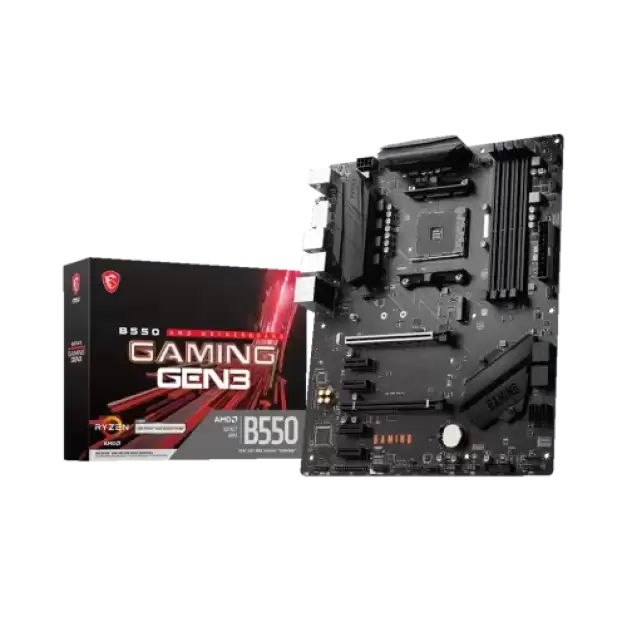

MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard

PCI	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIE 3.0 x16 PCI_E4 (From B550 chipset) Supports PCIe 3.0 x4 4x PCIe x1 slots PCI_E2, E3, E5 and E6 slots (From B550 chipset) Supports PCIe 2.0 X1

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Supported CPU

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4

Chipset

AMD B550 Chipset

Form Factor

ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Type

DDR4

Slot	4x memory slots

Supported Memory

Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

Maximum Memory

128GB

Graphics

1x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 2.0b port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

Max Shared Memory

16GB

Manufacturing Warranty

03 Years Warranty

Special Features

2x 4-pin RGB LED connectors 4x EZ Debug LED

HDMI	1x HDMI 2.0b

D-Sub (s)

1x DVI-D port

USB (s)

1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 connectors (From B550 chipset) Supports additional 4 USB 2.0 ports

LAN Port (s)

1x Realtek RTL8111H LAN controller

Supported Storage

6x SATA 6Gb/s ports (From B550 chipset) 1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280/ 22110 storage devices

Internal I/O Ports

1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x Clear CMOS jumper

TPM (Trusted Platform Module)

1 x TPM module connector

RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard

The MSI B550 GAMING GEN3 AM4 ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It supports AMD Ryzen 5000 & 3000 Series desktop processors, as well as AMD Ryzen 4000 G-Series desktop processors (excluding AMD Ryzen 5 3400G & Ryzen 3 3200G). This motherboard is equipped with DDR4 Memory support for up to 4400(OC) MHz, allowing for lightning-fast data transfer rates. It features Turbo M.2 Gen3 x4 and AMD Turbo USB 3.2 GEN 2, which provide faster transfer speeds for improved gaming experiences. The enhanced power design of this motherboard includes Core Boost and DDR4 Boost technology, which improves power delivery to the CPU and memory modules for stable and reliable performance. The MSI B550 GAMING GEN3 AM4 ATX Motherboard also supports multi-GPU setups with its STEEL ARMOR PCI-E slots, enabling AMD Crossfire technology for improved graphics performance. The motherboard is equipped with a Flash BIOS Button and optimized ClearCMOS function, allowing you to easily flash any BIOS within seconds using a USB key. You can also restore the BIOS to its default settings without any additional actions. Lastly, the MSI B550 GAMING GEN3 AM4 ATX Motherboard includes Audio Boost technology, which provides studio-grade sound quality for a more immersive gaming experience.
