Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard

Qty
+ -
Expansion Slots
PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Basic Information
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers
Supported CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Memory Specifications
Type DDR4
Slot 2 x DIMM
Supported Memory 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics Specifications
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Warranty
Manufacturing Warranty 3 years warranty
Others
Special Features Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Connector & Ports
HDMI 1 x HDMI port
USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet port
Supported Storage Total supports 3 x SATA 6Gb/s ports Intel H610 Chipset 3 x SATA 6Gb/s ports
Audio 3 x Audio jacks

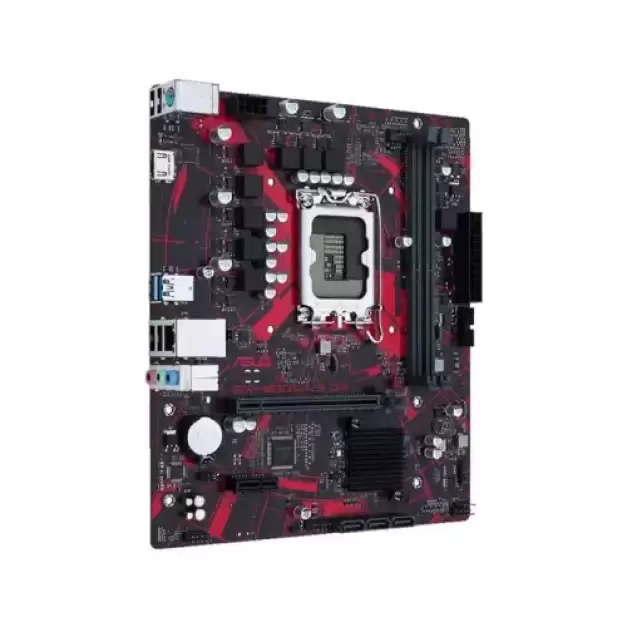

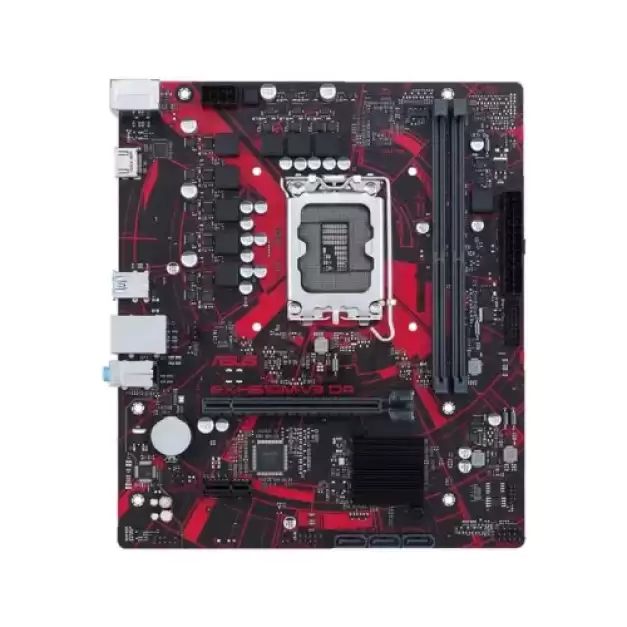

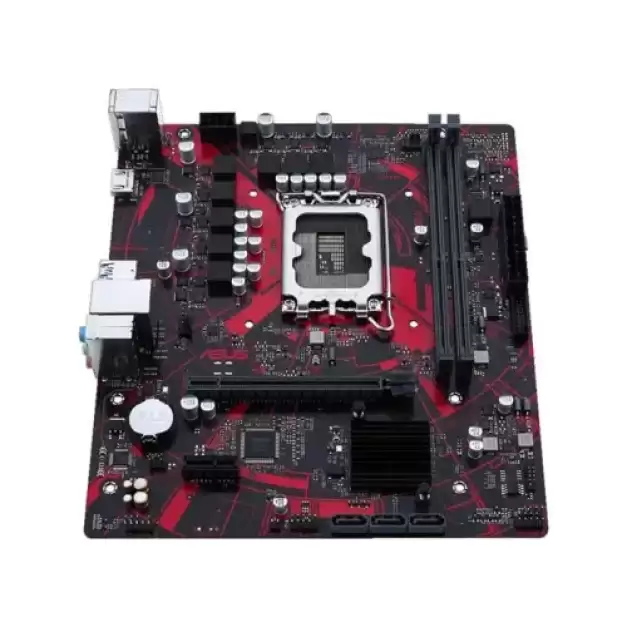

Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard

The Asus EX-H610M-V3 D4 is a micro ATX motherboard with an LGA 1700 socket built for 12th and 13th-generation Intel CPUs. PCIe 4.0, HDMI, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and Realtek 1 Gb Ethernet are among the features. The motherboard has a bright anti-moisture layer that adds endurance and protection against moisture. It also has USBGuard, which protects against power spikes. This motherboard is a superb choice for iCafés, custom-built gaming systems, and quality-conscious enterprises. Its features, such as LANGuard, SafeSlot Core+, and 5X Protection III, ensure continuous longevity. The stainless-steel rear I/O offers further corrosion resistance. Beyond VR-ready and Epic audio certified, the Asus EX-H610M-V3 D4 ensures an immersive gaming experience. In addition, the motherboard has been evaluated for compatibility with a broad range of peripherals, CPUs, memory modules, graphics cards, and top games. The ASUS iCafé LAB has verified the motherboard, confirming that it can handle reboot and diskless-diskless systems. The Asus EX-H610M-V3 D4 is a non-stop competitor for anybody searching for a trustworthy micro ATX motherboard, thanks to its unrivaled durability, compatibility, and gaming capabilities.

Buy Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get original Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard From Basictech bd. We have a large collection of latest Asus Motherboard to purchase for your Desktop. Order Online Or Visit Now Basictech bd  Shop to get yours at lowest price. The Asus EX-H610M-V3 D4 12th & 13th Gen mATX Motherboard comes with 3 years warranty.
