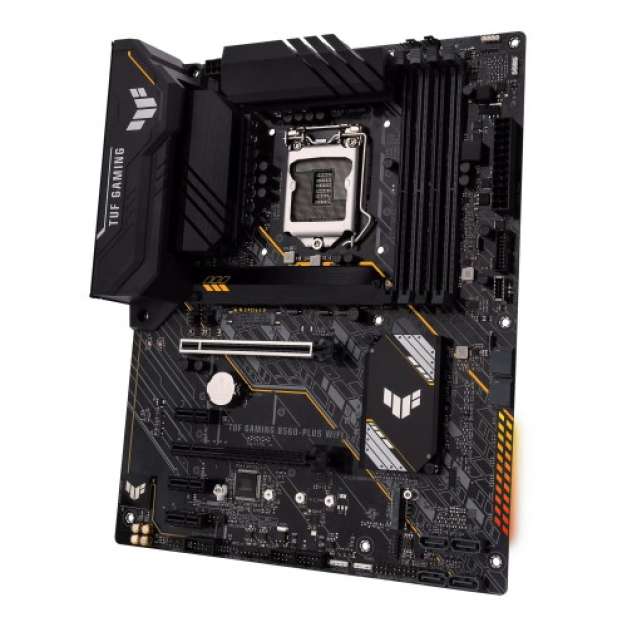

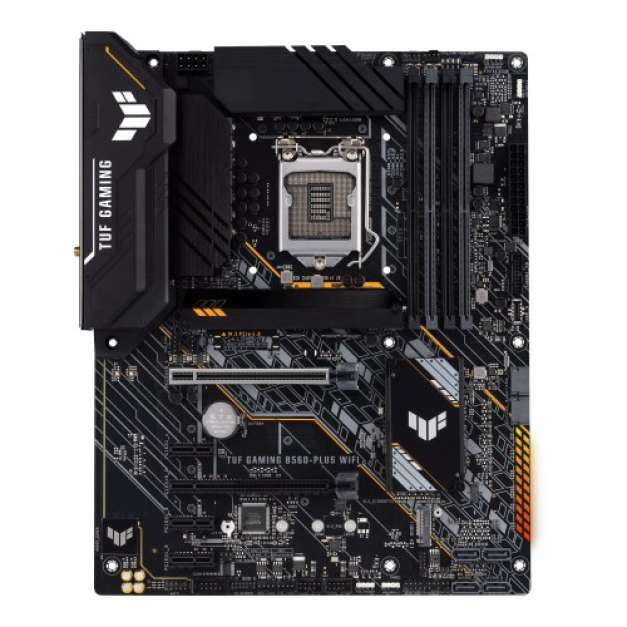

Asus TUF GAMING B560-PLUS WIFI 11th and 10th Gen ATX Motherboard

PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th processors support PCIe 4.0 x16 - Intel10th processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots

M.2 Socket

Intel 11th Gen Processors - M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 ) - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset - M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes)

Supported CPU

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel B560 Express Chipset

BIOS	128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX: 30.5cm x 23.4cm

Type

DDR4

Slot

4 x DIMM

Supported Memory

11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively. 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) ASUS OptiMem

Maximum Memory

128 GB (32 GB single DIMM capacity)

Graphics

1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4/2.0

Manufacturing Warranty

3 Years

Special Features

Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)

HDMI	1 x HDMI 1.4/ 2.0

D-Sub (s)

1 x D-Sub

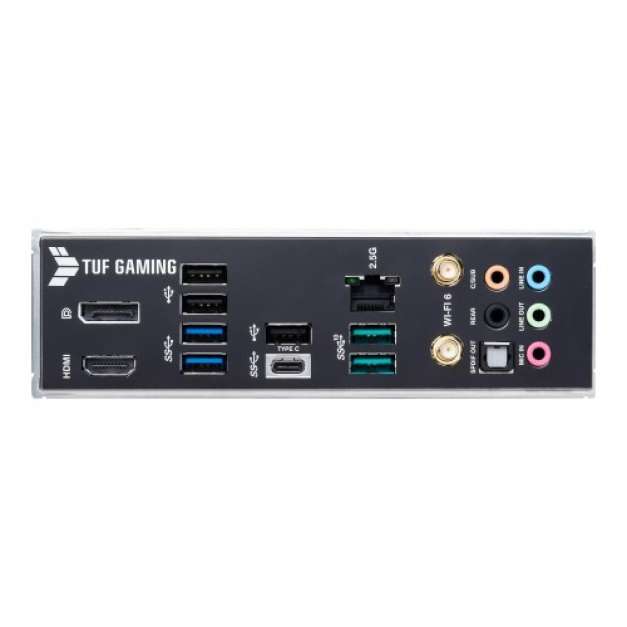

USB (s)

2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x USB Type-C) 4 x USB 2.0 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

LAN Port (s)

1 x Intel I219-V 1Gb Ethernet ASUS LANGuard

Supported Storage

Intel 11th Gen Processors - M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 ) - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset - M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes) - 6 x SATA 6Gb/s ports

Audio

Realtek ALC897 7.1-Channel High Definition Audio CODEC Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers

Internal I/O Ports

Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x M.2 slot (key E) 1 x Thunderbolt 4 header

TPM (Trusted Platform Module)

1 x SPI TPM header (14-1 pin)

Display Port (s)

1 x DisplayPort 1.4

Asus TUF GAMING B560-PLUS WIFI 11th and 10th Gen ATX Motherboard

Asus TUF GAMING B560-PLUS WIFI Intel 10th and 11th Gen ATX Motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Asus TUF GAMING B560-PLUS WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Asus TUF GAMING B560-PLUS WIFI 11th Gen Motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. The motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors.Asus TUF GAMING B560-PLUS WIFI 11th Gen Motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware. The Asus TUF GAMING B560-PLUS WIFI comes with 3 years of warrranty.
