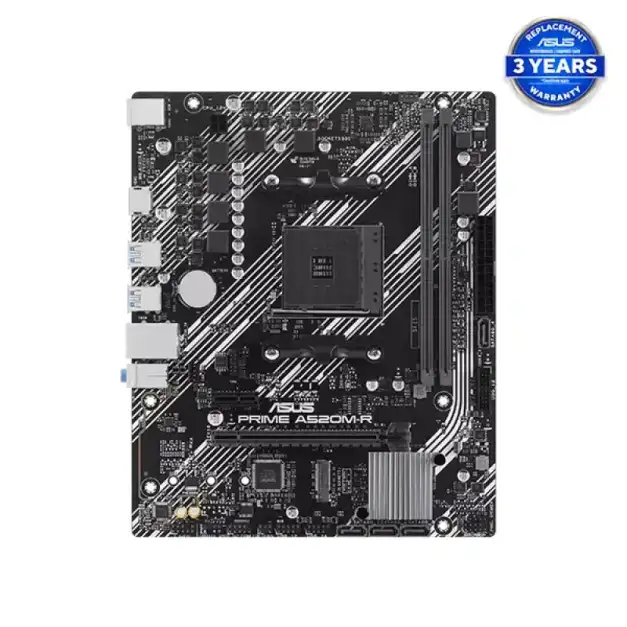

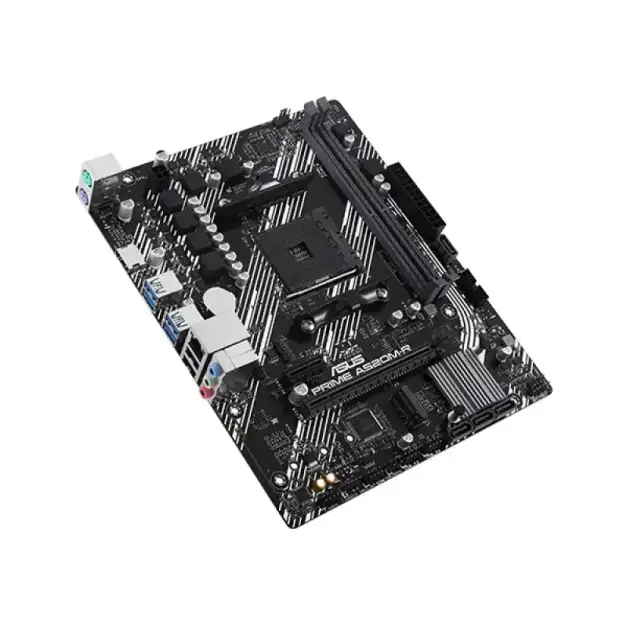

Asus PRIME A520M-R AM4 micro ATX Motherboard

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Supported CPU

AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

Chipset

A520

BIOS	128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )

Type

DDR4

Slot

2 x DIMM

Supported Memory

DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual channel memory architecture * ECC memory (ECC mode) support varies by CPU

Maximum Memory

64GB

Graphics

1 x HDMI port** * Graphics specifications may vary between CPU types

Manufacturing Warranty

03-Year Warranty

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design

Bundled Software

ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

HDMI

1 x HDMI

USB (s)

Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

LAN Port (s)

1 x Realtek 1Gb Ethernet ASUS LANGuard

Supported Storage

1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

Audio

3 x Audio jacks

Internal I/O Ports

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

TPM (Trusted Platform Module)

1 x SPI TPM header (14-1pin)

Asus PRIME A520M-R AM4 micro ATX Motherboard

The ASUS PRIME A520M-R AM4 Micro ATX Motherboard is a dependable and feature-packed ASUS Motherboard tailored for users seeking a stable platform for productivity, light gaming, and everyday computing tasks. As part of the reliable Asus 520 Motherboard family, it utilizes the AMD A520 chipset to support Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series processors, making it a future-ready Asus AMD motherboard built for long-term performance. The board’s compact Micro ATX form factor accommodates tight builds while still offering robust features including dual DDR4 DIMM slots with support for up to 64GB RAM at speeds up to DDR4 5100 (OC), ensuring responsive multitasking. Storage expansion is seamless with one high-speed M.2 slot (PCIe 3.0 x4 & SATA) alongside four SATA 6Gb/s ports, giving users flexibility for both fast boot drives and ample data storage. The Asus PRIME A520M-R Motherboard includes a PCIe 3.0 x16 slot for GPUs and a PCIe 3.0 x1 slot for add-in cards, making it a versatile base for customization. Integrated Realtek 1Gb Ethernet provides reliable connectivity, and HDMI output supports crisp 4K visuals at 60Hz. USB ports are well-distributed across the board’s front and rear I/O, with a mix of USB 5Gbps and USB 2.0 interfaces for device support. Audio quality is elevated with Realtek 7.1 Surround Sound, premium capacitors, and layered PCB design for clean signals. Thermal regulation is handled by a passive PCH heatsink and ASUS Fan Xpert control software, giving users customizable cooling profiles. Additional protection features like ASUS 5X Protection III enhance hardware longevity, while Q-Design elements simplify installation for DIY builders. Compatible with both Windows 10 and 11 64-bit systems, the ASUS PRIME A520M-R Motherboard blends value, reliability, and versatility into one compact and capable Asus AMD motherboard that’s ideal for building efficient desktop setups.

Buy Asus PRIME A520M-R AM4 micro ATX Motherboard from Basictech BD

In Bangladesh, you can get the original Asus PRIME A520M-R II AM4 micro ATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop. Order Online Or Visit Basictech BD  Shop to get yours at the lowest price. The Asus PRIME A520M-R AM4 micro ATX Motherboard comes with a 03-year warranty.
