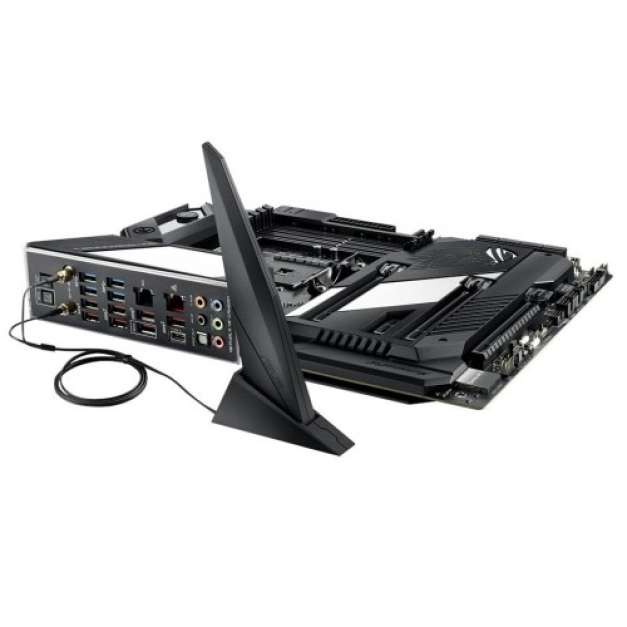

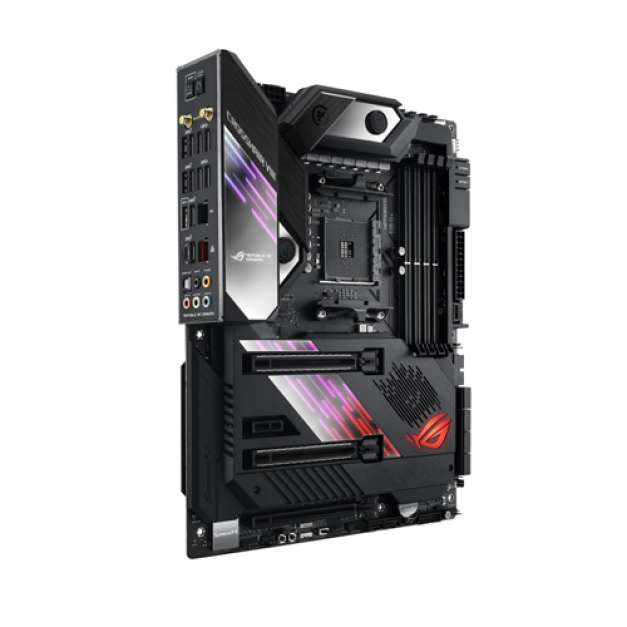

Asus Rog Crosshair X570 VIII Formula AMD ATX Gaming Motherboard

PCI	3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1

M.2 Socket

3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

Supported CPU

AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

Chipset

AMD X570

BIOS	256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Type	Dual Channel Memory Architecture

Slot	4 x DIMM, DDR4

Supported Memory

3rd Gen AMD Ryzen Processors 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory 2nd Gen AMD Ryzen Processors 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory ECC Memory (ECC mode) support varies by CPU

Maximum Memory

128GB

Graphics

3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology

Max Shared Memory

Max. 128GB

Manufacturing Warranty

03 Years Warranty

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian: - DRAM Overcurrent Protection - 10K Black Metallic Capacitors - ESD Guards on LAN, Audio,and USB ports ASUS SafeSlot - Protect your graphics card Investment LiveDash OLED AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS FlashBack™ - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - BIOS FlashBack™ Button - Clear CMOS Button ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector ROG Exclusive Features ROG RGB Armor Start Button Reset Button ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+ : - IR3555 PoweIRstage® - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - Safe Boot button - Slow Mode - LN2 Mode UEFI BIOS features : - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview USB BIOS FlashBack™ Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III - Overwolf

USB (s)

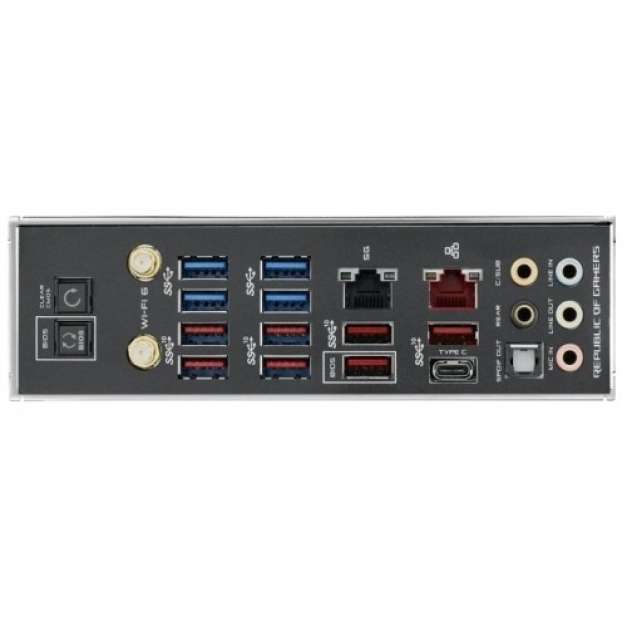

3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C) AMD X570 chipset : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s)

LAN Port (s)

Intel I211-AT Aquantia AQC111C 5G LAN ASUS LAN Guard ROG GameFirst V Technology Wireless Data Network Intel Wi-Fi 6 AX200 Supports channel bandwidth: HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed Bluetooth Bluetooth 5.0

Supported Storage

3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Supports : Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS ES9023P - Supports up to 32-Bit/192kHz playback * Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Internal I/O Ports

1 x PCH_FAN 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x LN2 Mode header(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Node Connector(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports

Asus Rog Crosshair X570 VIII Formula AMD ATX Gaming Motherboard

ROG Crosshair VIII Formula comes equipped with an optimized power-design layout to handle the prodigious power of the latest AMD Ryzen processors without throttling.​ ROG gives you powerful tools that make optimizing your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organized into intuitive categories that provide the ability to tweak every aspect of your system​. ROG Crosshair VIII Formula offers advanced connectivity to ensure seamless gaming experiences. With the latest ultrafast networking, including Wi-Fi 6 (802.11ax) and dual Ethernet with one 5G port, ROG Crosshair VIII Formula removes all bottlenecks for online and LAN play, minimizing lag and providing an overall smoother experience. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.​ THE POWER TO PERSONALIZE ROG provides a range of intuitive software that enables easy control of your advanced gaming hardware and ensures seamless component compatibility. From RGB lighting, networking and audio to storage optimization and more, ROG gives you the power to personalize your system just the way you want.​ The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.​ The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.​
