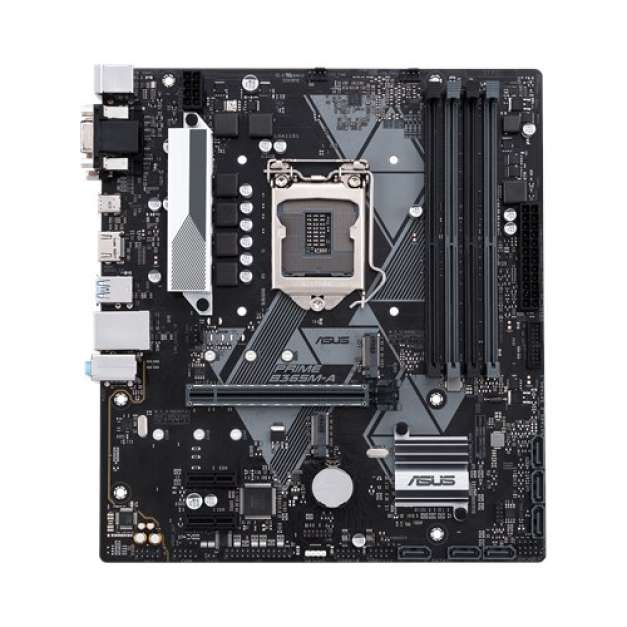

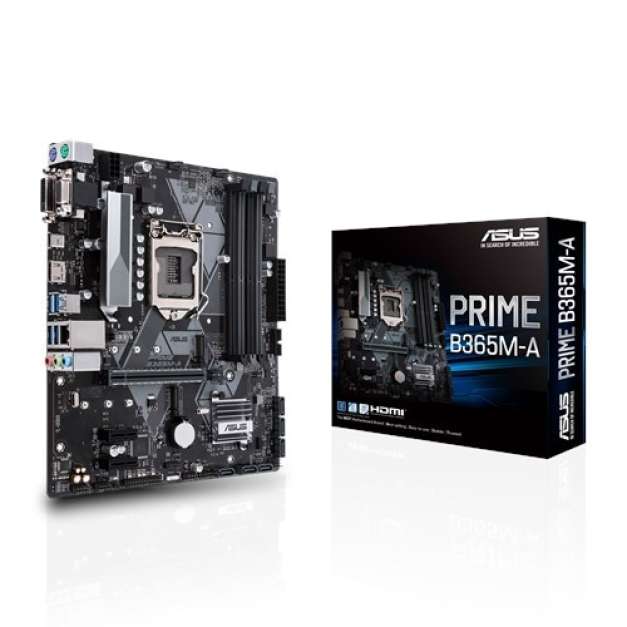

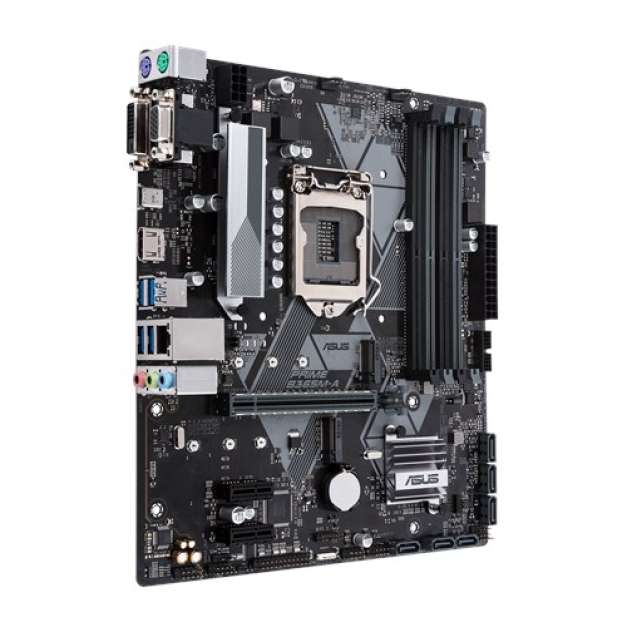

Asus Prime B365M-A DDR4 9th Gen Motherboard,

PCI	1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1

M.2 Socket

2 x M.2 Socket 3 for M Key, Type 2242/2260/2280 devices

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Supported CPU

Intel Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel B365

BIOS	128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Form Factor

mATX Form Factor 9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )

Slot	Dual Channel Memory Architecture

Supported Memory

4 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Maximum Memory

64GB

Graphics

Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Max Shared Memory

1024 MB

Manufacturing Warranty

02 Years

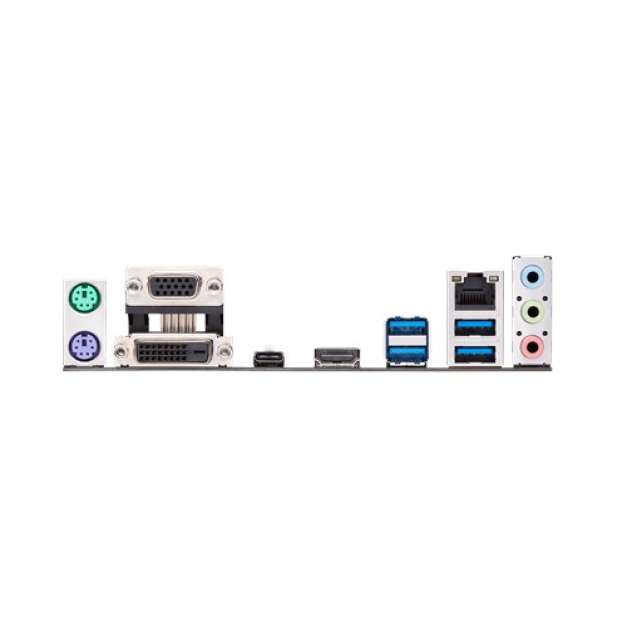

HDMI

1 x HDMI

D-Sub (s)

1 x D-Sub

USB (s)

1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps 4 x USB 3.1 Gen 1 Type-A

LAN Port (s)

1 x LAN (RJ45) port(s)

Audio

1 x 8-channel Audio I/O

TPM (Trusted Platform Module)

1 x TPM header

DVI-D (s)

1 x DVI-D

Asus Prime B365M-A Intel LGA-1151 mATX motherboard with Aura Sync RGB header, DDR4 2666MHz, M.2 support, HDMI, Intel Optane memory ready, SATA 6Gbps. ASUS OptiMem Careful routing of traces and vias to preserve signal integrity for improved memory stability. Fan Xpert 2+ Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming. 5X Protection III Multiple hardware safeguards for all-round protection. ASUS Aura Sync header Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware. Ultrafast connectivity Supreme flexibility with native M.2 support for Lightning-fast storage speeds.
