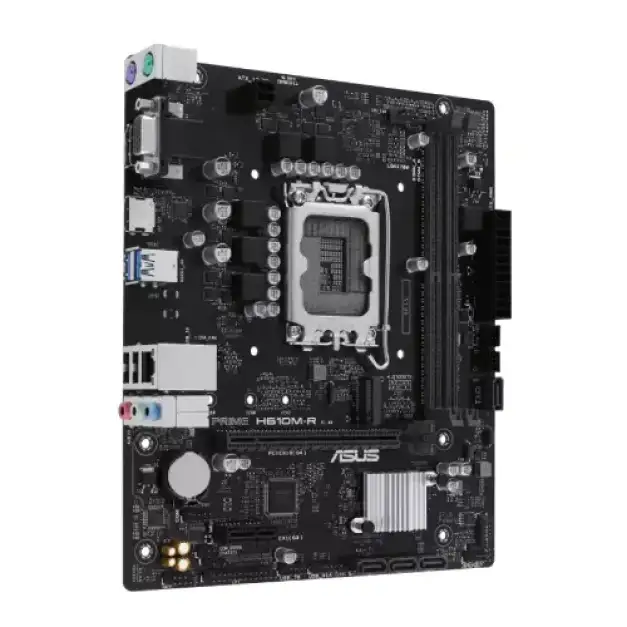

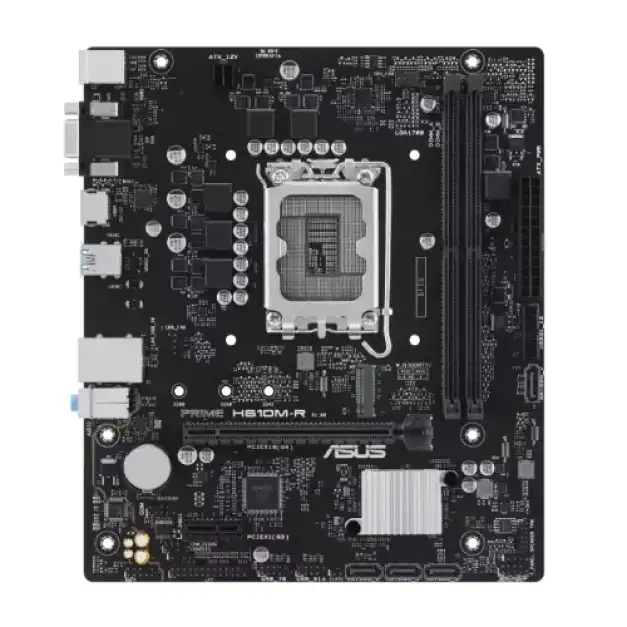

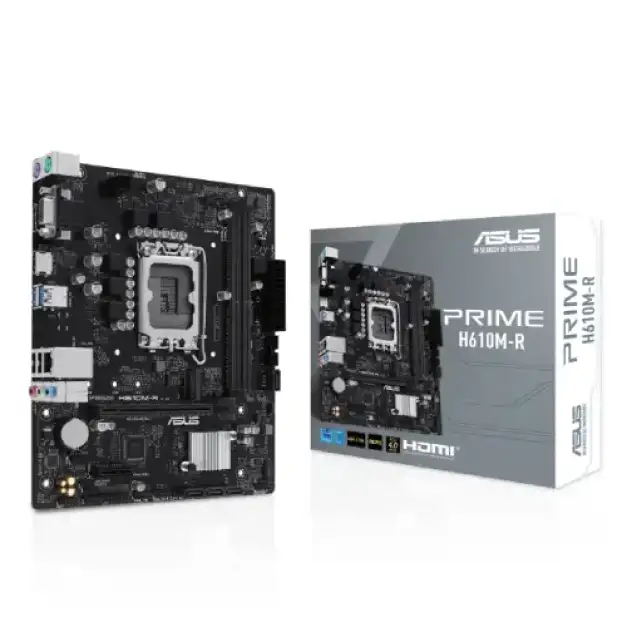

ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard

PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot

M.2 Socket

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports

Audio

3 x Audio jacks

Supported CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Chipset

Intel H610 Chipset

BIOS	128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )

Type

DDR5

Slot

2 x DIMM

Supported Memory

DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

Maximum Memory

Max. 96GB

Graphics

1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types.

Manufacturing Warranty

3 years Warranty

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design

Bundled Software

ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

HDMI	1 x HDMI port

USB (s)

Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

LAN Port (s)

1 x Realtek 1Gb Ethernet

Supported Storage

1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports

Audio

ealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Internal I/O Ports

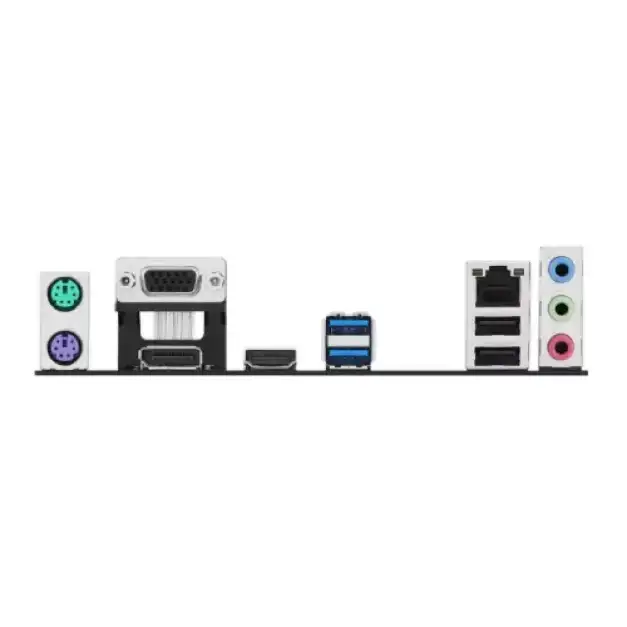

Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x 10-1 pin System Panel header

TPM (Trusted Platform Module)

1 x SPI TPM header (14-1 pin)

VGA (s)

1 x VGA

Display Port (s)

1 x Display port

ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard

The ASUS PRIME H610M-R Motherboard is a powerful, compact option that exemplifies the performance and versatility of a modern Asus motherboard. This Asus 610 Motherboard, built around Intel's advanced H610 chipset to support 12th, 13th, and 14th Gen processors, features DDR5 memory compatibility with dual DIMM slots that can hold up to 96GB, ensuring lightning-fast data transfer and responsiveness for both everyday computing and high-performance builds. ASUS PRIME H610M-R's mATX compact factor does not limit expansion choices, with a PCIe 4.0 x16 slot for high-speed graphics, an extra PCIe 3.0 x1 slot, and ample storage options, including an M.2 slot running in PCIe 3.0 x4 mode and four SATA 6Gb/s connections. Multiple display outputs (HDMI, DisplayPort, and VGA), integrated Realtek 1Gb Ethernet, and a variety of USB 3.2 Gen 1 and USB 2.0 connectors enable simple connection with accessories. This Asus motherboard's optimized aluminum heatsink architecture and the enhanced durability of ASUS 5X Protection III provide remarkable stability and longevity, while its intuitive UEFI BIOS caters to both novices and seasoned enthusiasts. Overall, the ASUS PRIME H610M-R Motherboard is a standout Asus 610 Motherboard that combines cutting-edge technology, efficiency, and dependability into a powerful foundation for a wide range of computer tasks.
