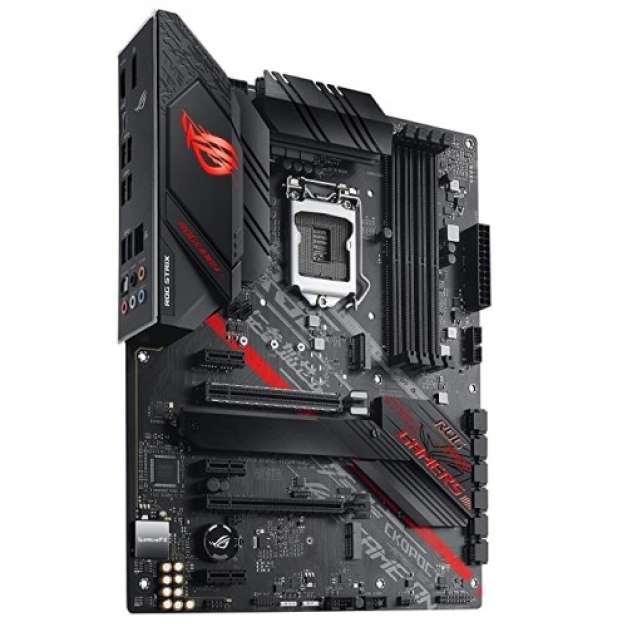

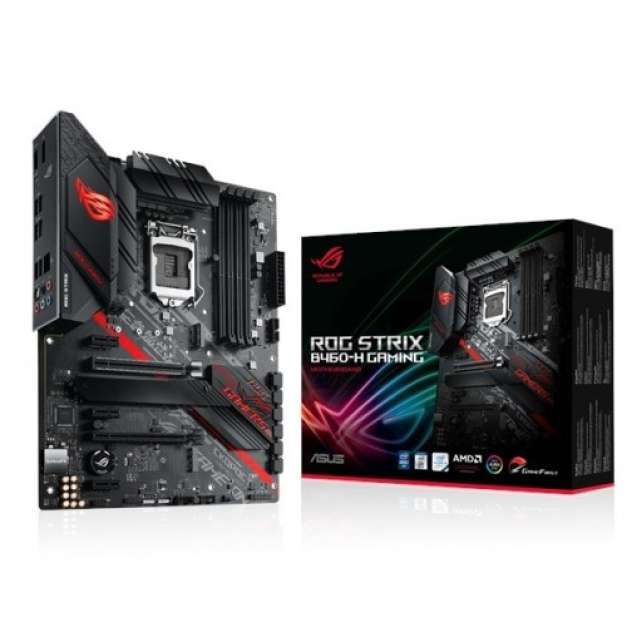

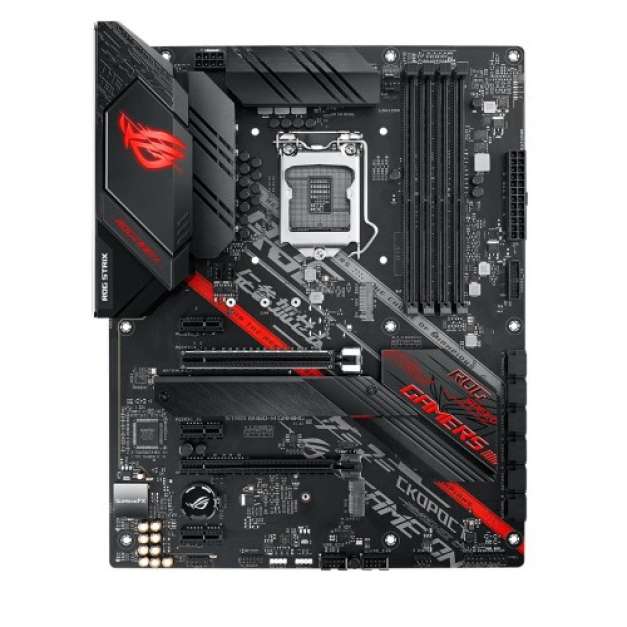

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard

PCI	Intel 10th Gen Processors: 1 x PCIe 3.0 x16 Intel B460 Chipset: 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1

M.2 Socket

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Supported CPU

Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

Intel B460

BIOS	128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)

Type	Dual channel memory architecture

Slot	4 x DDR4 DIMM

Supported Memory

Support for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem

Maximum Memory

128 GB

Graphics

Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology

Manufacturing Warranty

03 Years

Special Features

Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C connector

HDMI	1 x HDMI 1.4b

USB (s)

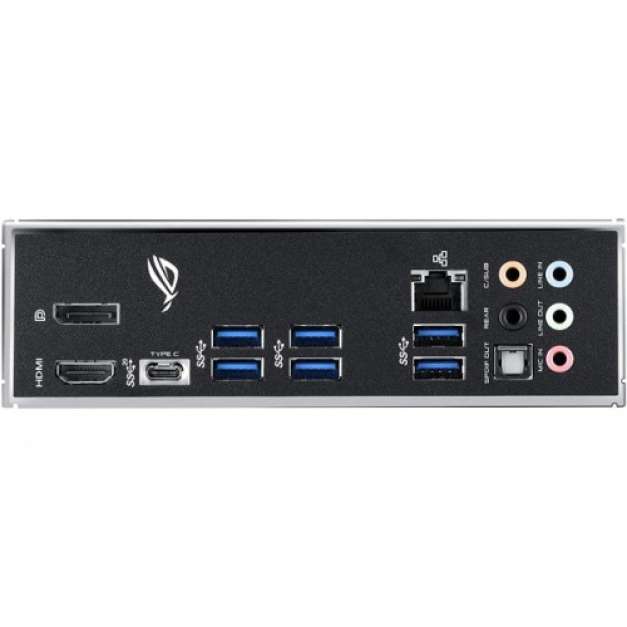

Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)

LAN Port (s)

Intel I219-V 1Gb Ethernet ASUS LANGuard

Supported Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Rear audio USB Type-C port - Premium Japanese audio capacitors - Audio Cover

Internal I/O Ports

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel connector

Display Port (s)

1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard

ROG Strix B460-H Gaming motherboard is instantly recognizable with its classic red-and-black color scheme and futuristic cybertext markings. It's packed with all the essentials, including robust hardware and intuitive ROG software to make it ideal for gamers and builders of all levels. The robust power design and comprehensive cooling features of Strix B460-H Gaming ensure great all-round performance, and an intuitive dashboard gives you full networking control so you can harness the full potential of your build. Teamed power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand. The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard. ROG Strix B460-H Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly fast file transfers. The superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience. The cyberpunk-inspired aesthetics of ROG Strix B460-H Gaming are accentuated with bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style. Patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install on the motherboard. Four onboard LEDs indicate power status and any problem with the CPU, memory, graphics card, or boot device for quick diagnosis. The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
