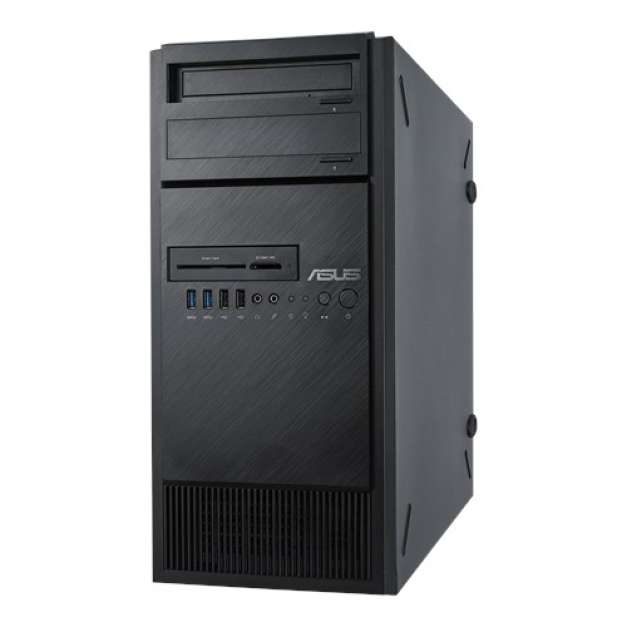

ASUS TS100-E10-PI4 Intel Xeon E-2236 Tower Server

Optical Drive

1 x Slim-type Optical Drive Bay

Power Supply

300W 80PLUS Single Power Supply, Bronze Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I

Drive Bays

5 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays* 2 x M.2 (NGFF 22110/2280/2260/2242. One supports both SATA 6Gb/s & PCI-E Gen3 x2 link, the other is SATA 6Gb/s only.)

I/O Slots

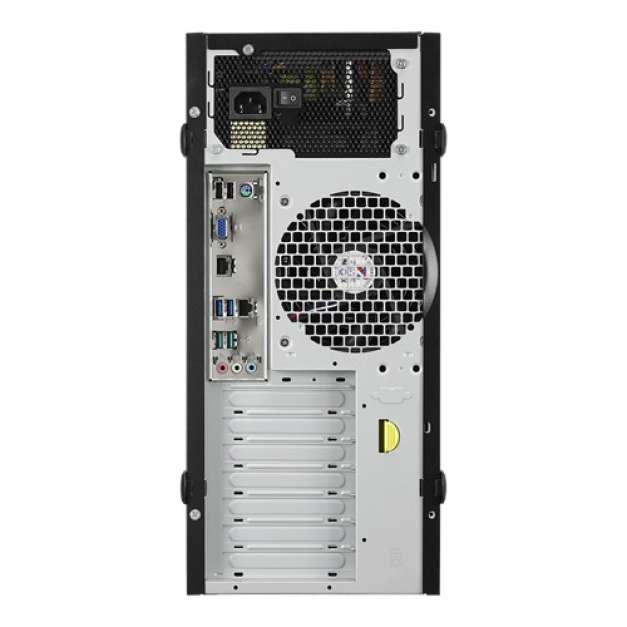

Font I/O Ports: 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x Headphone port 1 x Microphone port Rear I/O Ports: 2 x USB 3.1 ports 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA Port (onboard Aspeed AST2510) 2 x LAN Ports 3 x Audio Jacks (onboard Realtek ALC887-VD2 8-Channel High Definition Audio CODEC) 1 x PS/2 Keyboard/ Mouse Port

Others

Expansion Slot: 1 x PCI-E x16 (Gen3 x16 Link) 1 x PCI-E x8 (Gen3 x4 Link) 2 x PCI Storage Option: SATA Controller : Intel C242 Chipset 6 x SATA3 6Gb/s ports + 2 x M.2 connector *1 Intel Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card (Optional)

Processor

Intel Xeon E-2236 Processor (3.40GHz up to 4.80GHz, 12M Cache), 6 Core, 12 Threads, 12 MB Intel® Cache, turbo (80W) Max Mem 2666MHz

Chipset

Intel C242 Chipset

Others

Standard English USB Keyboard and Mouse (US)

Memory

16GB 3200MT/s UDIMM ECC and with ECC Sockets: 4 Maximum RAM: Up to 128GB

Hard Disk

2 x 1TB 7.2K RPM SATA3 ENTERPRISE 6Gbps 3.5in Hard Drive

Video Memory

Aspeed AST2510 with 64MB VRAM

RAID Controller

Support software RAID 0, 1, 10 & 5 Intel Rapid Storage Technology Enterprise (RSTe)

Operating System

Windows Server 2022 Windows Server 2019 Windows Server 2016 Windows Server 2012 R2 Windows Server 2008 R2 SP1 SUSE Enterprise 12 CentOS 7.1 SUSE Destop 12 CentOS 7.2 Ubuntu 14.04 LTS Ubuntu 15.04 LTS Ubuntu 15.10 LTS

Chasis

Tower

Network

1 x Intel I210AT

Embedded System Management

ASUS Control Center Enterprise

Manufacturing Warranty

3 Years Full Parts and Service with Local and International Warranty

ASUS TS100-E10-PI4 Intel Xeon E-2236 Tower Server

ASUS TS100 Core Tower Server comes with Intel Xeon E-2236 Processor (3.40GHz up to 4.80GHz, 12M Cache), 6 Core, 12 Threads, 12 MB Intel Cache, turbo (80W) Max Mem 2666MHz, Intel C242 Chipset, 16GB 3200MT/s UDIMM non-ECC and with ECC Sockets: 4 Maximum RAM: Up to 128GB, 2 x 2TB 7.2K RPM SATA3 ENTERPRISE 6Gbps 3.5in Hard Drive and Aspeed AST2510 with 64MB VRAM. It is equipped with 300W 80PLUS Single Power Supply. The ASUS TS100-E10-PI4 is the ideal choice for an entry-level server for your business.

Dual M.2 for internal and independent OS drives with RAID 0/1

The ASUS TS100-E10-PI4 comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA with an auto-switch signal function. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

Maximize I/O performance and data protection

ASUS TS100-E10-PI4 supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of TS100-E10-PI4, making it a great upgrade option.
