ASUS TUF GAMING B850-PLUS WIFI AMD Ryzen AM5 ATX Gaming Motherboard

PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot

M.2 Socket

3 x M.2

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Supported CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD B850

BIOS	256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Type

DDR5

Slot

4 x DIMM

Supported Memory

max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)

Maximum Memory

256GB

Graphics

1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1.

Manufacturing Warranty

3 Years Warranty

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen2 headers

Bundled Software

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

HDMI

1x HDMI

USB (s)

Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A.

LAN Port (s)

1 x Realtek 2.5Gb Ethernet TUF LANGuard

Supported Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10

Audio

5 x Audio jacks

Internal I/O Ports

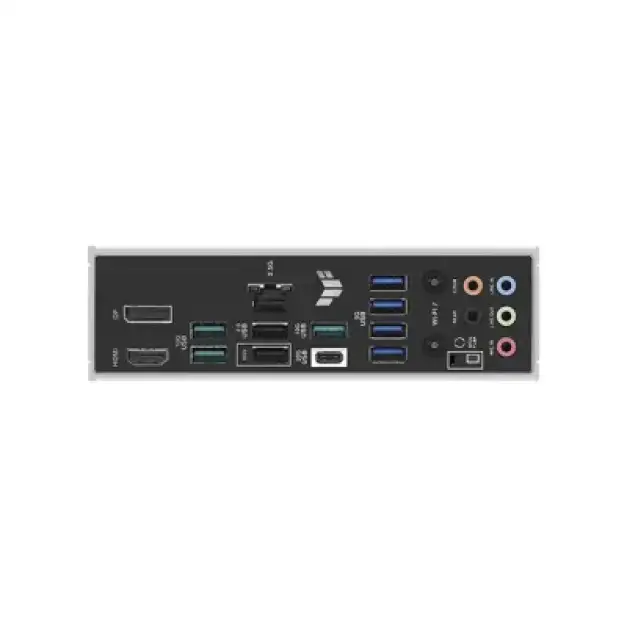

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button

Display Port (s)

1x DisplayPort

Wireless Communication module

Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4

RAID	AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10

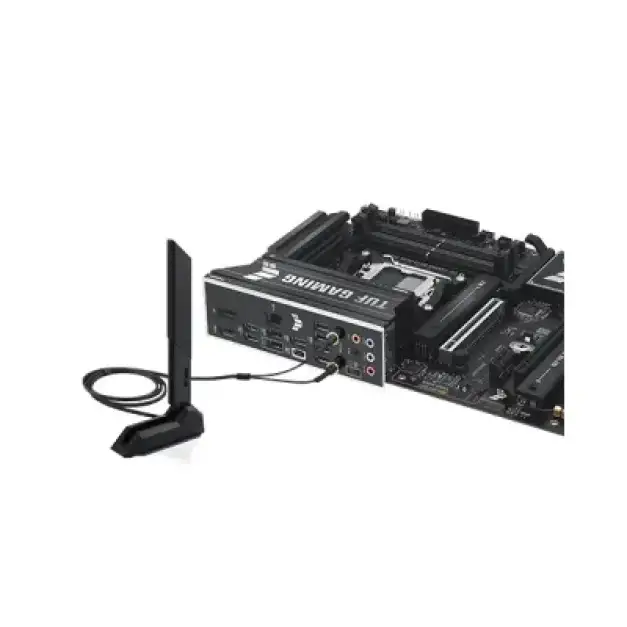

Asus TUF GAMING B850-PLUS WIFI ATX Motherboard

The Asus TUF GAMING B850-PLUS WIFI is a sturdy ATX Asus motherboard built for gamers and PC enthusiasts. It supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors using the AM5 socket, providing compatibility with the most recent AMD CPUs. This Asus B850 motherboard supports up to 256GB of DDR5 memory at speeds of up to 8000+MT/s (OC), delivering outstanding performance for demanding workloads. This Asus AMD Motherboard has a PCIe 5.0 x16 slot and two PCIe 4.0 M.2 slots, providing versatile and fast storage alternatives. 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth v5.3 provide fast and stable network connectivity. The motherboard also incorporates comprehensive cooling solutions like as VRM heatsinks, an M.2 heatsink, and hybrid fan headers to provide optimal thermal performance.This Asus 850 motherboard supports ASUS Aura Sync for configurable RGB lighting and EZ PC DIY for simple build customization. Overall, the Asus WiFi motherboard TUF GAMING B850-PLUS WIFI is intended to provide reliable power, efficient cooling, and extensive performance tuning options, making it a fantastic choice for gamers and content creators.

Buy Asus TUF GAMING B850-PLUS WIFI ATX Motherboard from Basic Tech BD

In Bangladesh, you can get original Asus TUF GAMING B850-PLUS WIFI ATX Motherboard From Basictech BD. We have a large collection of latest Asus Motherboard to purchase for your Desktop. Order Online Or Visit Basictech BD Shop to get yours at lowest price.The Asus TUF GAMING B850-PLUS WIFI ATX Motherboard has 3 year warranty.

Asus TUF GAMING B850-PLUS WIFI ATX Motherboard Best Price In BD
