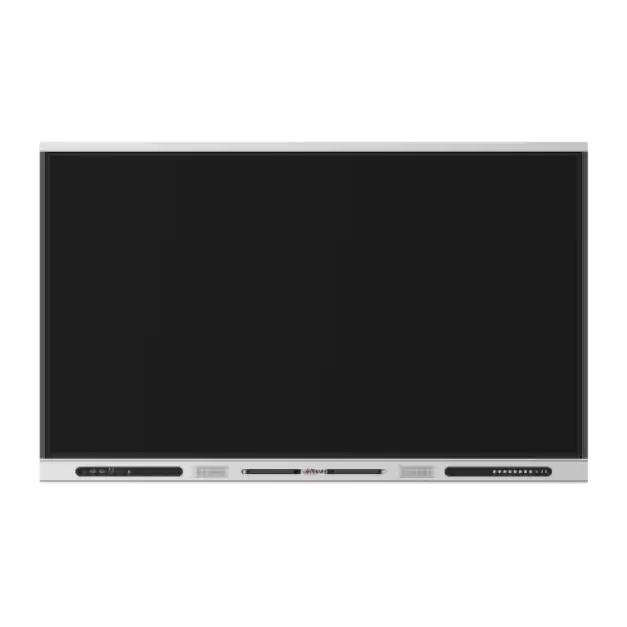

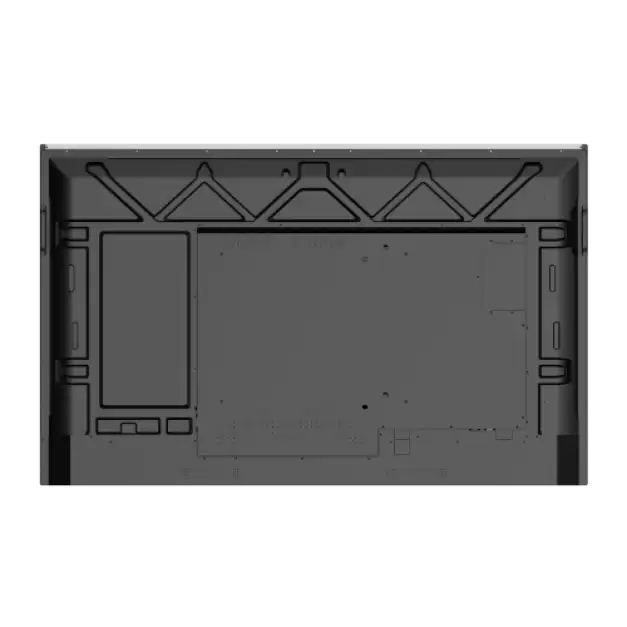

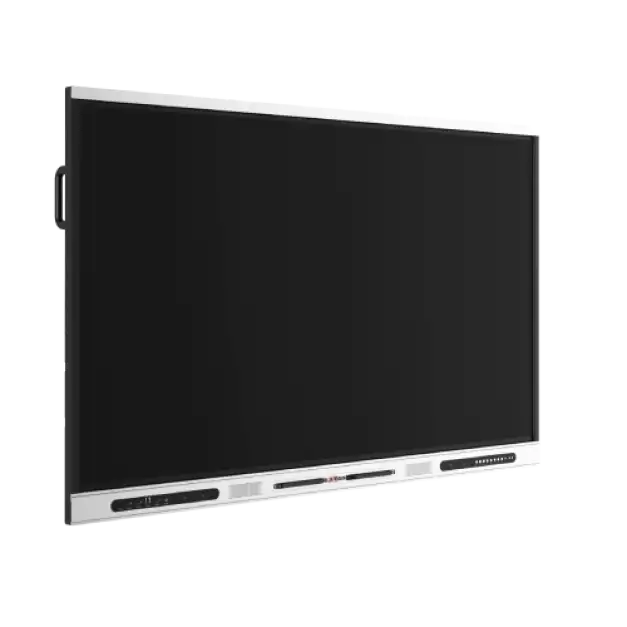

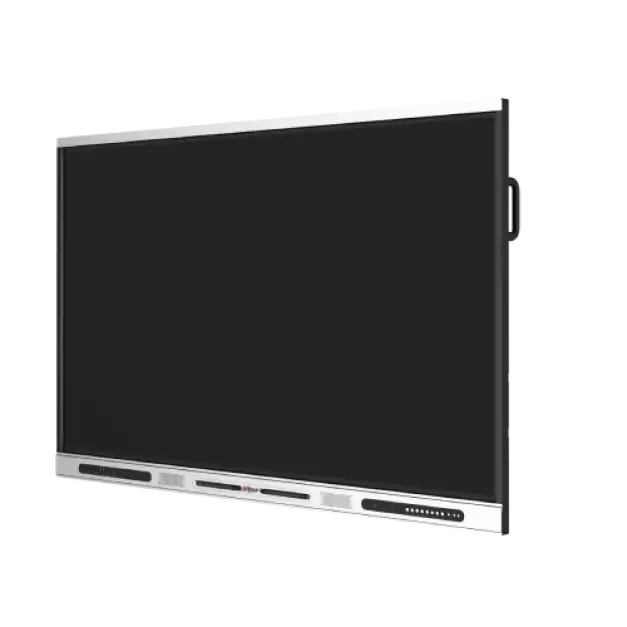

Dahua LPH86-ST420 86'' 4K Smart Interactive Flat Panel Display

Dimensions (W x D x H)

1,953.2 mm × 93.0 mm × 1,187.9 mm (76.90" × 3.66" × 46.77")

Weight

68 kg (149.92 lb)

Others

Holes Distance: 800 mm × 400 mm (31.50" × 15.75")

Power

200 W (typ.); 400 W (max.)

Active Screen Size

86"

Power Requirements

100–240 VAC, 50/60 Hz

Manufacturing Warranty

3-years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue)

Display Format Native Resolution

4K DLED (3840x2160)

Aspect Ratio

16:09

Picture Response Time

8 ms

Refresh Frequency

60 Hz

Display Colors

1.07 B

Brightness (typical)

400 cd/m² (typ.)

Contrast Ratio

1200

Viewing Angle

178° / 178°

Life Time

50,000 hours

Others

4 mm Anti-dazzle tempered glass

Touch Point

Android: 32, Windows: 40

Interpolation Resolution

Touch Resolution: 32767 × 32767

Others

Touch Technology Type: Infrared touch technology Attachment Method: Zero Air Gap Response Time: ≤10 ms Touch Points: Android: 32, Windows: 40 Touch Accuracy: ± 1 mm (over 90% Area) Valid Touch: 2 mm Touch Height: <2.5 mm Writing Mode: Finger + Pen (attaches magnetically) Communication Mode: USB Anti-light Interference: Anti-dazzle tempered glass Surface Hardness: 8H

System Version

Android 11

CPU	Quad-core A55

RAM	8 GB (optional 4 GB)

ROM	64 GB (optional 32 GB)

USB	Front Ports: USB 3.0 Type-B × 1 (Touch) USB 3.0 Type A × 2 Rear Port: USB 3.0 Type-B × 3 (Touch) USB 3.0 Type A × 2 Micro USB × 1

LAN	RJ45 In × 1 RJ45 Out × 1

HDMI	Front Ports: HDMI In × 1 (4K@60 Hz) Rear Port: HDMI In × 2 (4K@60 Hz) HDMI Out × 1

VGA	VGA In × 1 (1080p@60 Hz)

PC Audio In

Audio In × 1 (3.5 mm port, used to play sound with VGA)

Audio out

Audio Out × 1 (3.5 mm port)

Touch Output

Touch Technology: IR Touch

Dahua LPH86-ST420 86'' 4K Smart Interactive Flat Panel Display

The Dahua LPH86-ST420 86'' 4K Smart Interactive Flat Panel Display for Education includes a strong 4-core CPU, up to 8 GB RAM, and 64 GB storage capacity. With a high-precision infrared frame with a 2 mm identification diameter and a 4K high-definition DLED module, this whiteboard will provide you with an outstanding experience when writing, managing the whiteboard, and displaying material on it. It has Wi-Fi screen sharing, file management, HD display, scan & go, and many AI functions to improve your experience. You may use this whiteboard to update your classes.

4K HD Display

The Dahua LPH86-ST420 86'' Smart Interactive Flat Panel Display The 4K HD display produces a clean image in rich, vibrant colors with a resolution of up to 3840x2160.

AI Recognition of Drawings

Straight lines, arrow-straight lines, arrow-dotted lines, triangles, parallelograms, trapezoids, rectangles, pentagons, circles, cylinders, pentagrams, semicircles, and ellipses are all recognized.

File Management

The Dahua LPH86-ST420 can manage and use Office files, picture, video, and audio files, as well as file formats like PDF and TXT.

Screen Down Reachability

The device allows you to lower the screen to a third of its full height, putting the entire screen within reach.

Screen Sharing

The Dahua LPH86-ST420 with material on your screen may be freely shared with one other device via a connected connection.

Wireless Screen Sharing

The Dahua LPH86-ST420 86'' Smart Interactive Flat Panel Display provides wireless screen sharing, interactive operations between two screens, and reverse broadcasts in addition to simple file sharing. It also offers screen grouping (multiple transmission), host mode (for overall permission management), real-time transmission of photographs, videos, and audio from the mobile phone's wireless camera to the device, and split-screen mode, which allows up to 9 splits to be displayed on the same screen.

Buy Dahua LPH86-ST420 86'' 4K Smart Interactive Flat Panel Display from the best Interactive Flat Panel Display Shop in BD

In Bangladesh, you can get original Dahua LPH86-ST420 86'' 4K Smart Interactive Flat Panel Display From Basictech BD. We have a large collection of the latest Dahua Interactive Flat Panel Display to purchase. Order Online Or Visit Basictech BD Shop to get yours at the lowest price. The Dahua LPH86-ST420 86'' 4K Smart Interactive Flat Panel Display Display comes with 3 years of warranty.
