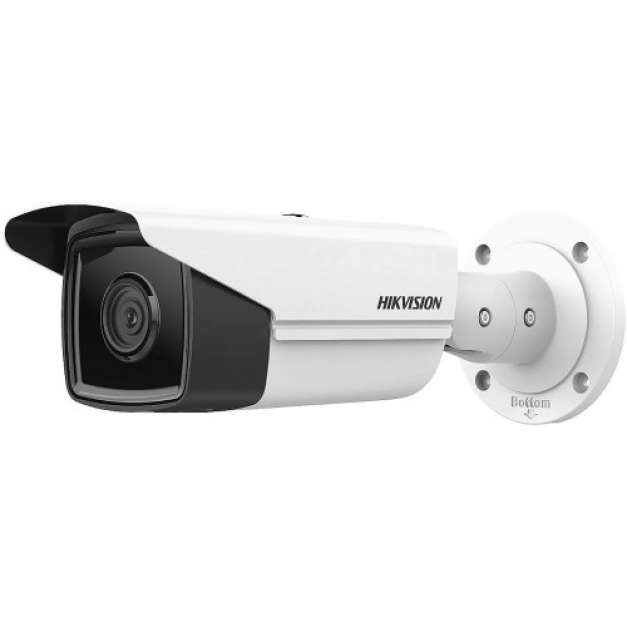

Hikvision DS-2CD2T43G2-4I 4MP IP Bullet Camera

Qty
+ -
Physical Specification
Dimensions (W x D x H) Camera: Φ 105 × 299.7 mm (Φ 4.1" × 11.8") Package: 386 × 156 × 155 mm (15.2" × 6.14" × 6.1")
Weight Camera: Approx. 1180 g (2.6 lb.) With Package: Approx. 1700 g (3.7 lb.)
Others Lens Mount: M12 Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° Day& Night: IR cut filter with auto switch Wide Dynamic Range: 120 dB Digital noise reduction: 3D DNR Focus: Fixed
Power Power Supply: 12 VDC ± 25%, PoE (802.3af Class3) Power Consumption: I8:12 VDC, 0.95A, max. 11.5W PoE (802.3af, 37V to 57V), 0.35A to 0.1A, max. 12.5W
Interface Communication Interface: 1 RJ45 10M / 100M Ethernet interface On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB Reset Button: Yes
Lens
Angle of View Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Others Day& Night: IR cut filter with auto switch Wide Dynamic Range: 120 dB Digital noise reduction: 3D DNR Focus: Fixed
Focal Length 2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° 8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
Camera Feature
Image Sensor 1/3" Progressive Scan CMOS Video Compression: H.265+/H.265/H.264+/H.264/MJPEG Video bit rate: 256Kbps~16Mbps Triple Streams: Yes
Effective Pixels Image- 4 MP Max. Image Resolution: 2688 × 1520 Frame Rate: 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) Image Enhancement: BLC/3D DNR/ROI/HLC Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser Target Cropping: No ROI: 1 fixed region for main stream and sub-stream Day/Night Switch: Day/Night/Auto/Schedule
IR Distance Up to 80 m IR range
Others Behavior Analysis: Line crossing detection, intrusion detection Line Crossing Detection: Cross a pre-defined virtual line Intrusion Detection: Enter and loiter in a pre-defined virtual region Detection/Recognition: Face Detection

Hikvision DS-2CD2T43G2-4I 4MP IP Bullet Camera

Hikvision DS-2CD2T43G2-4I is a 4MegaPixel IP Bullet Camera. It offers high-quality imaging with 4 MegaPixel and 2688 x 1520 pixel resolution. It has AcuSense with Built-in Audio and EXIR 2.0 Smart IR, up to 80 M. The lens used is a 4 mm Fixed Camera Lens. The Sensor is a 1/3 " Progressive Scan CMOS. It can deliver clear imaging against strong backlight due to 120 dB WDR technology. It also has efficient H.265+ compression technology. this camera has IP67 water and dust-resistant rating. With the Progressive Scanning system; the Matrix size is 4 Mpx. The size of the Lens is 2.8 mm and the viewing angle is around 103 degrees. The Compression supported is H.265+ / H.265 / H.264+ / H.264 / MJPEG With a 80M Range of IR illumination. It can support Micro SD memory cards up to 256GB support for local recording. The mainstream frame rate is 25 fps @ 4 Mpx. The network interface is 10/100 Base-T, RJ-45. Supported Network protocols are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour, SSL / TLS, PPPoE. It supports high-efficiency infrared LEDs technology, which evenly covers the whole plan of both central vantage points of the scene as well as the corners. For the Day/Night mode, It has ICR Movable InfraRed filter with AGC or Automatic Gain Control. The Anti-Flicker technology eliminates the tiring eyes flickering image effect. For the Focal Length & FOV; The 4 mm, horizontal FOV is 84°, vertical FOV is 45°, diagonal FOV is 100°. It uses an M12 Lens mount. With a Fixed Iris Type, it has an F1.6 Aperture. With the Intelligent Image, AnalysisThis camera needs PoE (802.3af), 12 V DC / 710 mA. While the Power consumption is ≤ 9.5 W @ PoE (802.3af) and ≤ 8.5 W @ 12 V DC. The Compact housing is Aluminum Alloy. The DORI Rating is 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m. For Video Compression The mainstream is H.265/H.264/H.264+/H.265+; the sub-stream: is H.265/H.264/MJPEG and the third stream is H.265/H.264. Hikvision DS-2CD2T43G2-2I 4MP IP Bullet Camera offers a 01-year warranty.
