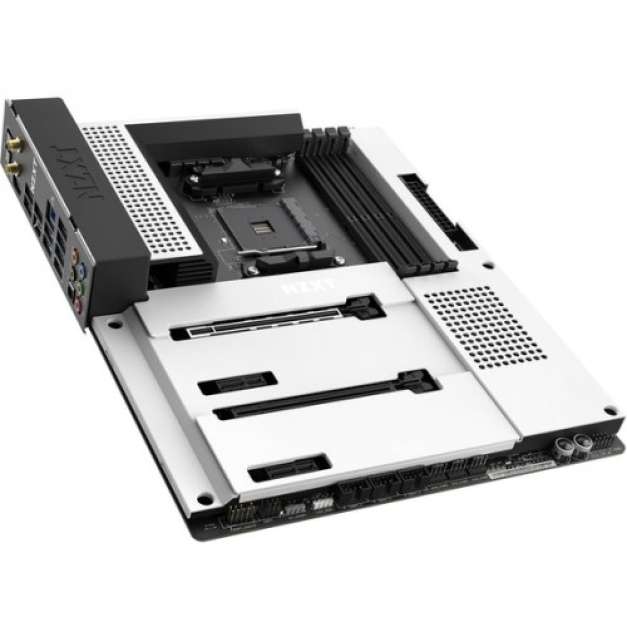

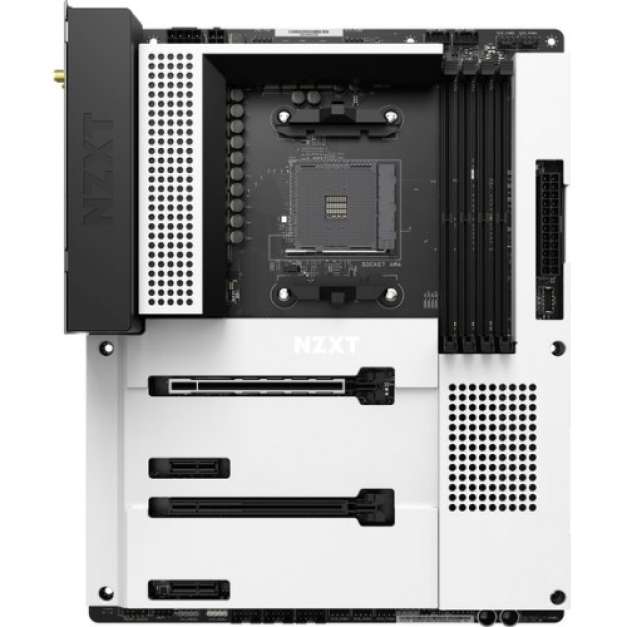

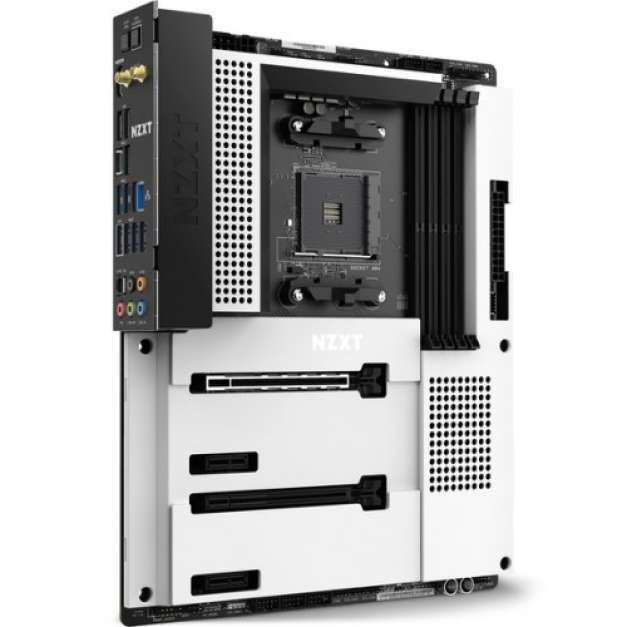

NZXT N7 B550 Matte White AMD AM4 ATX Wi-Fi Gaming Motherboard

Qty
+ -
Expansion Slots
PCI 1x PCIe x16 (x16 mode) 1x PCIe x16 (x4 mode) 2x PCIe 3.0 x1
Basic Information
Audio Realtek ALC1220 Codec 8-Channel High Definition Audio 32-bit / 192kHz DAC Playback Nichicon Fine Gold Series Capacitors
Supported CPU AMD Socket AM4 Ryzen Processors (3000, 4000, and 5000 Series Processors)
Chipset AMD B550
Form Factor ATX
Memory Specifications
Type DDR4
Slot 4 x DIMM Slots (Dual-Channel Memory Architecture)
Supported Memory OC Frequency (Vermeer CPUs): 4666+ MHz OC Frequency (Matisse CPUs): 4666+ MHz OC Frequency (Renoir APUs): 4733+ MHz Base Frequency: 3200/ 2933/ 2667/ 2400/ 2133 Type: ECC & non-ECC, un-buffered memory XMP Support
Maximum Memory 128GB
Graphics Specifications
Graphics AMD Radeon Vega Series Graphics in Ryzen Series APU HDMI Max Resolution: 4096x2160@60Hz Supports Microsoft PlayReady AMD 2-Way CrossFireX Technology
Max Shared Memory 16GB with 32GB installed
Warranty
Manufacturing Warranty 3 years

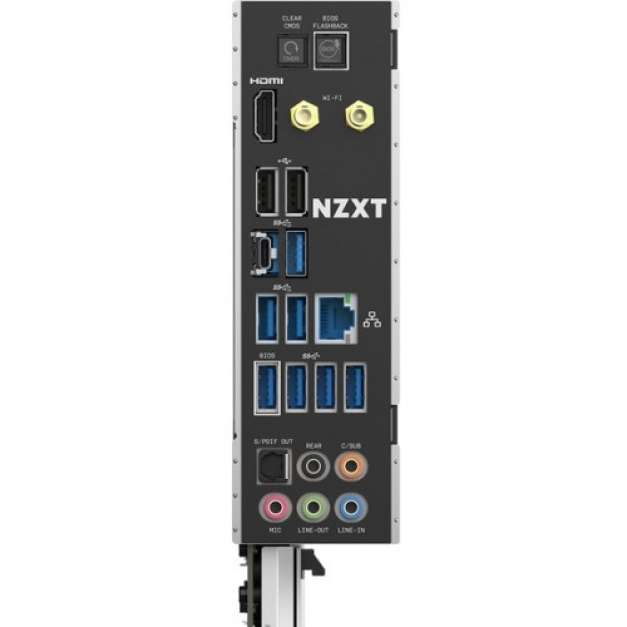

Connector & Ports
HDMI 1 x HDMI 2.1 Port
USB (s) 1x USB 3.2 Gen 2 (Type-C) 3x USB 3.2 Gen 2 (Type-A) 4x USB 3.2 Gen 1 (Type-A) 2x USB 2.0
LAN Port (s) Realtek RTL8125BG 2.5G 1x LAN (RJ45) Port
Audio 1x 5.1-Channel Audio Jacks
Internal I/O Ports 1x M.2 (M Key), Type 2242/2260/2280 1x M.2 (E Key) (For wireless cards) 6x SATA 6Gbps Ports 1x USB 3.2 Gen 2 Header (Type-C) 1x USB 3.2 Gen 1 Header 3x USB 2.0 Header 1x Front Panel Audio 1x CPU_FAN Connector 1x AIO_PUMP Connector 5x SYS_FAN Connector 2x NZXT RGB LED Header 1x 5V ARGB Header 1x 12V RGB Header 1x 24-pin EATX Power 1x 8-pin ATX 12V Power 1x 4-pin ATX 12V Power 1x Power Button 1x Reset Button 4x POST LEDs
Wireless Communication module Intel Dual-Band Wireless AX210 Wi-Fi 6E 802.11 a/b/g/n/ac/ax Protocol Frequency Bands: 2.4 / 5 / 6GHz MU-MIMO Support Bluetooth V5.2

NZXT N7 B550 Matte White AMD AM4 ATX Wi-Fi Gaming Motherboard

The NZXT N7 B550 Matte White Gaming Motherboard comes with WiFi 6E connectivity. This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B550 chipset. It is compatible with 3rd Gen AMD Ryzen processors (3000, 4000, and 5000 Series Processors). It supports memory overclocking up to 4600+ MHz and XMP. It has Two M.2 connectors for storage devices. It supports Multi-GPU support with AMD CrossFireX Technology. It is equipped with Intel Wi-Fi 6E wireless connectivity and Bluetooth V5.2. It offers Digital RGB lighting control through NZXT CAM. Digital fan control for fan profiles within NZXT CAM for seven independent fan channels. It has 8-channel high-definition audio. The NZXT N7 B55 comes with 3 years of warranty.
