Redragon Diamond Storm CA903 Pro RGB Gaming Casing

Type

Mid-tower

Front Panel

Tempered glass with coating film. The front panel has three large 120mm RGB fans, controlled by the included three port RGB control box.

Tempered Glass Panel

Left side, right side and front panels

Motherboard Support

EATX, ATX, Micro-ATX and Mini-ITX

Color(s)

Black

Dimensions

430 (Height) x 200 (Length) x 400 (Width) mm

Front Ports

Two Real USB3.0 and one USB2.0, With a normal Microphone port with HD Audio Supported.

Expansion Slots

three 3.5″ HDD ports and three 2.5″ SSD ports, with space for further expansion to another two 2.5″ SSD trays

Radiator Support

upto 160mm fan based radiators

Fan Support

Cooler fan Front: 3 RGB 120mm Fan, Rear: 1 RGB 120mm Fan, TOP: 120mm sized 2 RGB

Pre- Installed Fans

3 x 120mm RGB Pre- Installed Fans in Front

Drive Bays

three 3.5″ HDD ports and three 2.5″ SSD ports, with space for further expansion to another two 2.5″ SSD trays

I/O Port

Two Real USB3.0 and one USB2.0, With a normal Microphone port with HD Audio Supported

Weight

5 kg (with fans)

Maximum CPU Cooler Height

up to 160mm

Maximum Graphics Card Length

up to 380mm

Side Panel

Left Sideboard : 4.0mm Tempered Glass – Coating Film Right Sideboard : 0.65mm SPCC and Coating RGB 7 color Fans with 3 rings

Manufacturing Warranty

No warrenty

Redragon Diamond Storm CA903 Pro RGB Gaming Casing

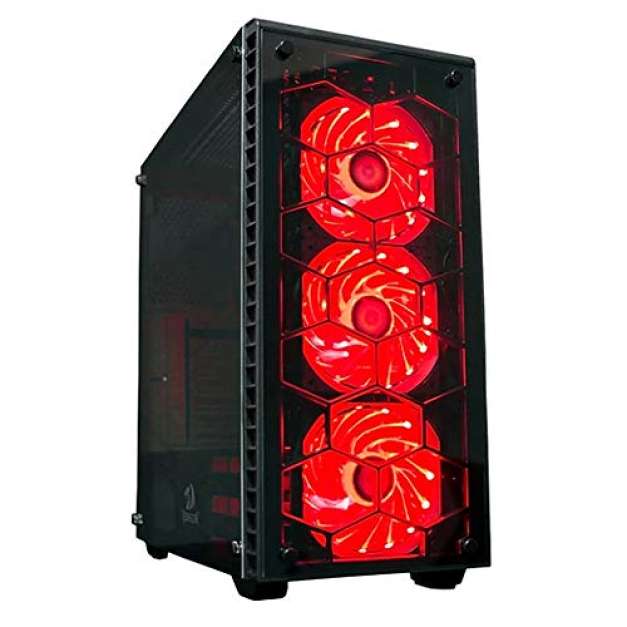

The Redragon Diamond Storm CA903 Pro EATX Mid-Tower Tempered Glass RGB Gaming Chassis is manufactured to be durable, stylish and be compatible with a wide array of motherboard form factors. Redragon Diamond Storm CA903 Pro is a Gaming Casing that supports EATX, ATX, Micro-ATX and Mini-ITX form factors and has enough space for hosting a GPU’s of up to 380mm. This chassis has a both front and side panels made of tempered glass with durable coating film.

RGB lighting Fans

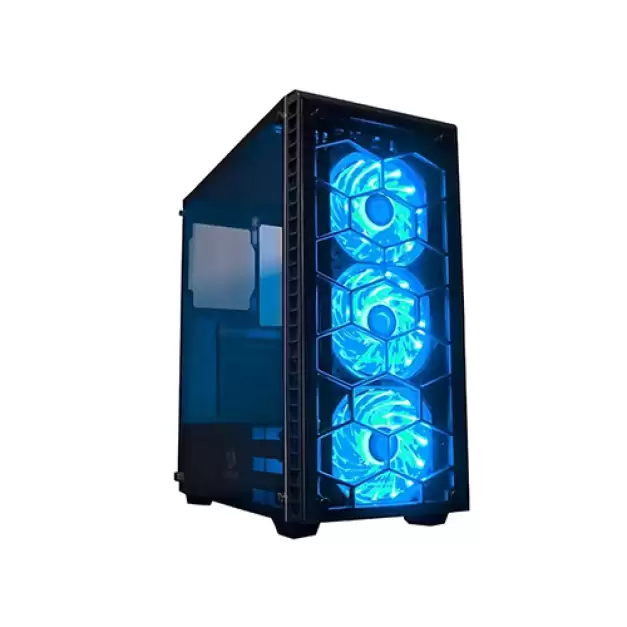

The front panel of the Diamond Storm is illuminated by three large Redragon 120mm RGB fans, which are controlled by a three port RGB control box.The box is included with it.

Designed for expansion

Redragon understands that gamers want to be able to upgrade their machine and have designed this chassis with a total of three 3.5″ HDD ports and three 2.5″ SSD ports with space for further expansion to another two 2.5″ SSD trays. The structure size is 400 x 200 x430 mm. The materials used are the best ones possible. The side Board is made of SPCC which is 0.65mm thick. The rest including internal structue made of SPCC in 0.50mm Panel. The panel is made with ABS Plastic and 4.0 mm Tempered Glass coating film. The i/o panel has Two Real USB3.0 and one USB2.0, With a normal Microphone port with HD Audio Supported. The supported motherboards are EATX, ATX, Micro-ATX, Mini-ITX Max. The VGA card length supported is 380mm. It supports a CPU Cooler of 160mm max. In addition it has three HDD3.5 and three SSD2.5 inch expansion ports with a Back Side expansion capacity for two SSDs.

Cooler fan and other features

The maximum fan capacity is Three Front fan of 120mm and one Rear 120mm Fan. The measure for the top part can host two 120mm fans with PSU place cover in the Left Sideboard. The left sidebar has 4.0mm thick Tempered Glass Coated film. The right sideboard has 0.65mm SPCC with an RGB 7 color Fans with 3 rings that is already installed. It also has three Front 12cm 15 LED RGB Fan and a 3 in 1 Control Box
The casing weights 5 kg with coolers and the dimensions are 430 (Height) x 400 (Length) x 200 (Width) mm. It has no warranty.

Reviews

Reviews are very important to understand a product, there is a lot of information available about the product, but online reviews of this product are not published.
