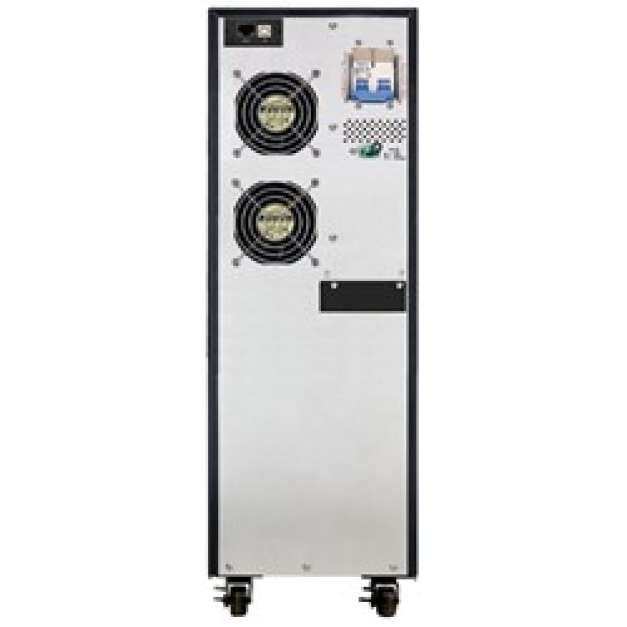

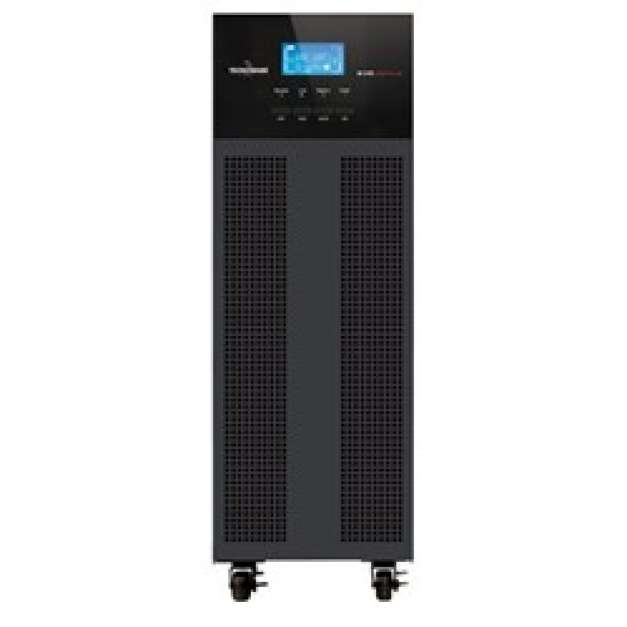

Tecnoware FGCEVDP6003MM 6 KVA Online UPS (Origin Italy)

Output

Peak Power

15 min

DC Output

Voltage Regulation at %100 ±2% linear load (On-Line and Battery mode) Voltage THD at rated linear load <3% (linear load), <6% (non-linear load)

Warranty

Manufacturing Warranty

01 Year Warranty

Input

Voltage

Nominal voltage 208Vac/220Vac/230Vac/240Vac Input voltage range 176Vac-300Vac dal 50% al 100% di carico, 110Vac-300Vac fi no al 50% di carico

Frequency Range

Nominal frequency 50/60 Hz (selectable) Input frequency range (On-Line mode) ±7%

Current

0,99

Others/ Special Features

Capacity Nominal power 6 KVA Active power 5.4 KW Load Capacity Overload capability (Line mode) 110% for 30 minutes, 130% for 5 minutes, >130% for 10 seconds Overload capability (Battery mode) 110% for 3 minutes, 130% for 30 seconds, >130% for 10 seconds Input Voltage Input voltage range 176Vac-300Vac dal 50% al 100% di carico, 110Vac-300Vac fi no al 50% di carico Frequency (Battery Mode) 50/60 Hz Noise Level < 48 dBA to 1 m Battery 12V 12*9Ah, Lead acid, sealed Rectifier Type Yes
