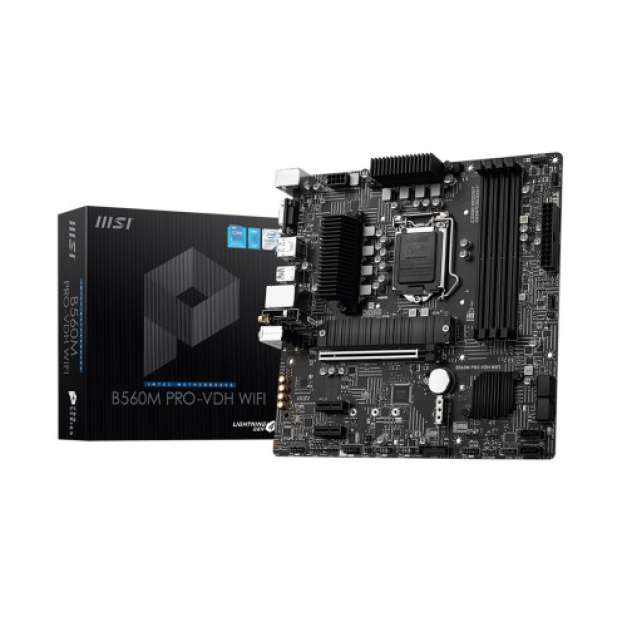

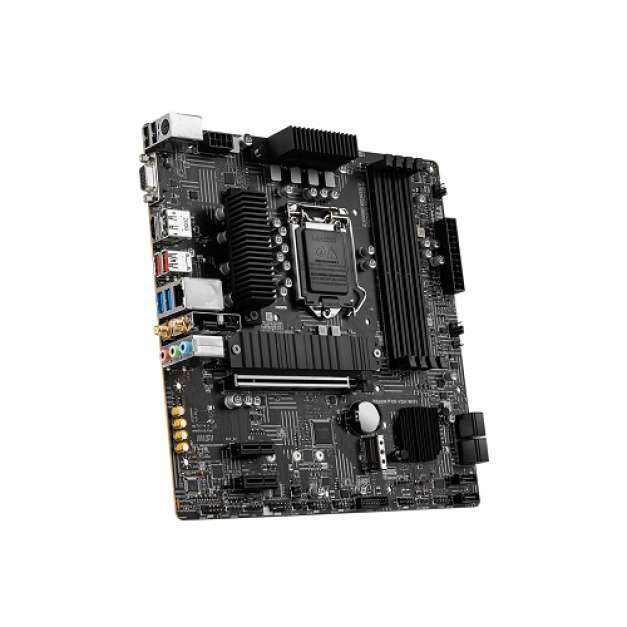

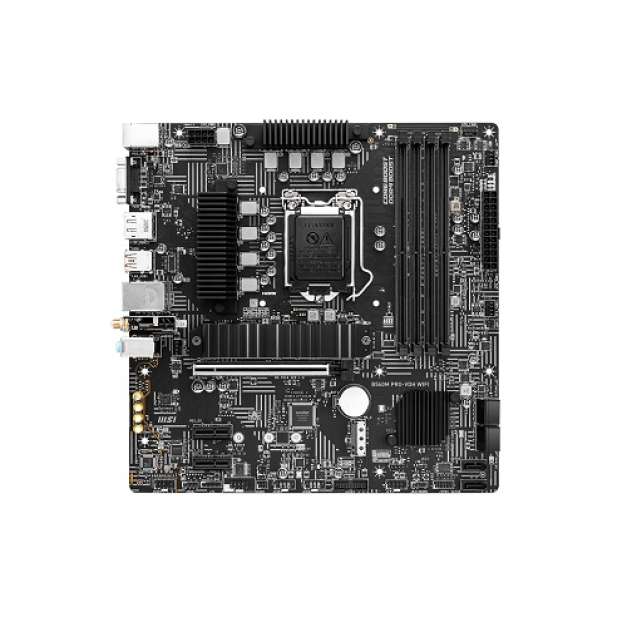

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard (Global)

Qty
+ -
Expansion Slots
PCI 1x PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset)
M.2 Socket 2x M.2 slot (Key M)
Basic Information
Audio 7.1-Channel High Definition Audio
Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
Chipset Intel B560 chipset
BIOS 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Memory Specifications
Type DDR4
Slot 4x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory up to 128GB
Graphics Specifications
Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
Warranty
Manufacturing Warranty 03 years warranty

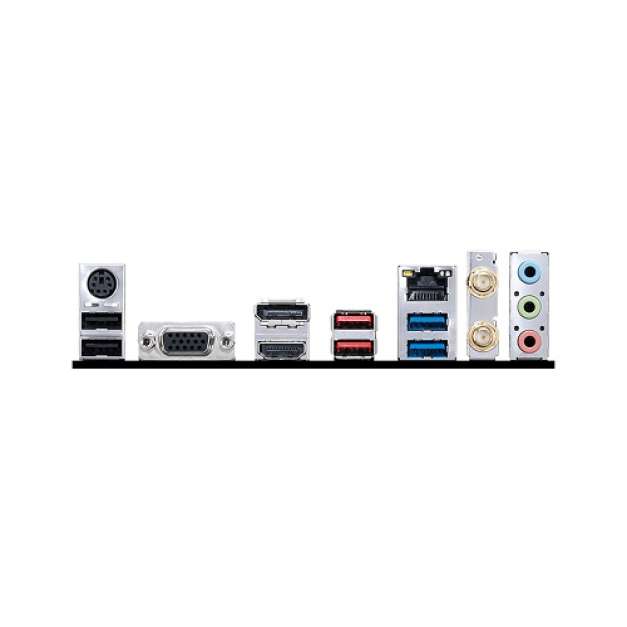

Connector & Ports
HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
USB (s) 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s) 1x Realtek 8125B 2.5Gbps LAN controller
Supported Storage - 6x SATA 6Gb/s ports (From B560 chipset) - 2x M.2 slot (Key M) - M2_1 slot - Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) - Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 - Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_2 slot2 (from B560 chipset) - Supports up to PCIe 3.0 x4 - Supports 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready - Supports Intel Smart Response Technology for Intel Core processors
Audio Realtek AL897 Codec 7.1-Channel High Definition Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector
TPM (Trusted Platform Module) 1 x TPM module connector
Display Port (s) 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard (Global)

The MSI motherboards comes with tons of convenient and smart design for DIY users. In this motherboard, countless system tuning and troubleshooting tools are push the system to new height and satisfy even the most demanding tweaker.

The latest MSI B560M PRO-VDH WIFI Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This motherboard featured with Core Boost with premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN you can Upgraded network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost, reward your ears with studio grade sound quality. This motherboard has Steel Armor that Protecting VGA cards against bending for better performance, stability and strength.

This latest MSI PRO series motherboards are designed for professional and satisfy workflow. The MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen mATX Motherboard has 03 years of warranty.
