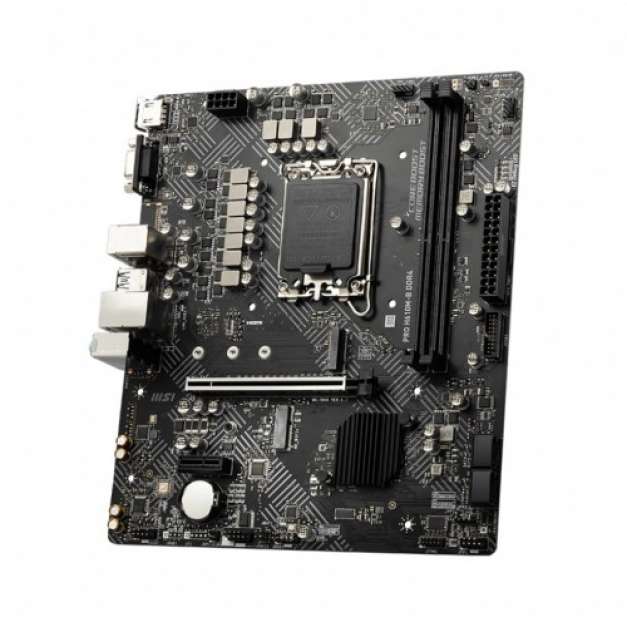

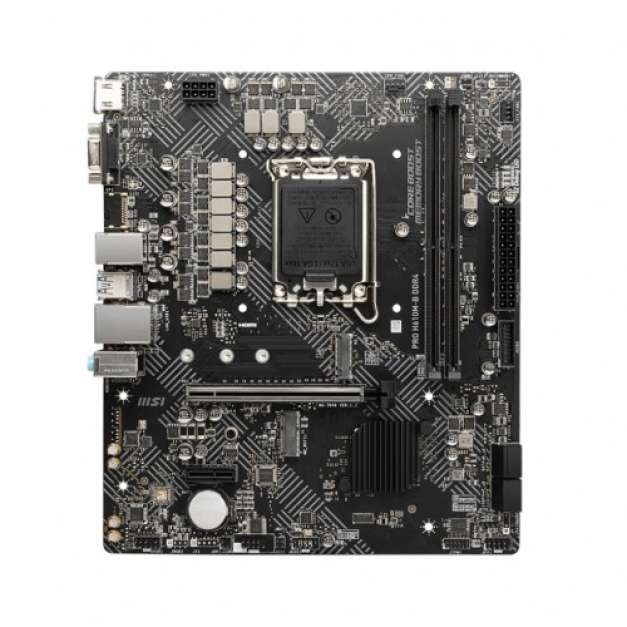

MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard

PCI	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)

Audio

Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio

Supported CPU

Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700

Chipset

Intel H610 Chipset

Form Factor

M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

Type

DDR4

Slot	2x DDR4 memory slots

Supported Memory

3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

Support up to 64GB

Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

Manufacturing Warranty

3 years

HDMI	1x HDMI 2.1

USB (s)

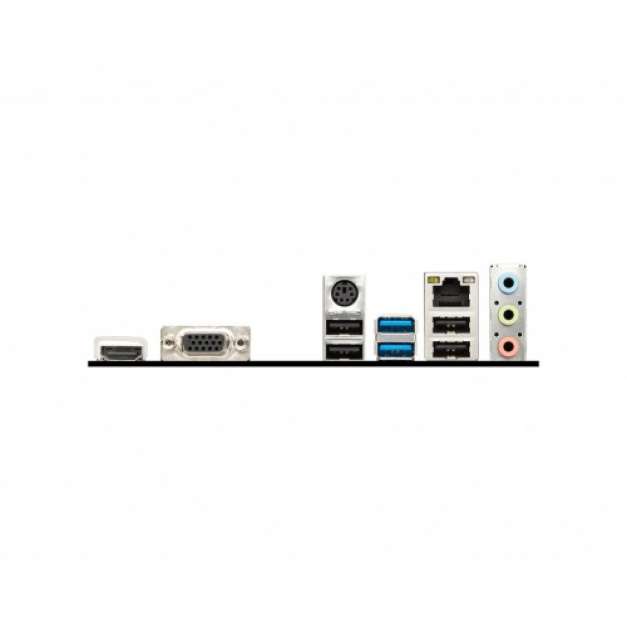

Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

LAN Port (s)

1x Intel I219V 1Gbps LAN controller

Supported Storage

4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors

Internal I/O Ports

POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 4x EZ Debug LED

TPM (Trusted Platform Module)

1x TPM module connector

VGA (s)

1x VGA port

MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard

The MSI PRO H610M-B DDR4  features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays. The MSI PRO H610M-B DDR4  motherboard comes with 3 years of warranty.
