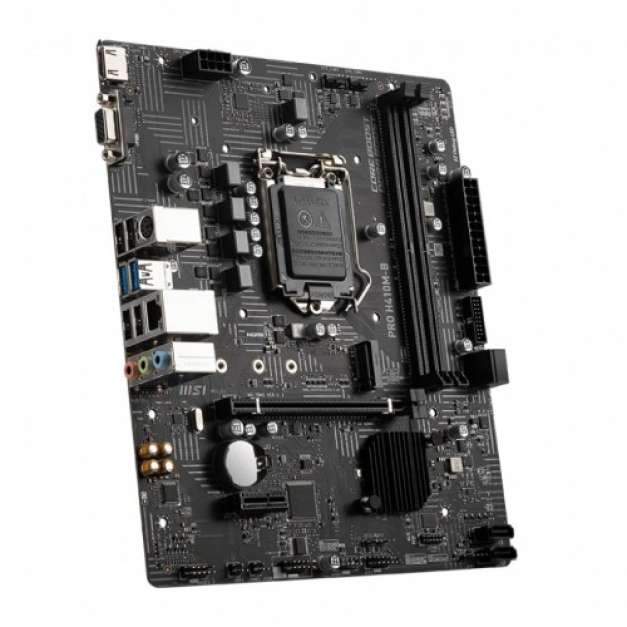

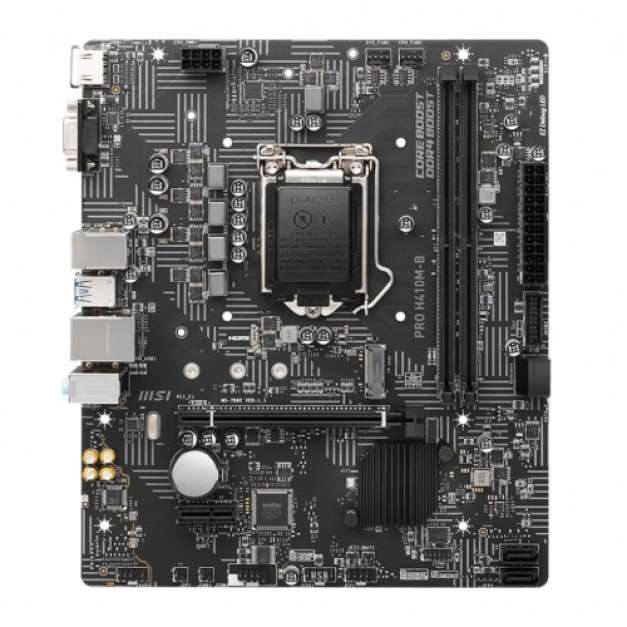

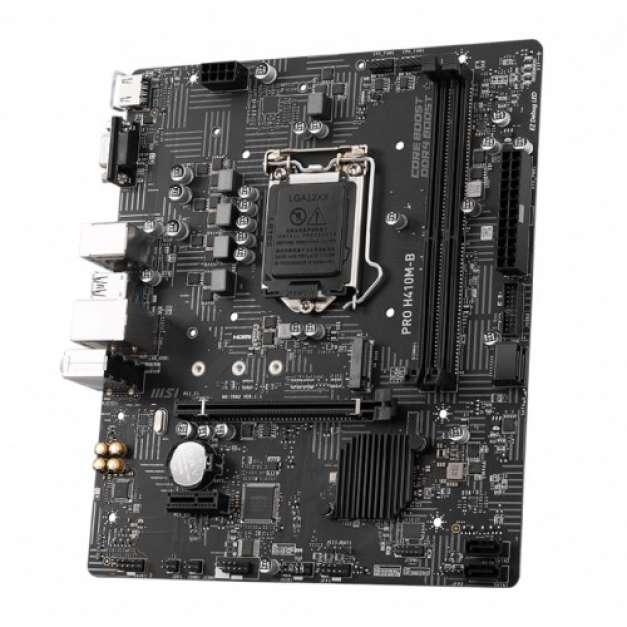

MSI PRO H410M-B 10th Gen Micro-ATX Motherboard

Qty
+ -
Expansion Slots
PCI 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket 1x M.2 slot (Key M, from H510 chipset)
Basic Information
Audio Realtek ALC897/ ALC892 Codec 7.1-Channel High Definition Audio
Supported CPU Supports 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200
Chipset Intel H510 Chipset
Form Factor m-ATX Form Factor 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm)
Memory Specifications
Type DDR4
Slot 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Up to 64GB
Graphics Specifications
Graphics 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
Warranty
Manufacturing Warranty 03 Years

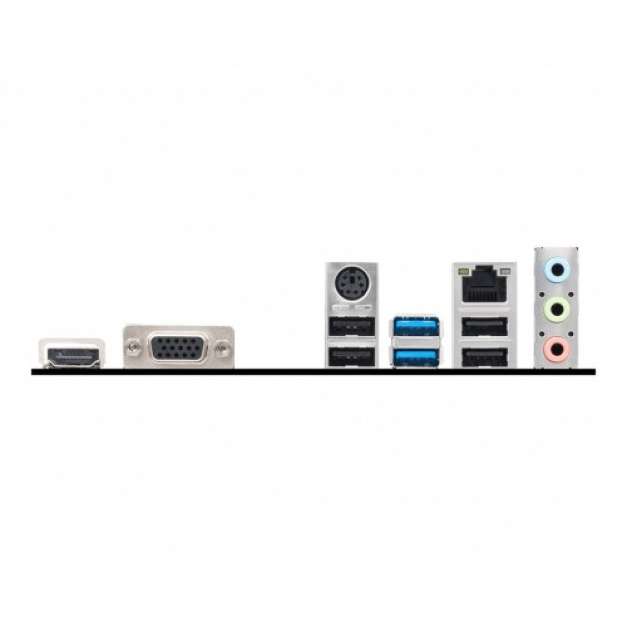

Connector & Ports
HDMI 1x HDMI 1.4 port
USB (s) Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Realtek RTL8111 Gigabit LAN controller
Supported Storage 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M, from H510 chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (support additional 2 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM (Trusted Platform Module) 1 x TPM module connector

MSI PRO H410M-B 10th Gen Micro-ATX Motherboard

The MSI PRO H410M-B Motherboard supports 10th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 2933(Max) MHz. This motherboard helps users work smarter by delivering an efficient and productive experience. It features tons of convenient and smart designs for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. It has a VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz. It also has an HDMI 1.4 port, supports a maximum resolution of 4K 30Hz. The MSI PRO H410M-B lets you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds. The most important thing about DIY is expandability. MSI PRO H410M-B features such as stable LAN,  faster storage and USB transfer speed, and other expandable connectors are ready to enlarge your flexibility. The MSI PRO H410M-B comes with a 1-year warranty.
