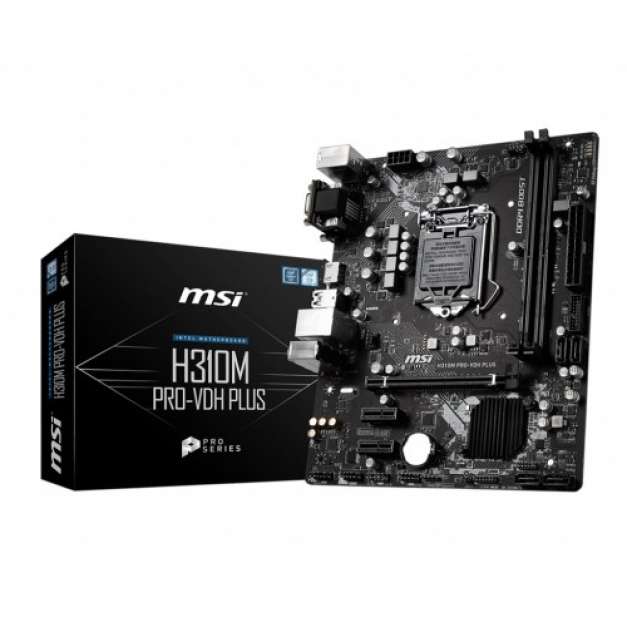

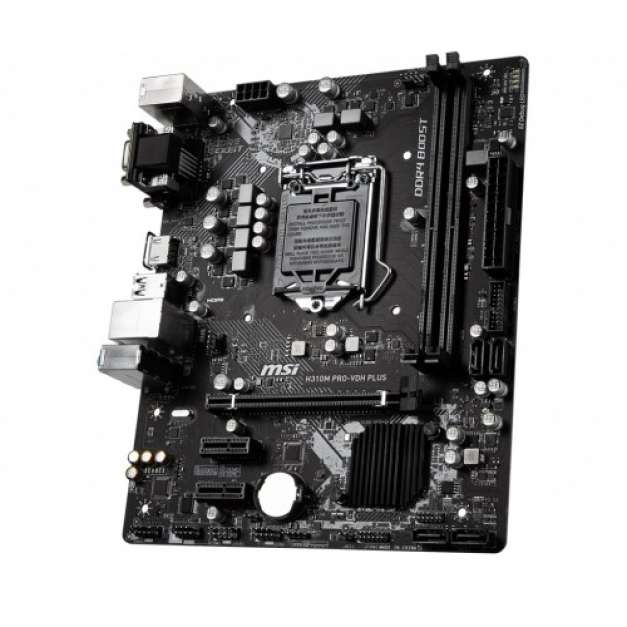

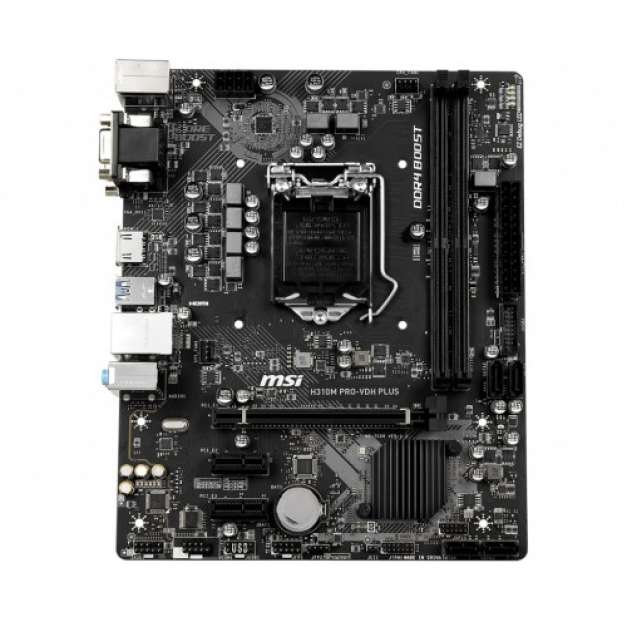

MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard

Qty
+ -
Expansion Slots
PCI 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
Basic Information
Supported CPU Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset Intel H310 Chipset
Form Factor 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Facto
Memory Specifications
Type Supports Dual-Channel mode
Slot 2 x DDR4 memory slots
Supported Memory Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC) Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 32GB
Graphics Specifications
Graphics 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H
Warranty
Manufacturing Warranty 03 years

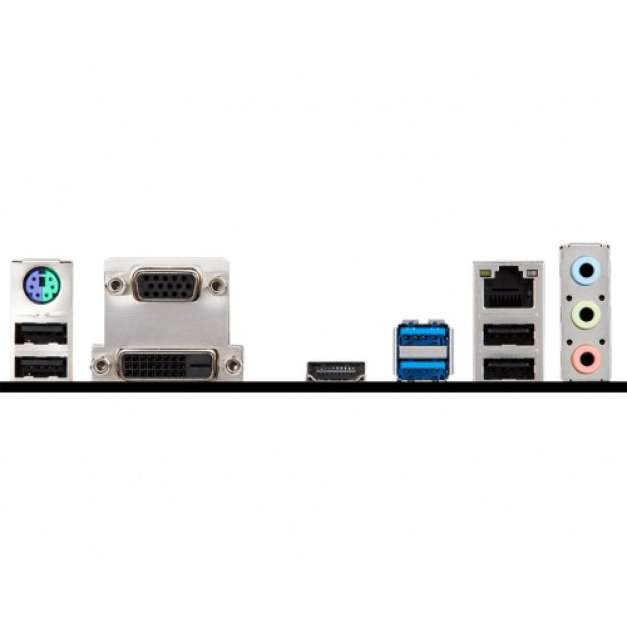

Connector & Ports
HDMI 1 x HDMI port, supports a maximum resolution of 4096x2160@30H
USB (s) 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
LAN Port (s) 1 x RTL8111H Gigabit LAN controller
Supported Storage Intel H310 Chipset 4 x SATA 6Gb/s ports Supports Intel® Rapid Storage Technology
Audio Realtek ALC887/ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector
TPM (Trusted Platform Module) 1 x TPM module connector
DVI-D (s) 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max. Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user. Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards. This motherboard is equipped with a HDMI port supporting the latest 4K Ultra-HD 4096×2160p resolution @ 24Hz to provide a breathtaking visual experience. Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes. Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data. MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclock ability and increased stability. Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds! With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard. We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance.

Reviews

Reviews are very important to understand a product, there is a lot of information available about the product, but online reviews of this product are not published.
