MSI Motherboard B560M PRO WIFI 10th and 11th Gen Micro ATX

PCI	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chpiset)

M.2 Socket

1x M.2 slot (Key M)

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Supported CPU

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200

Chipset

Intel B560 chipset

BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language

Form Factor

mATX Form Factor 9.3 in. x 8 in. (23.6 cm x 20.3 cm)

Type

DDR4

Slot	2 x DDR4 memory slots

Supported Memory

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory

support up to 64GB

Graphics

1x VGA port, supports a maximum resolution of 2048x1280 @60Hz, 1920x1200 @60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

Manufacturing Warranty

03 years warranty

HDMI

Yes

USB (s)

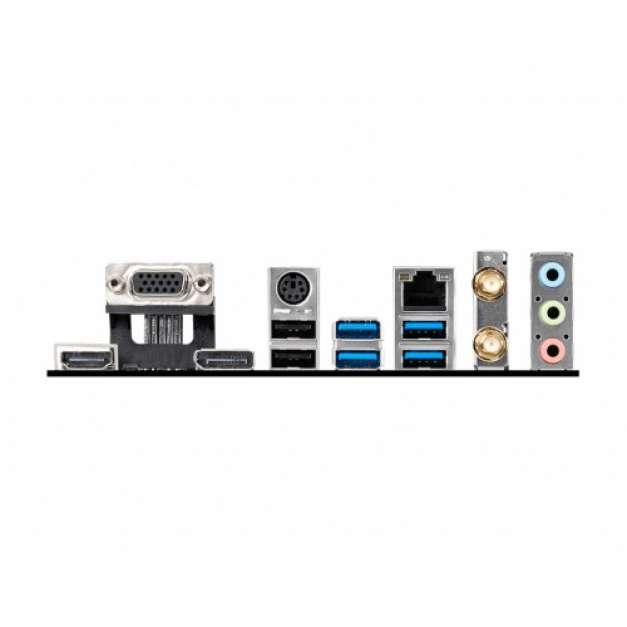

6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)

LAN Port (s)

1x Realtek 8125B 2.5Gbps LAN controller

Supported Storage

6x SATA 6Gb/s ports (From B560 chipset) Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Internal I/O Ports

1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector

TPM (Trusted Platform Module)

1x TPM module connector

VGA (s)

Yes

Display Port (s)

Yes

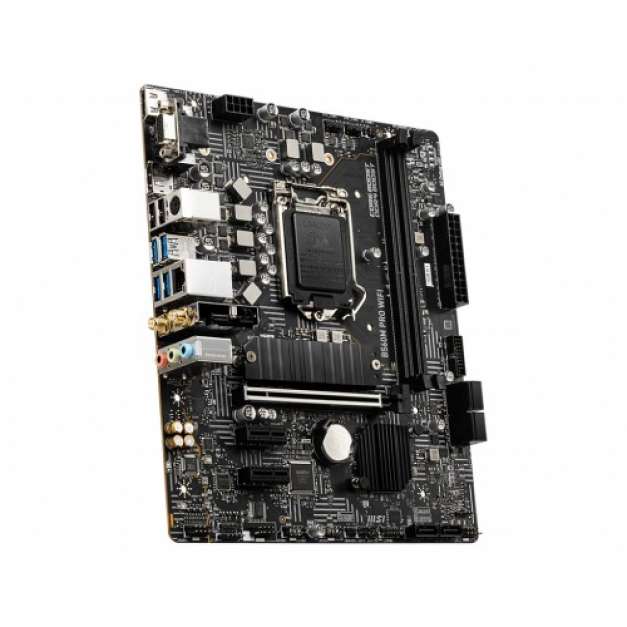

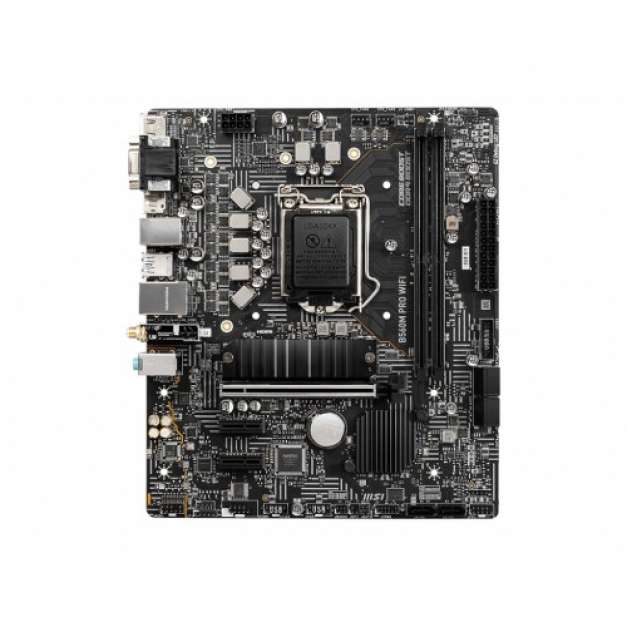

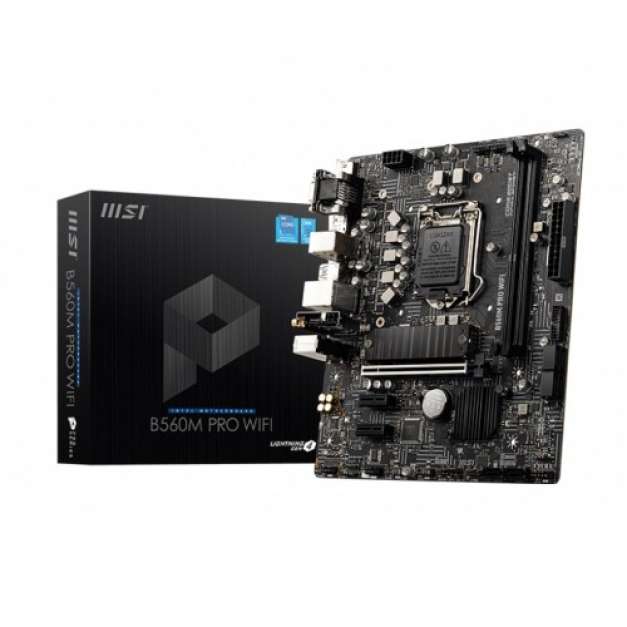

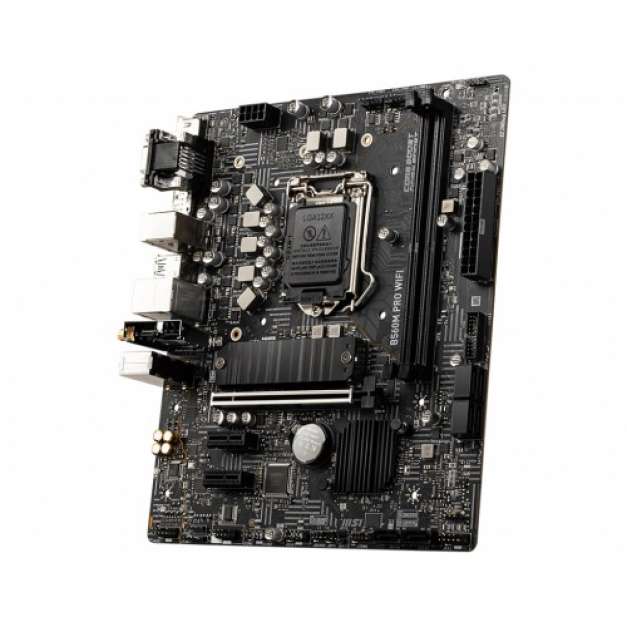

MSI B560M PRO WIFI 10th and 11th Gen Micro ATX Motherboard

MSI B560M PRO WIFI Micro ATX Motherboard supports with 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5200(OC) MHz. This motherboard comes with premium layout and digital power design to support more cores and provide better performance. Here, Advanced technology to deliver pure data signals for the best performance and stability, and also you can feel Lightning Fast Experience with PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. This motherboard comes with 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution, which helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection and also you can Reward your ears with studio grade sound quality with Audio Boost feature. Here Steel Armor design helps to protecting VGA cards against bending and EMI for better performance, stability and strength. In this motherboard, the Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. The 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. The latest MSI B560M PRO WIFI Motherboard has 3 years warranty.
