MSI Motherboard PRO B660M-E DDR4 12th Gen M-ATX

Qty
+ -
Expansion Slots
PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From B660 chipset) Supports PCIe 3.0 x1
M.2 Socket 1x M.2 slot (Key M, from B660 chipset) 1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core™ processors
Basic Information
Audio Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Supported CPU Supports 12th Gen Intel Core Processors, Pentium® Gold and Celeron Processors Processor socket LGA1700
Chipset Intel B660 Chipset
Form Factor M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Memory Specifications
Type DDR4
Slot 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory support up to 64GB
Graphics Specifications
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Warranty
Manufacturing Warranty 3 years warranty
Connector & Ports
HDMI HDMI (BACK PANEL PORTS)
USB (s) Intel B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V 1Gbps LAN controller
Internal I/O Ports 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
TPM (Trusted Platform Module) 1x TPM module connector
VGA (s) Yes (BACK PANEL PORTS)
Display Port (s) DisplayPort (BACK PANEL PORTS)

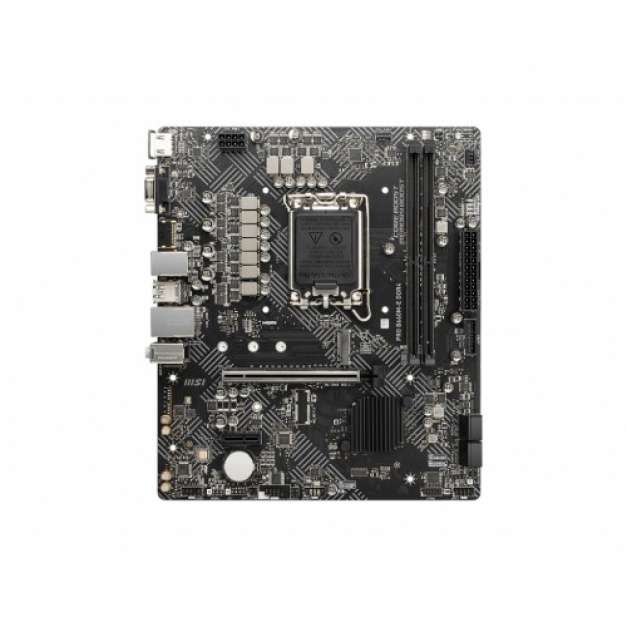

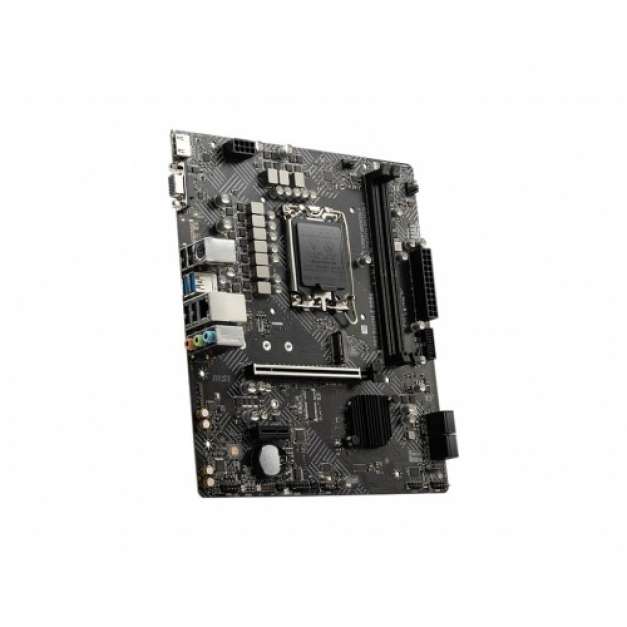

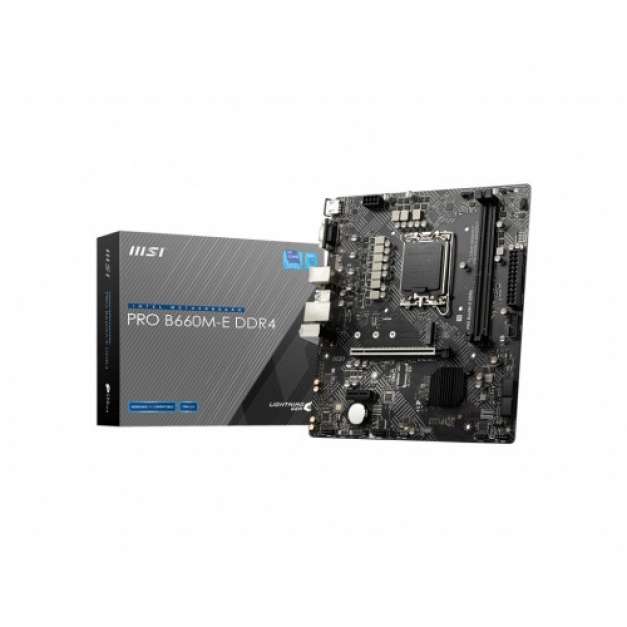

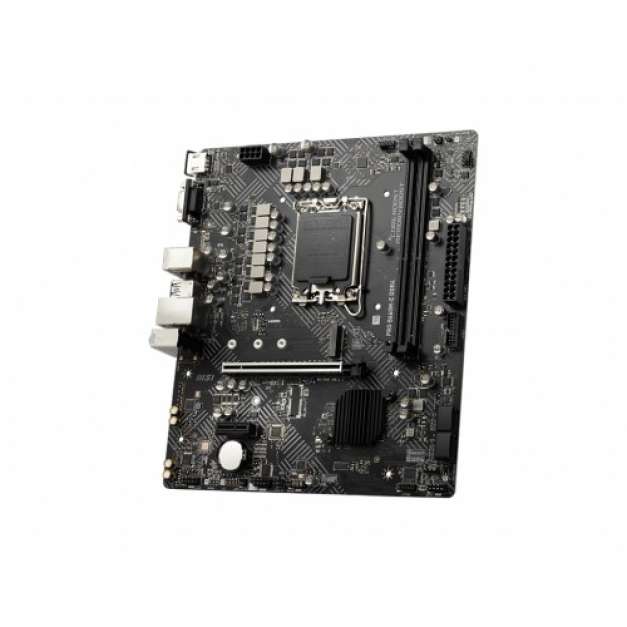

MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard

MSI PRO B660M-E DDR4 motherboard Supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4600+(OC) MHz. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, It will giving you the best online experience with low latency. With the premium layout and digital power design helps to support more cores and provide better performance, In this motherboard, Memory Boost featured with Advanced technology to deliver pure data signals for the best performance, stability and compatibility. It is also has Lightning Fast Experience: PCIe 4.0. The MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution, which comes with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, it also helps the motherboards to support the weight of heavy graphics cards. the motherboard has FROZR AI COOLING, it Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. This latest MSI PRO B660M-E DDR4 motherboard comes with 03 years warranty.

Reviews

Reviews are very important to understand a product, there is a lot of information available about the product, but online reviews of this product are not published.
