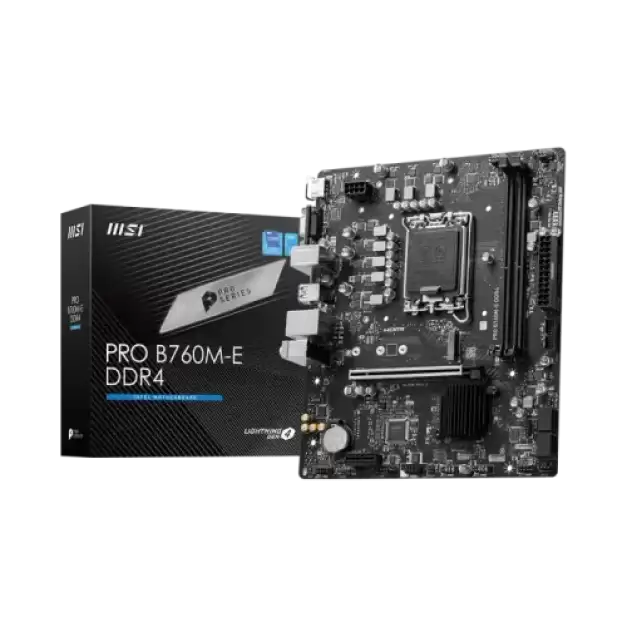

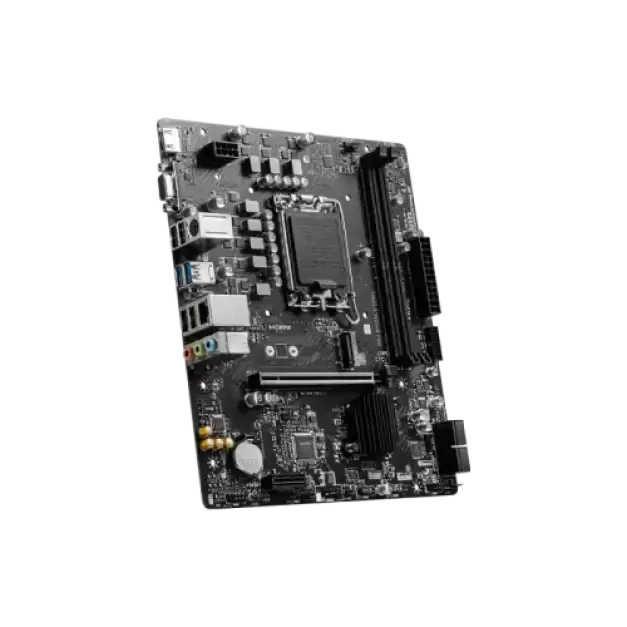

MSI PRO B760M-E DDR4 12th Gen & 13th Gen mATX Motherboard

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

Audio

Realtek ALC897 Codec 7.1-Channel High-Definition Audio

Supported CPU

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700

Chipset

INTEL B760

Form Factor

mATX 200mmx236.16mm

Type

DDR4

Slot

2

Supported Memory

4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

64GB

Graphics

1x HDMI Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Manufacturing Warranty

3 years

Special Features

4x EZ Debug LED

HDMI

1x HDMI

USB (s)

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)

LAN Port (s)

Realtek RTL8111H Gigabit LAN

Supported Storage

1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G

Audio

Audio Connectors

Internal I/O Ports

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports

TPM (Trusted Platform Module)

1x TPM pin header(Support TPM 2.0)

VGA (s)

1x VGA

RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

MSI PRO B760M-E DDR4 12th Gen & 13th Gen mATX Motherboard

The MSI PRO B760M-E is a micro-ATX motherboard with an LGA 1700 socket that supports 12th and 13th-generation Intel Core, Pentium Gold, and Celeron CPUs. For quicker performance, it supports DDR4 memory and has Dual Channel DDR4 4800+MHz (OC) capabilities. Core Boost, a premium layout, and a digital power architecture enable the motherboard to accommodate more cores and give higher performance. Memory Boost, an innovative technology that produces pure data signals for the highest performance, stability, and compatibility, is also incorporated. The MSI PRO B760M-E has PCIe 4.0 and Lightning Gen4 x4 M.2 for a lightning-fast experience. This enables faster data transmission rates and enhanced performance for gaming and other high-performance applications. The motherboard has AUDIO BOOST, which delivers studio-quality sound for the most immersive gaming experience. Steel Armor is also incorporated to prevent VGA cards from bending and EMI, resulting in improved performance, stability, and strength.

Buy MSI PRO B760M-E DDR4 12th Gen & 13th Gen mATX Motherboard best Motherboard Shop in BD

In Bangladesh, you can get the original MSI PRO B760M-E DDR4 12th Gen & 13th Gen mATX Motherboard From Basictech BD. We have a large collection of the latest MSI Motherboard to purchase for your Desktop Pc. Order Online Or Visit Now Basictech BD Shop to get yours at lowest price.The MSI PRO B760M-E DDR4 Motherboard comes with 3 years warranty.
