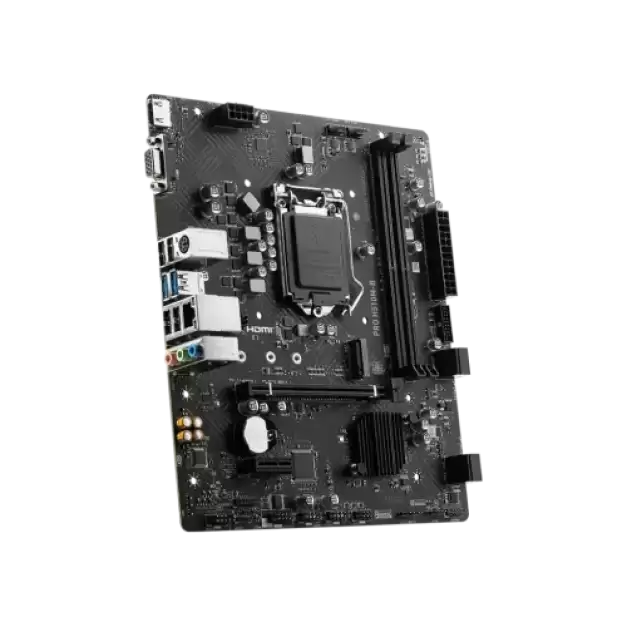

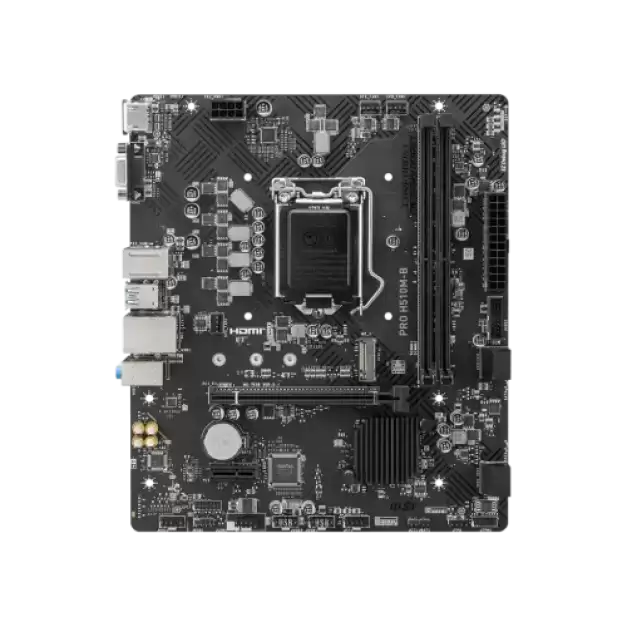

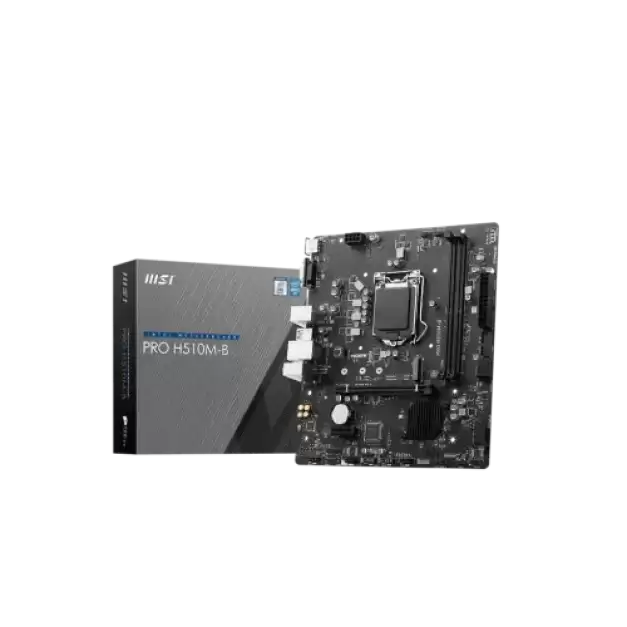

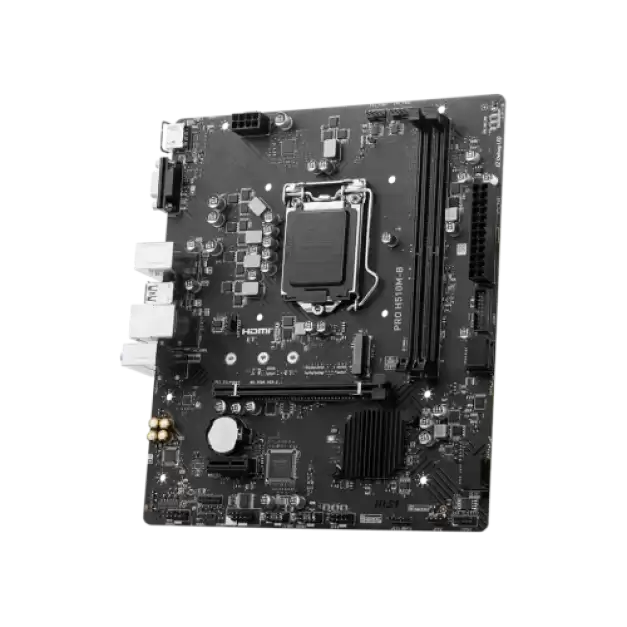

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek ALC897 Codec 7.1-Channel High Definition Audio

Supported CPU

Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

Chipset

INTEL H470

Form Factor

mATX 202mmx236mm

Type

DDR4

Slot

2

Supported Memory

Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)

Maximum Memory

64GB

Graphics

1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Manufacturing Warranty

3 years

Special Features

4x EZ Debug LED

HDMI	1x HDMI 1.4

USB (s)

4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)

LAN Port (s)

Realtek 8111H Gigabit LAN

Supported Storage

1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G

Internal I/O Ports

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports

TPM (Trusted Platform Module)

1x TPM pin header(Support TPM 2.0)

Display Port (s)

1x VGA

MSI PRO H510M-B 10th Gen Micro-ATX Motherboard

The MSI PRO H510M-B motherboard is a reliable and feature-packed option designed for 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It supports DDR4 memory with speeds up to 2933MHz (MAX), offering efficient multitasking and smooth performance. The MSI PRO H510M-B motherboard features Core Boost technology and provides a premium layout and digital power design to support more cores and deliver better overall performance. The MSI PRO H510M-B motherboard also features Audio Boost technology, providing studio-grade sound quality for an immersive audio experience. The motherboard offers protection to VGA cards against bending and electromagnetic interference (EMI), contributing to improved performance, stability, and strength.

Buy MSI PRO H510M-B 10th Gen Micro-ATX Motherboard from Basictech BD.

In Bangladesh, you can get original MSI PRO H510M-B 10th Gen Micro-ATX Motherboard From Basictech BD. We have a large collection of latest MSI Motherboard to purchase for your Desktop Pc. Order Online Or Visit Now Basictech BD Shop to get yours at lowest price. The MSI PRO H510M-B 10th Gen Micro-ATX Motherboard comes with 3 years warranty.
