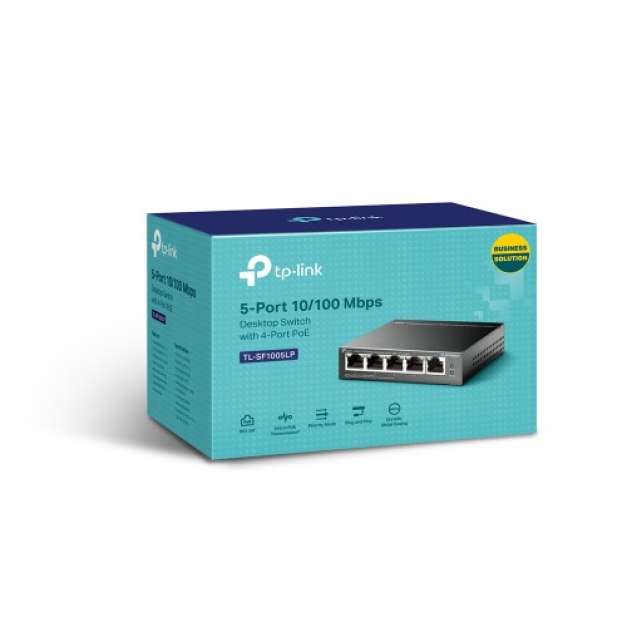

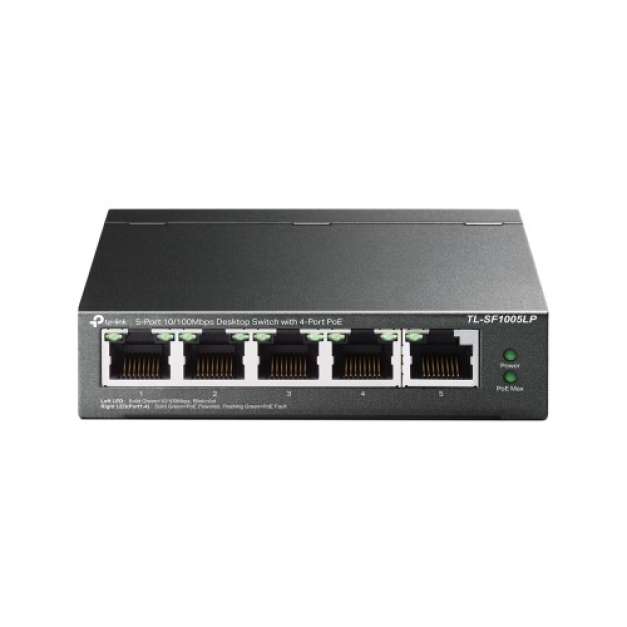

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Qty
+ -
Warranty
Manufacturing Warranty 1 Year Warranty
HARDWARE FEATURES
Dimensions (L x W x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Interface 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX
Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A) Max Power Consumption: • 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected)
Main Feature
Type Switch
Port 5
Network Standard 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Data Transmission Rate 10/100
Environment Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
MAC Address Table 2K
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

The TP-Link TL-SF1005LP Switch comes with 5× 10/100 Mbps RJ45 ports. It has 4× PoE ports that transfer data & power on individual cables. Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. It supports Plug and Play, with PoE Transmission for Surveillance up to 250 m. Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on. It features Intelligent Power Management. When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. It has a 1-year warranty.
