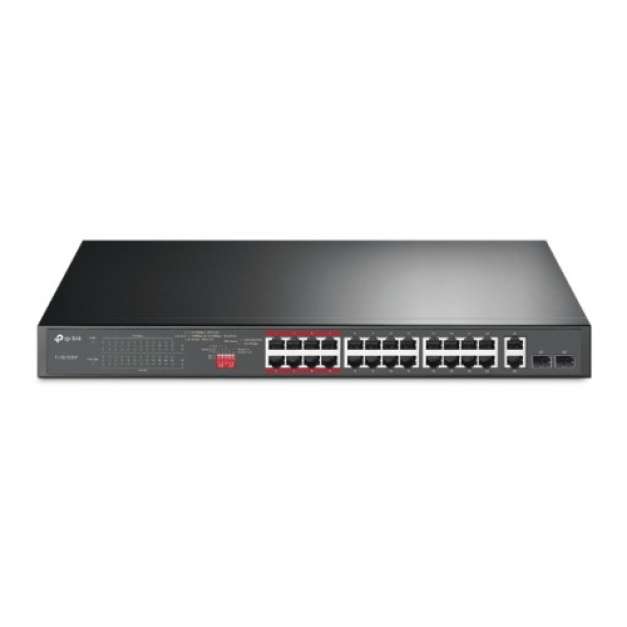

TP-Link TL-SL1226P 24-Port Gigabit Unmanaged PoE+ Switch

Qty
+ -
Warranty
Manufacturing Warranty 1-year warranty.
HARDWARE FEATURES
Dimensions (L x W x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Interface 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots
Power Supply 100-240 VAC, 50/60 Hz
Main Feature
Port Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W
Data Transmission Rate Backup Bandwidth: 8.8 Gbps Packet Forwarding Rate: 6.5472 Mpps
MAC Address Table 8 K
Transmission Method 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Advanced Functions Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control

TP-Link TL-SL1226P 24-Port Gigabit Unmanaged PoE+ Switch

The TP-Link TL-SL1226P compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. With extend mode, the PoE transmission distance reaches up to 250 m. Priority Mode and Isolation Mode make surveillance smoother and safer. Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on. With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission. It features 2× gigabit RJ45 ports and 2× combo gigabit SFP ports to ensure smooth streaming even when 24× HD IP cameras work simultaneously. When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. The TP-Link TL-SL1226P comes with a 1-year warranty.
