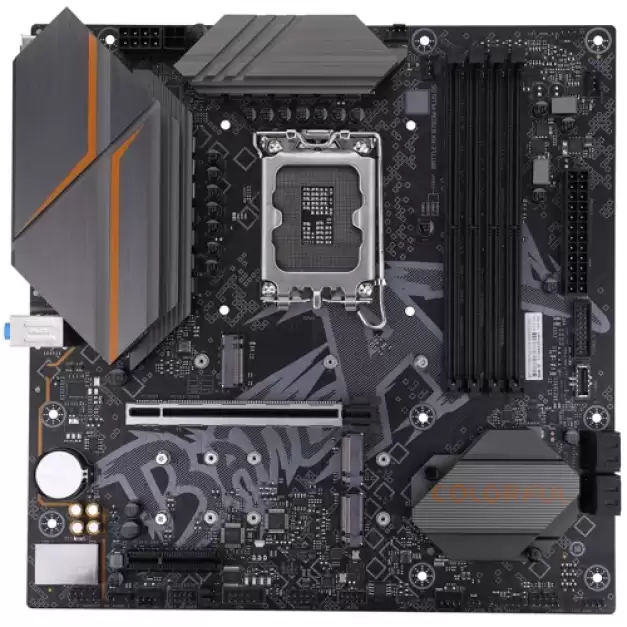

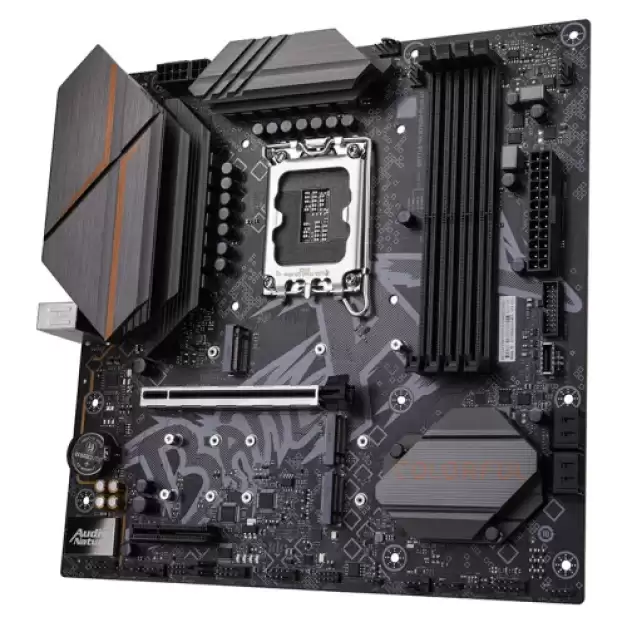

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard

PCI	1xPCIe 5.0 x16 slot 1xPCIe 3.0 x4 slot

Audio

5.1 Channel sound card

Supported CPU

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor

Chipset

Intel B760

BIOS	128M UEFI, supporting multiple languages

Form Factor

M-ATX 245mm x 245mm

Type

DDR5

Slot

4

Supported Memory

- DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology

Maximum Memory

up to 192 GB of memory (a single socket can support up to 48 GB of memory)

Graphics

Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution 1 x DP 1.2 interface, supporting up to 4K 60Hz resolution

Manufacturing Warranty

3 years

HDMI	1x HDMI 1x DisplayPort

LAN Port (s)

RTL8125 2.5Gbit network card

Supported Storage

A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

Internal I/O Ports

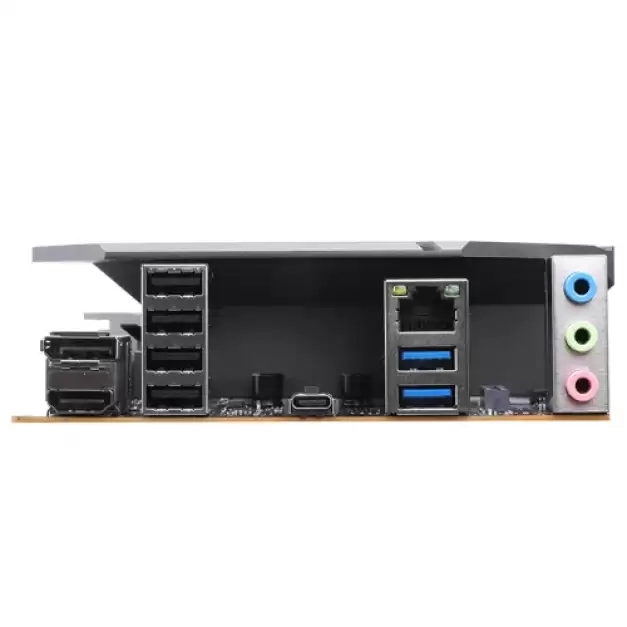

Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 2 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1 CPU fan pin - 3 system fan pins - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2 5V 3-pin ARGB pins - 2 12V 4-pin RGB pins - 1 Front audio pin - 1 Front panel pin - 1 speaker pin - 1 clear CMOS jumper - 1 serial port pin - 1 BIOS burner pin - 1 diagnostic card pin - 1 ME write protection jumper - 1 RGB lamp efficiency control jumper

Display Port (s)

1x DisplayPort

RAID	Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard

The colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard is a high-performance motherboard ideal for gamers. This motherboard supports 14th/13th/12th Gen Intel Processors (LGA1700) and has 4x DDR5 RAM slots with a maximum capacity of 192GB 6800(OC). With 1x HDMI and 1x DisplayPort, you may experience excellent visuals output. The motherboard also has an RTL8125 2.5Gbit network card for fast and dependable internet access. The BATTLE-AX series' specialized heat dissipation armor and 12+1+1 phase reinforced power supply assure efficient cooling and consistent power delivery. It has three PCIe 4.0 x4 M slots.2 SSD slots, one USB 3.2 Gen 2 Type-C port, and one USB 3.2 Gen 1 Type-A portA high-speed back interface allows for smooth data transfer. This motherboard provides a variety of networking choices thanks to its Realtek 2.5G high-speed wired network card and CNVI WiFi/BT socket. You may tune the lighting effects of the radiator, cooling fan, and RAM with support for the iGame Center light efficiency control software. The motherboard also has six protective technologies for increased stability and has been rigorously tested to assure high quality. The colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard will enhance your gaming experience.

Buy Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard From Basictech BD We have a large collection of the latest Colorful Motherboard to purchase for your Desktop PC. Order Online Or Visit Now Basictech BD Shop to get yours at the lowest price. The Colorful BATTLE-AX B760M-PLUS D5 V20 Motherboard comes with 3 years warranty.
