Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard

Qty
+ -
Expansion Slots
PCI 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot
Basic Information
Audio 5.1 Channel sound card
Supported CPU Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
Chipset Intel B760
BIOS 128M UEFI, supporting multiple languages
Form Factor M-ATX 245mm x 245mm
Memory Specifications
Type DDR4
Slot 4
Supported Memory - DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology
Maximum Memory 128 GB of memory (a single socket can support up to 32 GB of memory)
Graphics Specifications
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Warranty
Manufacturing Warranty 3 years
Connector & Ports
HDMI 1x HDMI
LAN Port (s) RTL8125 2.5Gbit network card
Supported Storage A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

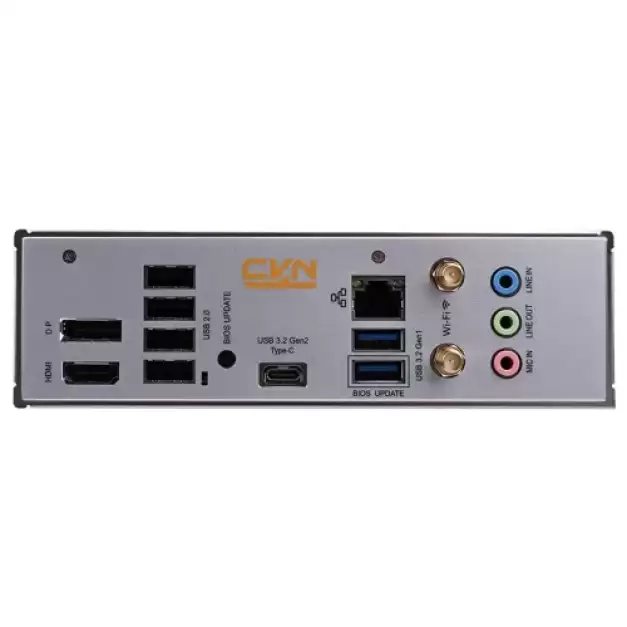

Internal I/O Ports Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×audio interfaces (audio input/audio output/microphone) - 1×BIOS update button On board device interface: - 1×CPU fan pin - 3×system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB light effect control jumper
Display Port (s) 1x DisplayPort
Wireless Communication module AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2
RAID See the official BIOS user guide of Colorful for the steps to create a RAID disk array

Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard

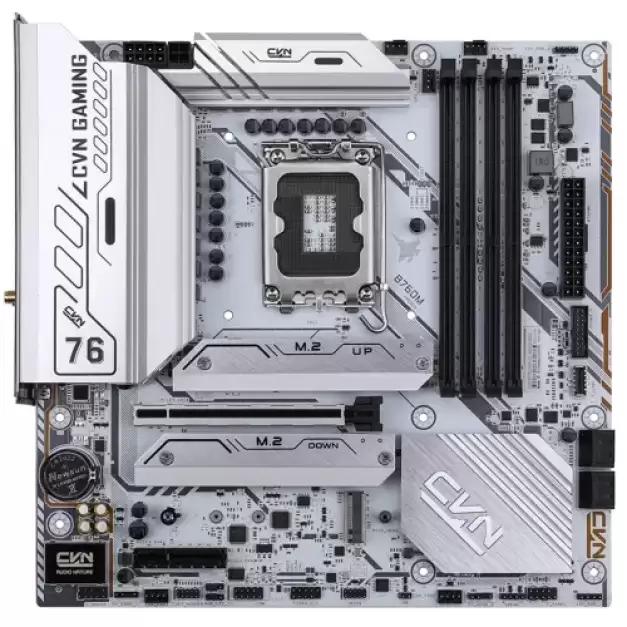

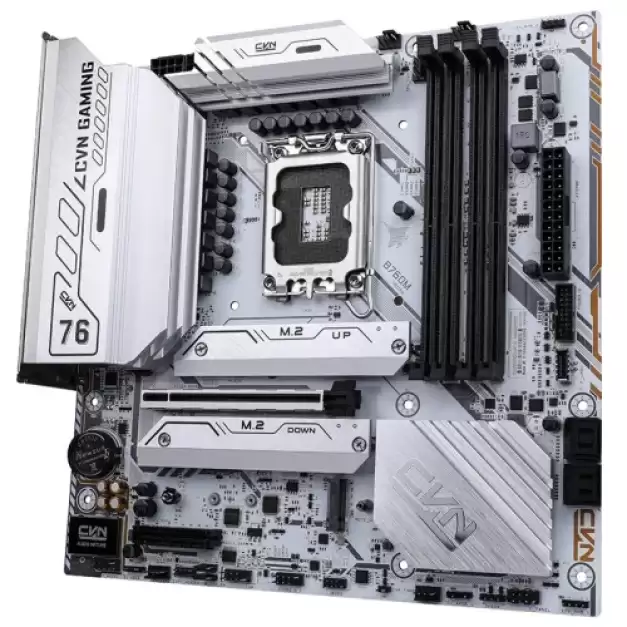

The Colorful CVN B760M FROZEN WIFI V20 Motherboard is a vivid and high-performance motherboard built for gaming fans and professionals looking for a stable and visually appealing system. This motherboard is part of the CVN series and features an original bespoke white design that adds a touch of beauty to your PC setup. The CVN series has frost cooling armor that envelops the motherboard with full-coverage condensing fins. This design is not only visually appealing, but it also improves heat dissipation, assuring ideal thermal performance during intense gaming or resource-demanding jobs. A 12+1 phase reinforced power supply and an F.C.C ferrite inductor (Dr MOS 55A) provide stability and efficiency. The motherboard includes three PCIe 4.0 x4 M.2 SSD slots for those that want high-speed storage options. There are two USB 3.2 Gen 1 Type-A high-speed rear ports and one USB 3.2 Gen 2 Type-C high-speed rear interface. With a Realtek 2.5G high-speed cable network card and an AX201/AX200 WiFi 6 wireless network card that supports Bluetooth 5.2 for smooth communication, the networking capabilities are excellent. The iGame Center light efficiency control software is supported by the motherboard, allowing users to synchronize and adjust the lighting effects of the radiator, cooling fan, and memory modules, resulting in a visually attractive gaming system. The I/O backplane supports one-click BIOS updates, which simplifies the process of keeping the motherboard's software up to date. Six protective methods provide a steady operation, protecting your components and increasing total system dependability. The CVN B760M assures quality and endurance with 200 well-verified procedures. The PCB atomization process has been vastly improved, boosting the motherboard's performance and endurance even more. The CVN B760M comes with "410" high-quality service and guaranteed after-sales support as a witness to the company's dedication to customer satisfaction, delivering a seamless and worry-free experience for consumers. This motherboard is intended to suit your performance, aesthetic, and reliability requirements, whether you're a gamer or a professional.

Buy Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original Colorful CVN B760M FROZEN WIFI V20 mATX Motherboard From Basictech BD. We have a large collection of the latest Colorful Motherboard to purchase for your Desktop PC. Order Online Or Visit Now Basictech BD  Shop to get yours at the lowest price. The Colorful CVN B760M FROZEN WIFI V20 Motherboard comes with 3 years warranty.
