Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard

PCI	1xPCIe 4.0 x16 slot 1xPCIe 3.0 x1 slot

Audio

5.1 Channel sound card

Supported CPU

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

Chipset

Intel B760

BIOS	128M UEFI, supporting multiple languages

Form Factor

M-ATX 240mm x 207mm

Type

DDR4

Slot

2

Supported Memory

- support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology

Maximum Memory

support up to 64 GB of memory (a single socket can support up to 32 GB of memory)

Graphics

Integrated Graphics Processor-Intel HD Graphics support: - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution

Manufacturing Warranty

3 years

HDMI

1x HDMI

LAN Port (s)

RTL8125 2.5G network card

Supported Storage

2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)

Internal I/O Ports

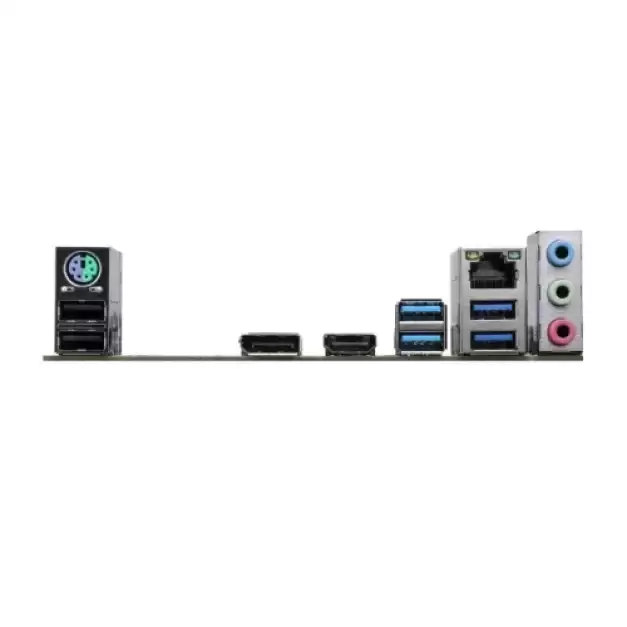

Rear I/O interface: - 1×PS/2 interface - 2×USB 2.0 interfaces - 4×USB 3.2 Gen 1 Type-A interfaces - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1×CPU fan pin - 2×system fan pins - 1×water cooling pump pin - 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces - 2×5V 3-pin ARGB pins - 1×front audio pin - 1×front panel pin - 1×speaker pin - 1×ME write protection jumper - 1×clear CMOS jumper - 1×BIOS burner pin - 1×POST card pin - 1×PS/2 call Wake up control jumper

VGA (s)

- 1×DP 1.2 interface

Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard

Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard you can immerse yourself in a world of bright gaming and content production. This high-performance motherboard is intended to meet the needs of both gamers and content makers. It is designed to accommodate 14th, 13th, and 12th Generation Intel Processors (LGA1700) and serves as a flexible platform for a variety of computing demands. The motherboard offers a strong and responsive system with two DDR4 slots supporting up to 64GB of RAM and overclocking capabilities of up to 4800MHz (OC). Experience stunning visuals with the graphics output options of 1 HDMI and 1 DisplayPort, while the 2.5G fast network card guarantees high-speed internet connectivity. Seamlessly connect your peripherals with 4 USB 3.2 Gen 1 Type-A and 2 USB 2.0 interfaces. The motherboard also prioritizes storage performance with 2 PCIe 4.0 x4 M.2 SSD slots. Customize your RGB lighting using the 5V 3-pin ARGB pins and the iGame Center light effect control program. Adjust the light efficiency of heat sinks, cooling fans, and memory in real time. Six protective technologies are included in the motherboard to provide stability and security. Quality is assured after 200 thorough tests, and the PCB atomization process has been completely updated, improving overall performance and longevity. The Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard is your ticket to a visually attractive and high-performing computing experience, whether you're pushing the limits in gaming or generating content that requires accuracy and speed.

Buy Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard From Star Tech. We have a large collection of the latest Colorful Motherboard to purchase for your Desktop PC. Order Online Or Visit Now Basictech BD Shop to get yours at the lowest price. The Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard comes with 3 years warranty.
